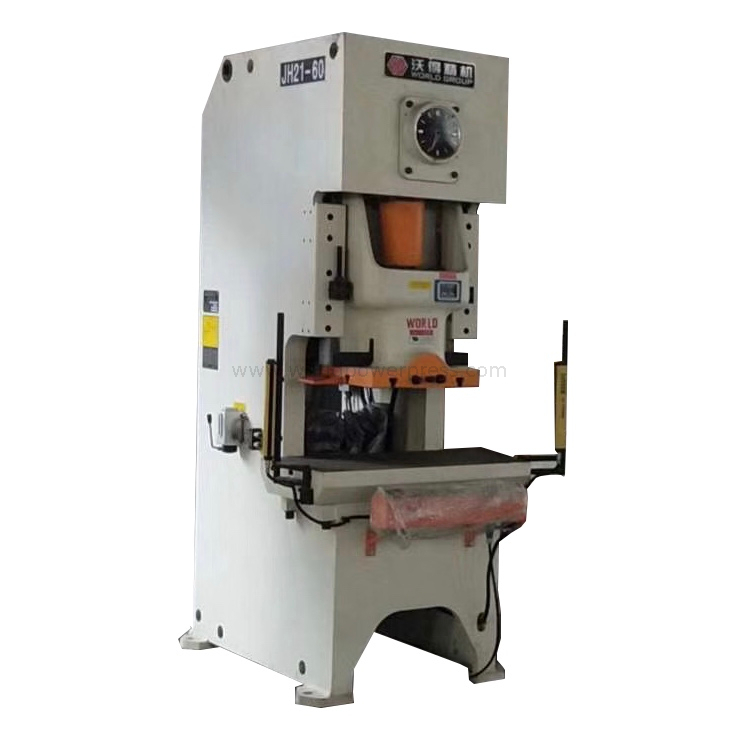

JH21-60
WORLD
- mechanical press with pneumatic clutch
- PLC control with HMI
- c type steel welded frame
- cross located crankshaft with bronze bush
- rectangular type ram gibs with high precision
| ITEM | CODE | UNIT | JH21-60 | |
| Nominal Capacity | Pe | KN | 600 | |
| Slide Stroke Length | S | mm | 140 | |
| Slide Strokes | Fixed | spm | 70 | |
| Variable (optional) | spm | 45-70 | ||
| Max. Shut Height | H2 | mm | 300 | |
| Shut Height Adjustment | t | mm | 70 | |
| Throat Depth | C1 | mm | 270 | |
| Distance Between Columns | d1 | mm | 560 | |
| Slide Bottom Size | F-B | b | mm | 400 |
| L-R | a | mm | 480 | |
| Shank Hole Size | Diameter | d | mm | 50 |
| Depth | I | mm | 70 | |
| Table Size | F-B | D | mm | 520 |
| L-R | C | mm | 930 | |
| Thickness | H3 | mm | 130 | |
| Table Hole Diameter | ¢ | mm | 150 | |
| Overall Dimensions | F-B | A | mm | 1540 |
| L-R | B | mm | 1200 | |
| Height | H | mm | 2470 | |
| Motor Power | KW | 5.5 | ||
| Weight (approximate) | kg | 5150 | ||
- mechanical press with pneumatic clutch
- PLC control with HMI
- c type steel welded frame
- cross located crankshaft with bronze bush
- rectangular type ram gibs with high precision
| ITEM | CODE | UNIT | JH21-60 | |
| Nominal Capacity | Pe | KN | 600 | |
| Slide Stroke Length | S | mm | 140 | |
| Slide Strokes | Fixed | spm | 70 | |
| Variable (optional) | spm | 45-70 | ||
| Max. Shut Height | H2 | mm | 300 | |
| Shut Height Adjustment | t | mm | 70 | |
| Throat Depth | C1 | mm | 270 | |
| Distance Between Columns | d1 | mm | 560 | |
| Slide Bottom Size | F-B | b | mm | 400 |
| L-R | a | mm | 480 | |
| Shank Hole Size | Diameter | d | mm | 50 |
| Depth | I | mm | 70 | |
| Table Size | F-B | D | mm | 520 |
| L-R | C | mm | 930 | |
| Thickness | H3 | mm | 130 | |
| Table Hole Diameter | ¢ | mm | 150 | |
| Overall Dimensions | F-B | A | mm | 1540 |
| L-R | B | mm | 1200 | |
| Height | H | mm | 2470 | |
| Motor Power | KW | 5.5 | ||
| Weight (approximate) | kg | 5150 | ||
