GLL

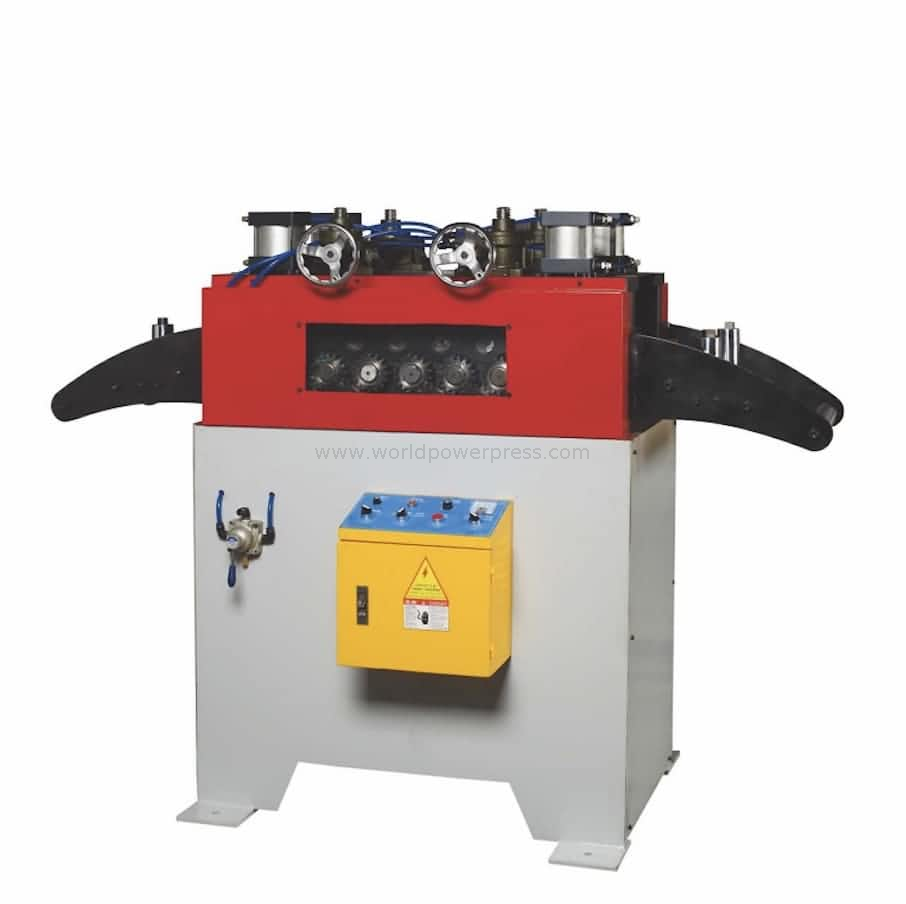

-suitable for straigthtening metal sheet thickness 1-6mm
-stronger straightening rollers
-drive by 3 phases motor
-straighening roller gap is adjusted by synchronous worm gear system
-4pcs pneumatic cylinders to press the metal strip for better straightening performance
| Model No | GLL-200A | GLL-300A | GLL-400A | GLL-500A | GLL-600A |
| Material thickness | 1-6mm | 1-6mm | 1-6mm | 1-6mm | 1-6mm |
| Material width | 200mm | 300mm | 400mm | 500mm | 600mm |
| Straightener roller | Upper 3/lower 4 | Upper 3/lower 4 | Upper 3/lower 4 | Upper 3/lower 4 | Upper 3/lower 4 |
| Feeding roller | 4set | 4set | 4set | 4set | 4set |
| Straightening speed | 15m/min | 15m/min | 15m/min | 15m/min | 15m/min |
| Straightening part adjustment | synchronous worm gear device | synchronous worm gear device | synchronous worm gear device | synchronous worm gear device | synchronous worm gear device |
-suitable for straigthtening metal sheet thickness 1-6mm
-stronger straightening rollers
-drive by 3 phases motor
-straighening roller gap is adjusted by synchronous worm gear system
-4pcs pneumatic cylinders to press the metal strip for better straightening performance
| Model No | GLL-200A | GLL-300A | GLL-400A | GLL-500A | GLL-600A |
| Material thickness | 1-6mm | 1-6mm | 1-6mm | 1-6mm | 1-6mm |
| Material width | 200mm | 300mm | 400mm | 500mm | 600mm |
| Straightener roller | Upper 3/lower 4 | Upper 3/lower 4 | Upper 3/lower 4 | Upper 3/lower 4 | Upper 3/lower 4 |
| Feeding roller | 4set | 4set | 4set | 4set | 4set |
| Straightening speed | 15m/min | 15m/min | 15m/min | 15m/min | 15m/min |
| Straightening part adjustment | synchronous worm gear device | synchronous worm gear device | synchronous worm gear device | synchronous worm gear device | synchronous worm gear device |
