NCF
-Automaitc coil feeding machine for press line
-PLC control with HMI (7” LCD touch screen, English/Chinese versions).
-Servo motor drive.

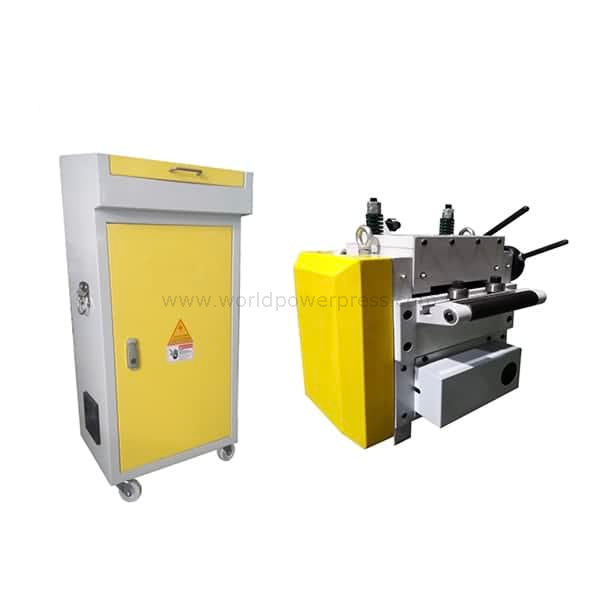

-Feeding head with movable control electric cabinet.
-Rollers surface chrome plated, hardness HRC60.
-Manual and automatic feeding modes.
-Feeding precision 0.03mm, feeding speed 1-20m/min.
-Can set the feeding pitch, feeding speed, and feeding steps through the HMI.
-Can match the press to accept the feeding and release signals.
-Pneumatic release and mechanical release optional.
-Standard with mounting plate to fix on press table.
-Height adjustable support bracket is optional.
-CE mark.
Model No | NCF-100 | NCF-200 | NCF-300 | NCF-400 |
Material thickness | 0.2-3.2mm | 0.2-3.2mm | 0.2-3.2mm | 0.2-3.2mm |
Max. Material width | 100mm | 200mm | 300mm | 400mm |
Max. Feeding length | 9999mm | 9999mm | 9999mm | 9999mm |
Feeding speed | 1-20m/min | 1-20m/min | 1-20m/min | 1-20m/min |
PLC | Mitsubishi | Mitsubishi | Mitsubishi | Mitsubishi |
Servo motor | Yaskawa 1.3kW | Yaskawa 1.3kW | Yaskawa 1.3kW | Yaskawa 1.8kW |
Release type | Mechanical | Pneumatic | Pneumatic | Pneumatic |
Model No | NCF-500 | NCF-600 | NCF-700 | NCF-800 |
Material thickness | 0.2-3.2mm | 0.2-3.2mm | 0.2-3.2mm | 0.2-3.2mm |
Max. Material width | 500mm | 600mm | 700mm | 800mm |
Max. Feeding length | 9999mm | 9999mm | 9999mm | 9999mm |
Feeding speed | 1-20m/min | 1-20m/min | 1-20m/min | 1-20m/min |
PLC | Mitsubishi | Mitsubishi | Mitsubishi | Mitsubishi |
Servo motor | Yaskawa 1.8kW | Yaskawa 1.8kW | Yaskawa 2.9kW | Yaskawa 2.9kW |
Release type | Mechanical | Pneumatic | Pneumatic | Pneumatic |
