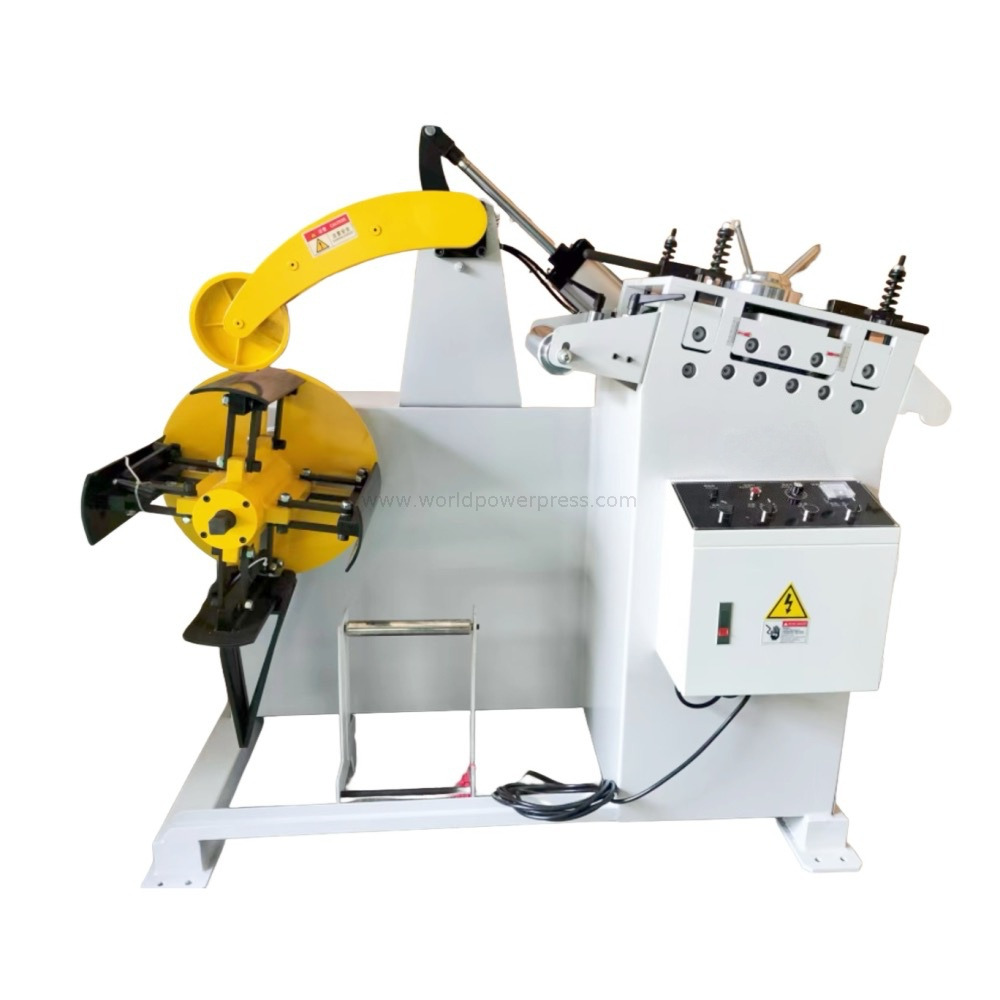

UL(A)
-All rollers are heat treatment and chrome plated. Surface hardness HRC60-62.
-Optimized structure, uncoiling and straightening machines are combined.
-Straightener roller gap is adjusted by 4pcs manual wheels. Each wheel is operated separately with ruler.
-Coil hold arm is optional.
-Optional inverter for adjustable speed 1-15m/min.
-Manual expansion system is standard, hydraulic expansion is optional.
-Standard with 4pcs A arms to fix the coil on the mandrel.
-CE mark
Model No | UL-200A | UL-300A | UL-400A | UL-500A | UL-600A |
Material thickness | 0.5-3mm | 0.5-3mm | 0.5-3mm | 0.5-3mm | 0.5-3mm |
Material width | 200mm | 300mm | 400mm | 500mm | 600mm |
Straightener roller | Upper 3/lower 4 | Upper 3/lower 4 | Upper 3/lower 4 | Upper 3/lower 4 | Upper 3/lower 4 |
Feeding roller | 4 sets | 4 sets | 4 sets | 4 sets | 4 sets |
Straightening speed | 15m/min | 15m/min | 15m/min | 15m/min | 15m/min |
Straightening roller gap adjustment | 4 manual wheels | 4 manual wheels | 4 manual wheels | 4 manual wheels | 4 manual wheels |
Coil inner diameter | ∅450-530mm | ∅450-530mm | ∅450-530mm | ∅450-530mm | ∅450-530mm |
Coil outer diameter | ∅1200mm | ∅1200mm | ∅1200mm | ∅1200mm | ∅1200mm |
Coil weight | 500kg | 1000kg | 1000kg | 2000kg | 3000kg |
Coil press arm/hold arm | optional | optional | optional | optional | optional |
Expansion method | manual | manual | manual | manual | manual |
Motor power | 0.75kW | 1.5kW | 1.5kW | 2.2kW | 2.2kW |
Thickness | UL-200A | UL-300A | UL-400A | UL-500A | UL-600A |
0.5-1.0mm | 200 | 300 | 400 | 500 | 600 |
1.5mm | 180 | 260 | 360 | 410 | 520 |
2.0mm | 130 | 180 | 240 | 320 | 330 |
2.5mm | 90 | 130 | 150 | 180 | 210 |
3.0mm | 50 | 80 | 100 | 120 | 130 |
-All rollers are heat treatment and chrome plated. Surface hardness HRC60-62.
-Optimized structure, uncoiling and straightening machines are combined.
-Straightener roller gap is adjusted by 4pcs manual wheels. Each wheel is operated separately with ruler.
-Coil hold arm is optional.
-Optional inverter for adjustable speed 1-15m/min.
-Manual expansion system is standard, hydraulic expansion is optional.
-Standard with 4pcs A arms to fix the coil on the mandrel.
-CE mark
Model No | UL-200A | UL-300A | UL-400A | UL-500A | UL-600A |
Material thickness | 0.5-3mm | 0.5-3mm | 0.5-3mm | 0.5-3mm | 0.5-3mm |
Material width | 200mm | 300mm | 400mm | 500mm | 600mm |
Straightener roller | Upper 3/lower 4 | Upper 3/lower 4 | Upper 3/lower 4 | Upper 3/lower 4 | Upper 3/lower 4 |
Feeding roller | 4 sets | 4 sets | 4 sets | 4 sets | 4 sets |
Straightening speed | 15m/min | 15m/min | 15m/min | 15m/min | 15m/min |
Straightening roller gap adjustment | 4 manual wheels | 4 manual wheels | 4 manual wheels | 4 manual wheels | 4 manual wheels |
Coil inner diameter | ∅450-530mm | ∅450-530mm | ∅450-530mm | ∅450-530mm | ∅450-530mm |
Coil outer diameter | ∅1200mm | ∅1200mm | ∅1200mm | ∅1200mm | ∅1200mm |
Coil weight | 500kg | 1000kg | 1000kg | 2000kg | 3000kg |
Coil press arm/hold arm | optional | optional | optional | optional | optional |
Expansion method | manual | manual | manual | manual | manual |
Motor power | 0.75kW | 1.5kW | 1.5kW | 2.2kW | 2.2kW |
Thickness | UL-200A | UL-300A | UL-400A | UL-500A | UL-600A |
0.5-1.0mm | 200 | 300 | 400 | 500 | 600 |
1.5mm | 180 | 260 | 360 | 410 | 520 |
2.0mm | 130 | 180 | 240 | 320 | 330 |
2.5mm | 90 | 130 | 150 | 180 | 210 |
3.0mm | 50 | 80 | 100 | 120 | 130 |
