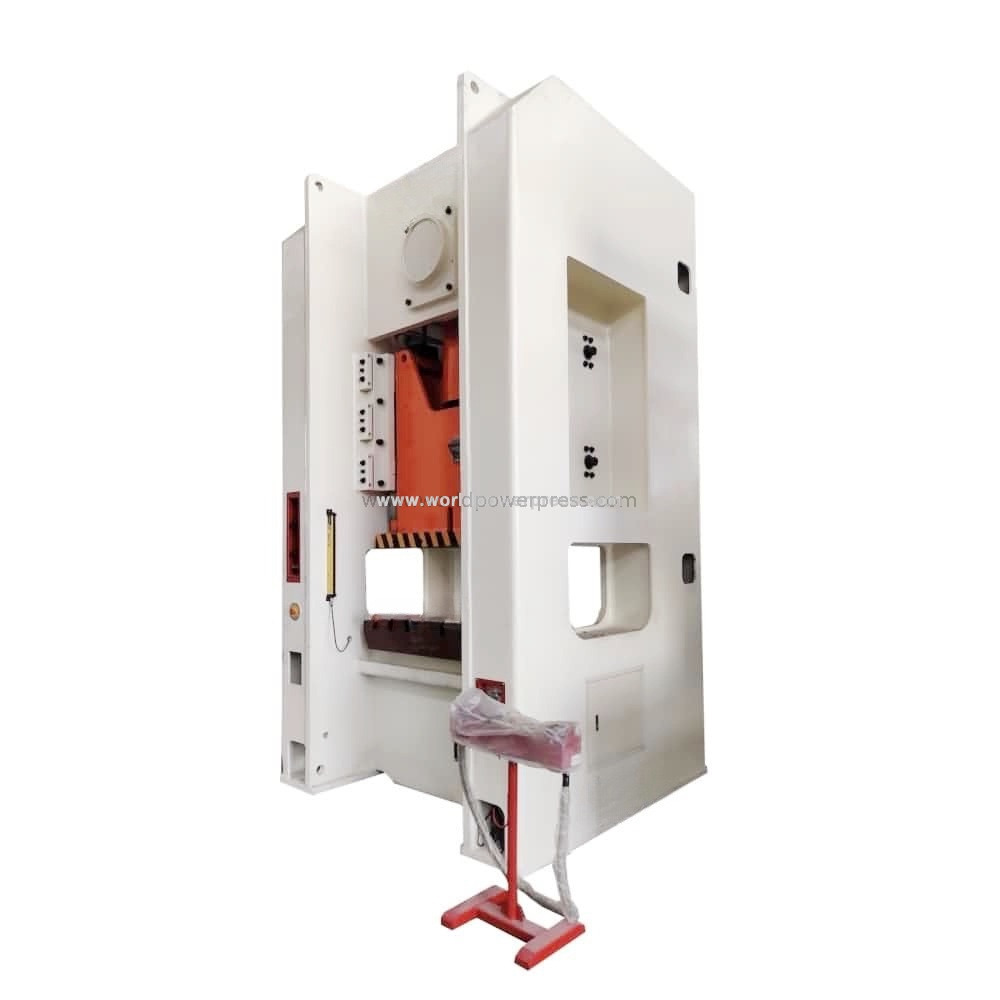

Hinge Plates Cutting And Punching H Frame Press Machine

Name: Hinge Plates Cutting And Punching H Frame Press Machine
Brand: WORLD
Rating: 5.0 (70 reviews)

JW31-400 is a 400 ton crank type single point straight side press. This press adopts wet type pneumatic clutch and PLC control. If conforms to CE safety standard.

Availability:

Quantity:



Inquire Add to Basket

Model:
JW31-400
Brand:
WORLD

Product Description

H frame punching press machine for hinge plates cutting

-eight faces rectangular type guide rails, higher precision

-PLC control with HMI, English control panel

-Wet type pneumatic clutch and brake, fricition discs are oil bath inside the flywheel

-Safety solienoid valve to control the clutch

-Mechanical cam controller with rotary encoder

-With anti-vibration mounting pads

400 ton h frame press machine technical parameters

ITEM		CODE	UNIT	JW31-400
Nominal Capacity		Pe	KN	4000
Slide Stroke		s	mm	250
Slide Stroke Speed	Fixed	n	spm	25
Slide Stroke Speed	Variable (optional)	n	spm	20-30
Max.Die Shut Height		H2	mm	600
Die Shut Height Adjustment		t	mm	120
Side Window Size	F-B	E	mm	900
Side Window Size	Height	F	mm	520
Distance Between Uprights		G	mm	1450
Table Size	F-B	D	mm	900
	L-R	C	mm	1350
	Thickness	H3	mm	200
Table Hole Diameter			mm	220
Slide Bottom Size	F-B	b	mm	850
Slide Bottom Size	L-R	a	mm	1100
Table Surface Height		H1	mm	1090
Overall Dimensions	F-B	A	mm	2690
	L-R	B	mm	2480
	Height	H	mm	4960
Motor Power			KW	37
Weight (approximate)			kg	36500
