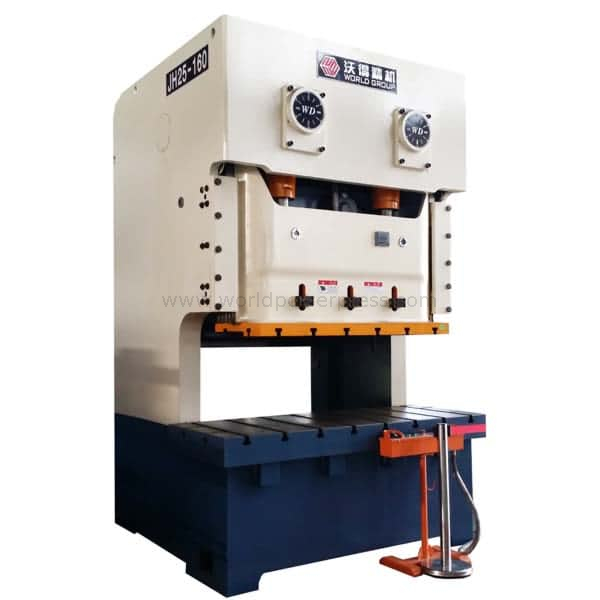

JH25-160
WORLD
-double crankshafts cross located
-wide bolster for progressive die stamping
-two power points, small deflection
-PLC control, wet type pneumatic clutch
-Automaitc grease lubrication
| ITEM | CODE | UNIT | JH25-160 | |
| Nominal Capacity | Pe | KN | 1600 | |
| Stroke Length | S | mm | 200 | |
| Stroke Speed | Fixed | spm | 45 | |
| Variable (optional) | spm | 35-55 | ||
| Max. Die Shut Height | H2 | mm | 450 | |
| Die Shut Height Adjustment | t | mm | 100 | |
| Throat Depth | G | mm | 390 | |
| Distance Between Uprights | N | mm | 1600 | |
| Table Size | F-B | D | mm | 760 |
| L-R | C | mm | 2040 | |
| Thickness | H3 | mm | 165 | |
| Slide Bottom Size | F-B | b | mm | 580 |
| L-R | a | mm | 1500 | |
| Table Surface Height | H1 | mm | 900 | |
| Overall Dimensions | F-B | A | mm | 2080 |
| L-R | B | mm | 2150 | |
| Height | H | mm | 3380 | |
| Motor Power | KW | 18.5 | ||
| Weight (approximate) | kg | 19000 | ||
