J23 Eccentric Crank Type Punching Press

J23 eccentric punching machine is a general type mechanical power press. Casting iron body with inclinable working table. Left to right located crankshaft, mechanical rigid rolling key clutch and band type brake, v type ram gibs, manual ram adjustment, shearing plate inside the ram for overload protection. This punching press has capacity from 6.3ton to 125ton. J23 mechanical press is suitable for small parts punching and hot forging as well.
Availability:
Quantity:
Inquire Add to Basket

  • J23

  • WORLD

Casting iron body with heat treatment

The eccentric press adopts casting iron body. Two casting legs support the body, connected with two strong bolts. Body can be incliable for some angles for easy dropping the stamping parts and the scraps. World precise machinery produces the casting parts in his own factory. Grey iron casting with sand and resin.

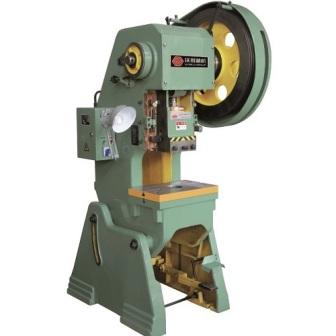

small eccentric press

6.3t-16t small press
medium size eccentric press

25t-63t medium size press

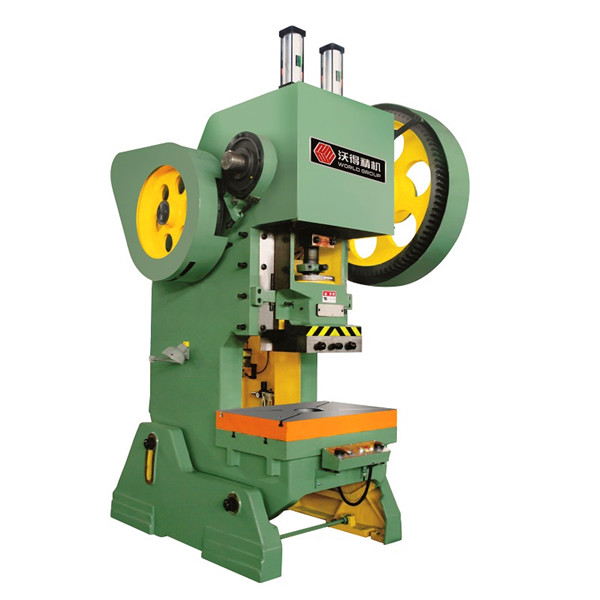

big size eccentric press with slide balance cylinder

80t-125t press with balance cylinder


Mechanical rolling key type clutch

Small press is operated by foot pedal with mechanical control system, such as 6.3ton, 10ton and 16ton. Both foot pedal and two-hand button control are available for 25ton and bigger size punch presses.

Slide balance cylinder for 80ton and bigger sizes eccentric presses

Two slide balance cylinders on the top to balance the weight of press ram and the upper tool. Press can move more stable.


J23 eccentric press dimensions

ITEMS UNIT J23-6.3 J23-10 J23-16 J23-25 J23-35 J23-40
Capacity KN 63 100 160 250 350 400
Nominal stroke mm 2 2 2 2.5 3.5 6
Slide stroke length mm 35 45 55 65 80 90
Stroke times per minute spm 170 145 125 55 50 45
Max. Die set height mm 150 180 220 270 290 320
Die shut height adjustment mm 30 35 45 55 60 65
Throat depth mm 110 130 160 200 220 250
Distance between uprights mm 150 180 220 270 280 340
Slide bottom size L-R mm 140 170 200 250 250 300
F-B mm 120 150 180 220 220 260
Stemhole size Diameter mm 30 30 40 40 40 50
Depth mm 55 55 60 60 60 70
Bolster size L-R mm 310 370 450 560 610 700
F-B mm 200 240 300 370 400 460
Thickness mm 30 35 40 50 60 65
Table hole diameter mm 60 80 100 120 130 150
Max. inclinable angle ° 45 35 35 30 30 30
Bolster surface height mm 750 730 750 800 815 850
Over all dimensions L-R mm 620 665 847 950 1058 1335
F-B mm 780 900 1150 1345 1460 1721
Height mm 1503 1658 1910 2130 2225 2488
Distance between foundation bolts L-R mm 314 394 450 600 650 750
F-B mm 530 610 780 920 1020 1060
Motor power kw 0.75 1.1 1.5 2.2 4 5.5
Weight kg 400 576 1085 1780 2650 3540
ITEMS UNIT J23-63 JB23-63 J23-80 J23-100 J23-125
Nominal capacity KN 630 630 800 1000 1250
Nominal stroke mm 6 7 7 7 8
Slide stroke length mm 110 110 120 140 150
Stroke times per minute times 50 40 38 38 38
Max. die set height mm 360 390 440 480 500
Die height adjustment mm 80 80 90 100 100
Throat depth mm 260 310 350 380 390
Distance between uprights mm 350 420 450 560 550
Slide bottom size L-R mm 300 400 430 540 540
F-B mm 260 360 360 480 480
Stemhole size Diameter mm 50 50 60 60 60
Depth mm 70 70 75 75 75
Bolster size L-R mm 760 860 950 1080 1100
F-B mm 480 570 650 710 720
Thickness mm 80 80 100 120 130
Table hole diameter mm 180 180 200 220 240
Max. inclinable angle ° 20 20 20 15 13
Bolster surface height mm 810 850 850 850 860
Over all dimensions L-R mm 1350 1500 1715 1790 1790
F-B mm 1810 1958 2060 2404 2504
Height mm 2740 2868 3290 3625 3715
Distance between foundation bolts L-R mm 850 920 1010 1130 1110
F-B mm 1180 1300 1360 1550 1710
Motor power kw 5.5 7.5 7.5 11 11
Weight kg 4550 5500 7390 10800 12035
