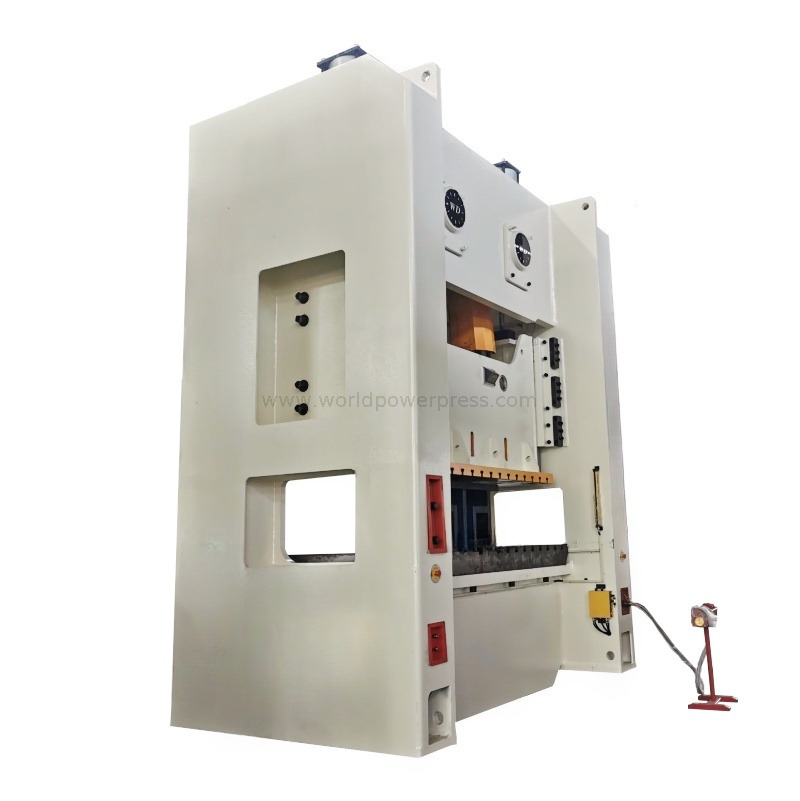

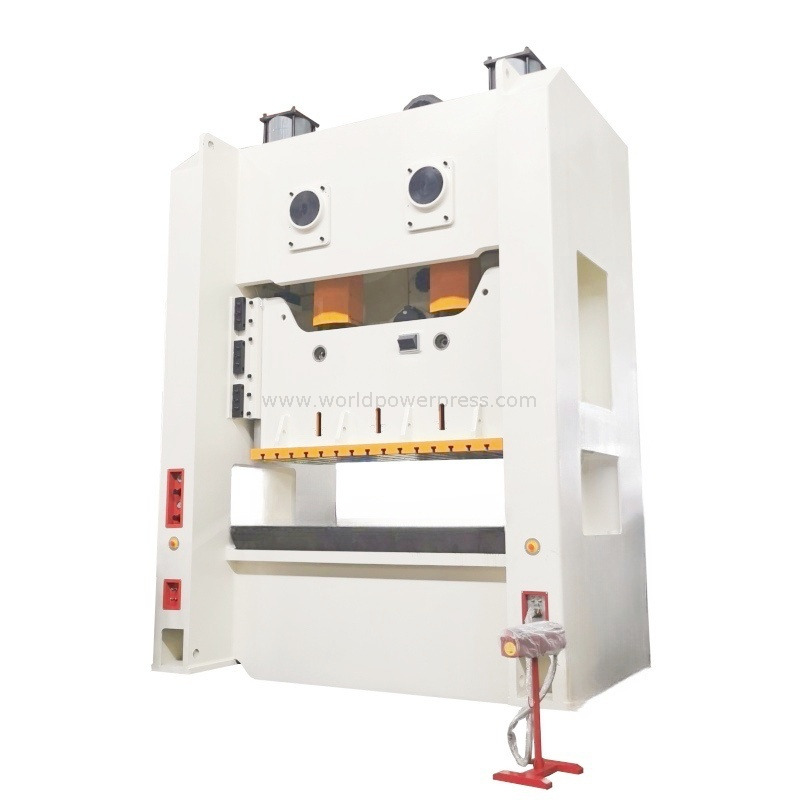

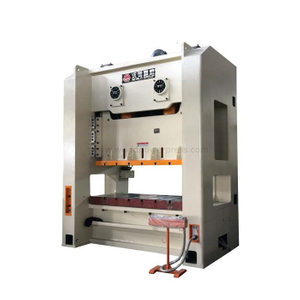

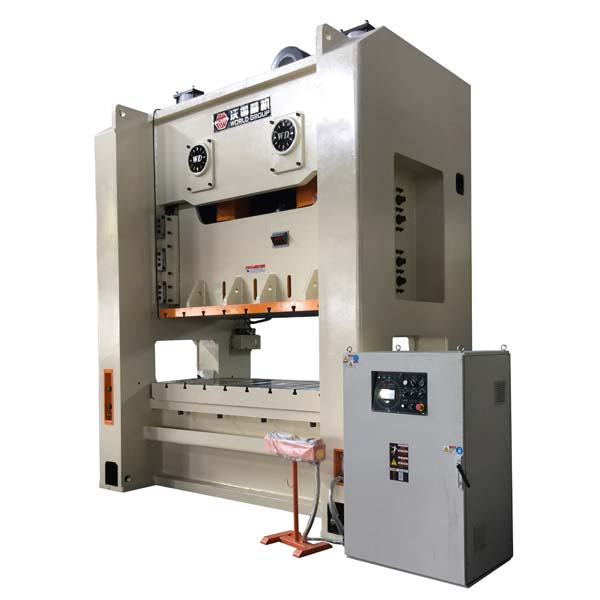

JW36 H Frame Double Crank Power Press Machine

Name: JW36 H Frame Double Crank Power Press Machine
Brand: WORLD
Rating: 5.0 (64 reviews)

Mono block type JW36 series straight side two points power presses have capacity range from 110ton to 630ton. The press big size working table is suitable for progressive die and multi-station die. This crank type press is widely used for house hold appliance parts stamping, tin can making and kitchen sinks production. severtal units two points automatic power presses can work with coil feeder and transfer bars for full automatic stamping line.

Availability:

Quantity:


Inquire Add to Basket

Model:
JW36
Brand:
WORLD

High quality gear transmission system for straight side press

Weled type big twin gears, higher strength.
Gear grinding
High torque oil bath wet type clutch
More gears transmission to extend the distance between two crankshafts. Customizable design for bigger table to match big size progressive dies and multi-stations stamping tools.

High precision: better than power press precision standard JIS-I

Eight faces ram gibs
Lengthened bronze slide plates
Anti-deviated load bolts for ram guide gap adjustment
Press body annealing treatment, machining by high quality milling center

Safety for operation

The press machine is standard equip with hydraulic overload protection system
Dual safety solenoid valve for the clutch and brake
Emmergency stop buttons on T stand and press back
Light barriers and die safety block are optional

Automatic crank press console

Movable T stand with two-hand mushroom buttons and ram adjusting switch
LCD touch screen on the HMI
Fixed type HMI and movable electric box are selectable
Opetator can check the working status from the screen
Faults alarm and solutions could be shown on the screen

Double Crank Press world precise machinery h frame crank press machine straight side crank press two point crank press crank press machine crank type pneumatic press crank type power press crank type press machine eccentric crank press

ITEM		CODE	UNIT	JW36-110	JW36-160	JW36-200	JW36-250
Nominal Capacity			KN	1100	1600	2000	2500
Slide Stroke Length		S	mm	180	200	250	280
Rated Tonnage Point			mm	5	6	7	7
Slide Stroke Speed	Fixed		spm	50	45	35	30
Slide Stroke Speed	Variable (optional)		spm	35-60	35-55	25-40	20-35
Max. Die Shut Height		H2	mm	400	450	500	550
Die Shut Height Adjustment		t	mm	90	100	110	120
Side Window Size	F-B	E	mm	650	800	900	950
Side Window Size	Height	F	mm	350	400	450	460
Distance Between Uprights		G	mm	1750	1900	2290	2570
Table Size	F-B	D	mm	700	760	900	1000
	L-R	C	mm	1650	1800	2200	2500
	Thickness	H3	mm	140	150	170	180
Slide Bottom Size	F-B	b	mm	600	700	800	900
Slide Bottom Size	L-R	a	mm	1350	1500	1900	2200
Table Surface Height (with pads)		H1	mm	1035	1035	1135	1235
Overall Dimensions	F-B	A	mm	1900	2300	2550	2650
	L-R	B	mm	2600	2700	3200	3600
	Height	H	mm	3900	4000	4400	4800
Motor Power			KW	11	18.5	22	30
Air Pressure			Mpa	0.5	0.5	0.5	0.5
Weight (approximate)			kg	18000	21500	31500	39000

ITEM		CODE	UNIT	JW36-315	JW36-400	JW36-500	JW36-630
Nominal Capacity			KN	3150	4000	5000	6300
Slide Stroke Length		S	mm	280	300	300	300
Rated Tonnage Point			mm	7	8	8	8
Slide Stroke Speed	Fixed		spm	30	20	20	20
Slide Stroke Speed	Variable (optional)		spm	20-35	15-25	15-25	15-25
Max. Die Shut Height		H2	mm	550	600	650	650
Die Shut Height Adjustment		t	mm	120	130	130	130
Side Window Size	F-B	E	mm	950	1000	1100	1200
Side Window Size	Height	F	mm	460	550	600	650
Distance Between Uprights		G	mm	2570	2810	3200	3350
Table Size	F-B	D	mm	1000	1100	1200	1300
	L-R	C	mm	2500	2700	3000	3100
	Thickness	H3	mm	190	200	210	220
Slide Bottom Size	F-B	b	mm	900	1000	1100	1200
Slide Bottom Size	L-R	a	mm	2200	2400	2700	2800
Table Surface Height		H1	mm	1285	1340	1400	1580
Overall Dimensions	F-B	A	mm	2750	3250	3450	4000
	L-R	B	mm	3600	3850	4350	4550
	Height	H	mm	4900	5600	6100	5850
Motor Power			KW	37	45	55	75
Air Pressure			Mpa	0.5	0.5	0.5	0.5
Weight (approximate)			kg	41500	54000	75500	97000

ITEM		CODE	UNIT	JW36-110	JW36-160	JW36-200	JW36-250
Nominal Capacity			KN	1100	1600	2000	2500
Slide Stroke Length		S	mm	180	200	250	280
Rated Tonnage Point			mm	5	6	7	7
Slide Stroke Speed	Fixed		spm	50	45	35	30
Slide Stroke Speed	Variable (optional)		spm	35-60	35-55	25-40	20-35
Max. Die Shut Height		H2	mm	400	450	500	550
Die Shut Height Adjustment		t	mm	90	100	110	120
Side Window Size	F-B	E	mm	650	800	900	950
Side Window Size	Height	F	mm	350	400	450	460
Distance Between Uprights		G	mm	1750	1900	2290	2570
Table Size	F-B	D	mm	700	760	900	1000
	L-R	C	mm	1650	1800	2200	2500
	Thickness	H3	mm	140	150	170	180
Slide Bottom Size	F-B	b	mm	600	700	800	900
Slide Bottom Size	L-R	a	mm	1350	1500	1900	2200
Table Surface Height (with pads)		H1	mm	1035	1035	1135	1235
Overall Dimensions	F-B	A	mm	1900	2300	2550	2650
	L-R	B	mm	2600	2700	3200	3600
	Height	H	mm	3900	4000	4400	4800
Motor Power			KW	11	18.5	22	30
Air Pressure			Mpa	0.5	0.5	0.5	0.5
Weight (approximate)			kg	18000	21500	31500	39000

ITEM		CODE	UNIT	JW36-315	JW36-400	JW36-500	JW36-630
Nominal Capacity			KN	3150	4000	5000	6300
Slide Stroke Length		S	mm	280	300	300	300
Rated Tonnage Point			mm	7	8	8	8
Slide Stroke Speed	Fixed		spm	30	20	20	20
Slide Stroke Speed	Variable (optional)		spm	20-35	15-25	15-25	15-25
Max. Die Shut Height		H2	mm	550	600	650	650
Die Shut Height Adjustment		t	mm	120	130	130	130
Side Window Size	F-B	E	mm	950	1000	1100	1200
Side Window Size	Height	F	mm	460	550	600	650
Distance Between Uprights		G	mm	2570	2810	3200	3350
Table Size	F-B	D	mm	1000	1100	1200	1300
	L-R	C	mm	2500	2700	3000	3100
	Thickness	H3	mm	190	200	210	220
Slide Bottom Size	F-B	b	mm	900	1000	1100	1200
Slide Bottom Size	L-R	a	mm	2200	2400	2700	2800
Table Surface Height		H1	mm	1285	1340	1400	1580
Overall Dimensions	F-B	A	mm	2750	3250	3450	4000
	L-R	B	mm	3600	3850	4350	4550
	Height	H	mm	4900	5600	6100	5850
Motor Power			KW	37	45	55	75
Air Pressure			Mpa	0.5	0.5	0.5	0.5
Weight (approximate)			kg	41500	54000	75500	97000
