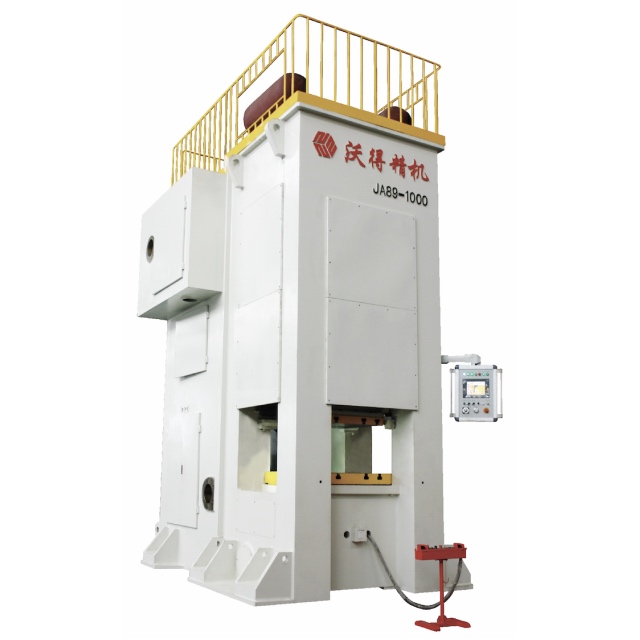

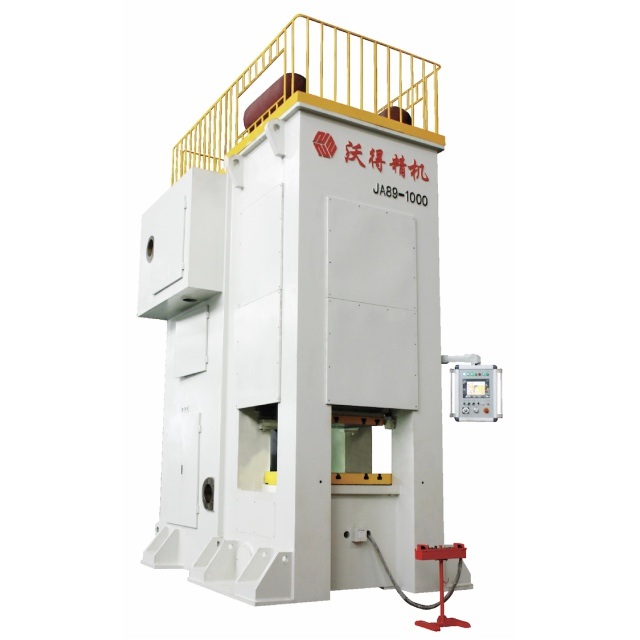

JA89
WORLD
. Special toggle rod structure, wide application areas
.High rigidity strong frame
.Multi-station ejection system
.Wet clutch
.Thin oil lubrication system
| Parameters | JA89-400 | JA89-630 | JA89-800 | JA89-1000 | JA89-1250 | ||
| Nominal Capacity | KN | 4000 | 6300 | 8000 | 10000 | 12500 | |
| Tonnage Point | mm | 7 | 7 | 10 | 12 | 13 | |
| Stroke Length | mm | 200 | 220 | 250 | 210 | 250 | |
| Speed | Fixed | min-1 | 40 | 35 | 30 | 25 | 20 |
| Variable | min-1 | 30-50 | 30-40 | 25-35 | 20-30 | 15-25 | |
| Max. Die Shut Height | mm | 450 | 500 | 550 | 600 | 650 | |
| Shut Height Adjustment | mm | 50 | 50 | 50 | 50 | 50 | |
| Slide Size | mm | 800*600 | 900*800 | 1000*900 | 1000*900 | 1200*1000 | |
| Table Size | mm | 800*600 | 900*800 | 1000*900 | 1000*900 | 1200*1000 | |
| Table Thickness | mm | 130 | 150 | 150 | 160 | 200 | |
| Motor Power | KW | 37 | 55 | 75 | 110 | 132 | |
| Air Pressure | MPa | ≥0.55 | |||||
. Special toggle rod structure, wide application areas
.High rigidity strong frame
.Multi-station ejection system
.Wet clutch
.Thin oil lubrication system
| Parameters | JA89-400 | JA89-630 | JA89-800 | JA89-1000 | JA89-1250 | ||
| Nominal Capacity | KN | 4000 | 6300 | 8000 | 10000 | 12500 | |
| Tonnage Point | mm | 7 | 7 | 10 | 12 | 13 | |
| Stroke Length | mm | 200 | 220 | 250 | 210 | 250 | |
| Speed | Fixed | min-1 | 40 | 35 | 30 | 25 | 20 |
| Variable | min-1 | 30-50 | 30-40 | 25-35 | 20-30 | 15-25 | |
| Max. Die Shut Height | mm | 450 | 500 | 550 | 600 | 650 | |
| Shut Height Adjustment | mm | 50 | 50 | 50 | 50 | 50 | |
| Slide Size | mm | 800*600 | 900*800 | 1000*900 | 1000*900 | 1200*1000 | |
| Table Size | mm | 800*600 | 900*800 | 1000*900 | 1000*900 | 1200*1000 | |
| Table Thickness | mm | 130 | 150 | 150 | 160 | 200 | |
| Motor Power | KW | 37 | 55 | 75 | 110 | 132 | |
| Air Pressure | MPa | ≥0.55 | |||||
