JH21
WORLD

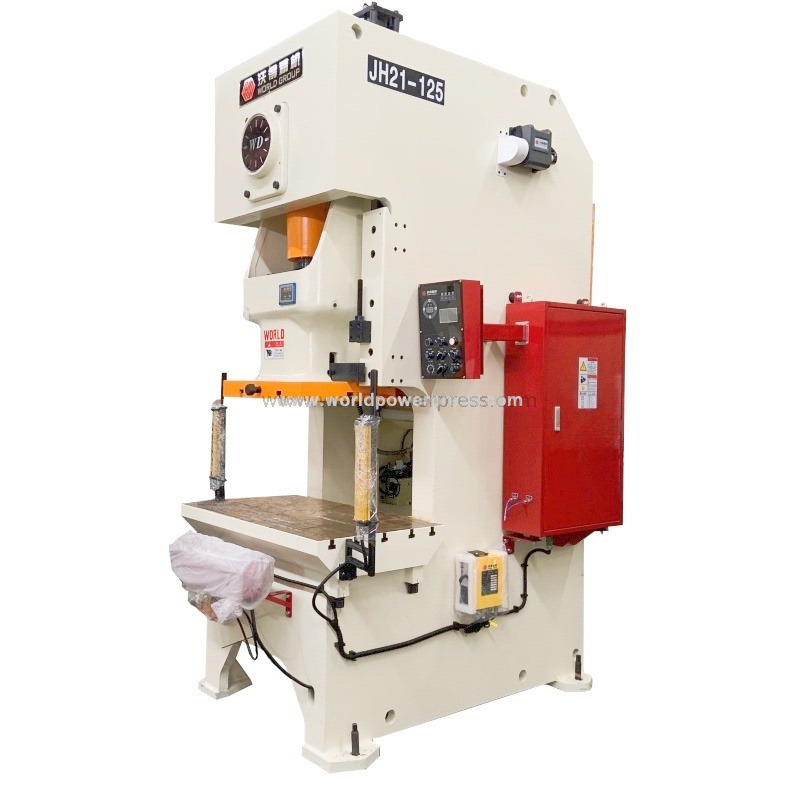

JH21 C frame single crank press is also suitable for small parts hot forging process. The c frame hot forging press can work with robot for automatic hot forging. This crank type forging press is widely used for bolts, nuts and small brass valves hot forging. Several units hot forging presses with robots can act as an full automatic forging press line. The forging press tonnage capacity range is from 25ton to 200ton.
| ITEM | CODE | UNIT | JH21-25 | JH21-45 | JH21-60 | JH21-80 | JH21-100 | JH21-125 | JH21-160 | JH21-200 | |
| Nominal Capacity | Pe | KN | 250 | 450 | 600 | 800 | 1000 | 1250 | 1600 | 2000 | |
| Slide Stroke Length | S | mm | 80 | 120 | 140 | 160 | 160 | 180 | 200 | 220 | |
| Slide Strokes | Fixed | spm | 100 | 80 | 70 | 60 | 55 | 50 | 45 | 45 | |
| Variable(optional) | spm | 60-120 | 50-95 | 45-85 | 40-75 | 35-65 | 35-65 | 30-55 | 30-55 | ||
| Max. Die Shut Height | H2 | mm | 250 | 270 | 300 | 320 | 335 | 350 | 400 | 450 | |
| Die Shut Height Adjustment | t | mm | 50 | 60 | 70 | 80 | 90 | 90 | 100 | 110 | |
| Throat Depth | C1 | mm | 210 | 225 | 270 | 310 | 330 | 350 | 400 | 430 | |
| Distance Between Uprights | d1 | mm | 450 | 515 | 560 | 610 | 670 | 670 | 736 | 910 | |
| Slide Bottom Size | FB | b | mm | 250 | 340 | 400 | 460 | 520 | 520 | 580 | 650 |
| LR | a | mm | 360 | 410 | 480 | 540 | 620 | 620 | 700 | 880 | |
| Shank Hole Size | Diameter | d | mm | 40 | 50 | 50 | 50 | 70 | 70 | 70 | 70 |
| Depth | I | mm | 65 | 60 | 70 | 65 | 90 | 90 | 100 | 100 | |
| Table Size | FB | D | mm | 400 | 440 | 520 | 600 | 640 | 680 | 760 | 840 |
| LR | C | mm | 720 | 825 | 930 | 950 | 1060 | 1100 | 1175 | 1390 | |
| Thickness | H3 | mm | 80 | 110 | 130 | 140 | 145 | 155 | 165 | 180 | |
| Table Hole Diameter | ¢ | mm | 150 | 150 | 150 | 180 | 180 | 200 | 220 | 240 | |
| Overall Dimensions | FB | A | mm | 1500 | 1585 | 1540 | 1765 | 2000 | 2040 | 2305 | 2600 |
| LR | B | mm | 945 | 1075 | 1200 | 1200 | 1300 | 1320 | 1420 | 1540 | |
| Height | H | mm | 2120 | 2390 | 2570 | 2725 | 3010 | 3035 | 3215 | 3800 | |
| Motor Power | KW | 3 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 | 18.5 | ||
Pneumatic clutch and brake: made by world
Main motor: Chinese famous brand
PLC: Omron, Schneider, Siemens, Delta
HMI: Kinco, Siemens, Delta
Overload pump: made by World
Grease lubricate pump: Chinese NF
Low voltage electric parts: Schneider, Chinese famous brand
Anti-vibration pads: made by world
Safety light barrier: Chinese famous brand
Inverter (main motor frequency drive): SINEE
Quick die change device (die clamp, die lifter, die arm): Chinese famous brand
Decoiler straightener
JH21 C frame single crank press is also suitable for small parts hot forging process. The c frame hot forging press can work with robot for automatic hot forging. This crank type forging press is widely used for bolts, nuts and small brass valves hot forging. Several units hot forging presses with robots can act as an full automatic forging press line. The forging press tonnage capacity range is from 25ton to 200ton.
| ITEM | CODE | UNIT | JH21-25 | JH21-45 | JH21-60 | JH21-80 | JH21-100 | JH21-125 | JH21-160 | JH21-200 | |
| Nominal Capacity | Pe | KN | 250 | 450 | 600 | 800 | 1000 | 1250 | 1600 | 2000 | |
| Slide Stroke Length | S | mm | 80 | 120 | 140 | 160 | 160 | 180 | 200 | 220 | |
| Slide Strokes | Fixed | spm | 100 | 80 | 70 | 60 | 55 | 50 | 45 | 45 | |
| Variable(optional) | spm | 60-120 | 50-95 | 45-85 | 40-75 | 35-65 | 35-65 | 30-55 | 30-55 | ||
| Max. Die Shut Height | H2 | mm | 250 | 270 | 300 | 320 | 335 | 350 | 400 | 450 | |
| Die Shut Height Adjustment | t | mm | 50 | 60 | 70 | 80 | 90 | 90 | 100 | 110 | |
| Throat Depth | C1 | mm | 210 | 225 | 270 | 310 | 330 | 350 | 400 | 430 | |
| Distance Between Uprights | d1 | mm | 450 | 515 | 560 | 610 | 670 | 670 | 736 | 910 | |
| Slide Bottom Size | FB | b | mm | 250 | 340 | 400 | 460 | 520 | 520 | 580 | 650 |
| LR | a | mm | 360 | 410 | 480 | 540 | 620 | 620 | 700 | 880 | |
| Shank Hole Size | Diameter | d | mm | 40 | 50 | 50 | 50 | 70 | 70 | 70 | 70 |
| Depth | I | mm | 65 | 60 | 70 | 65 | 90 | 90 | 100 | 100 | |
| Table Size | FB | D | mm | 400 | 440 | 520 | 600 | 640 | 680 | 760 | 840 |
| LR | C | mm | 720 | 825 | 930 | 950 | 1060 | 1100 | 1175 | 1390 | |
| Thickness | H3 | mm | 80 | 110 | 130 | 140 | 145 | 155 | 165 | 180 | |
| Table Hole Diameter | ¢ | mm | 150 | 150 | 150 | 180 | 180 | 200 | 220 | 240 | |
| Overall Dimensions | FB | A | mm | 1500 | 1585 | 1540 | 1765 | 2000 | 2040 | 2305 | 2600 |
| LR | B | mm | 945 | 1075 | 1200 | 1200 | 1300 | 1320 | 1420 | 1540 | |
| Height | H | mm | 2120 | 2390 | 2570 | 2725 | 3010 | 3035 | 3215 | 3800 | |
| Motor Power | KW | 3 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 | 18.5 | ||
Pneumatic clutch and brake: made by world
Main motor: Chinese famous brand
PLC: Omron, Schneider, Siemens, Delta
HMI: Kinco, Siemens, Delta
Overload pump: made by World
Grease lubricate pump: Chinese NF
Low voltage electric parts: Schneider, Chinese famous brand
Anti-vibration pads: made by world
Safety light barrier: Chinese famous brand
Inverter (main motor frequency drive): SINEE
Quick die change device (die clamp, die lifter, die arm): Chinese famous brand
Decoiler straightener
