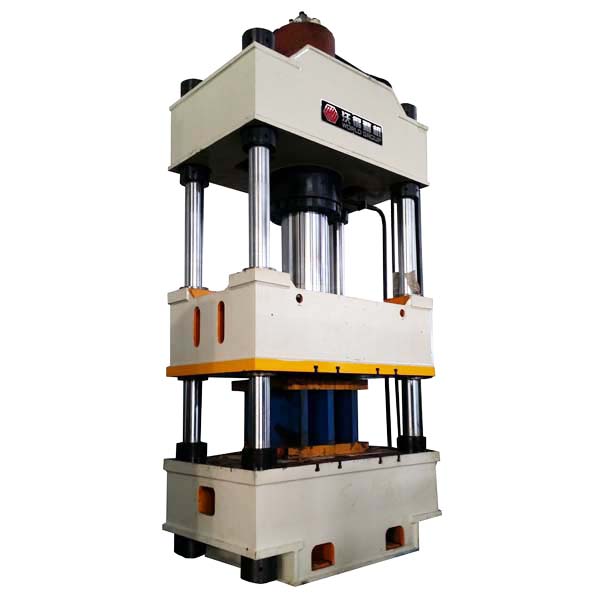

Four Column Type Hydraulic Hot Forging Press

Four-column type hydraulic press machine for hot forging and cold stamping

This hydraulic press machine is a PLC-controlled hydraulic press, delivering a pressing force of 100kN to 12500 kN with a maximum slide stroke of 300-1000 mm. It features reliable operation, superior control safety, easy maintenance and user-friendly performance.

The hydraulic system is custom-designed by integrating internationally advanced hydraulic principles with our extensive industry experience. It adopts large-diameter cartridge valves, which are organized into three distinct functional blocks. This design ensures the system boasts a compact structure, rapid response, low pressure loss and consistent operational reliability.

The oil cylinder is equipped with imported specialized sealing rings and wear-resistant rings, significantly enhancing its wear resistance and sealing performance. The pre-fill oil tank is mounted on the top of the machine, effectively reducing the floor space occupation.

The frame structure of this hydraulic press consists of an upper beam, a slide and a base, which are securely locked into a rigid unit by four tension bolts with sixteen nuts. This construction endows the machine with excellent precision retention and exceptional structural rigidity.

Standard configurations:

1) PLC control with HMI

2) Valve blocks

3) Safety light barriers at front side

4) Oil pressure gauges

5) Proximity sensors for stroke settings

6) High quality hydraulic cylinder

7) Fan with radiator for oil cooling

Options:

1) Hydraulic cushion under the table (multi-ejection pins)

2) Eject-out cylinder under the table (single)

3) Safety phisical fences

4) Servo motor and control system

5) Oil chiller

Custom items that we can accept:

1) Master cylinder capacity

2) Master cylinder stroke length

3) Maximum opening height

4) Table size

5) Cushion cylinder/ejection cylinder capacity

6) Cushion cylinder/ejection cylinder stroke length
