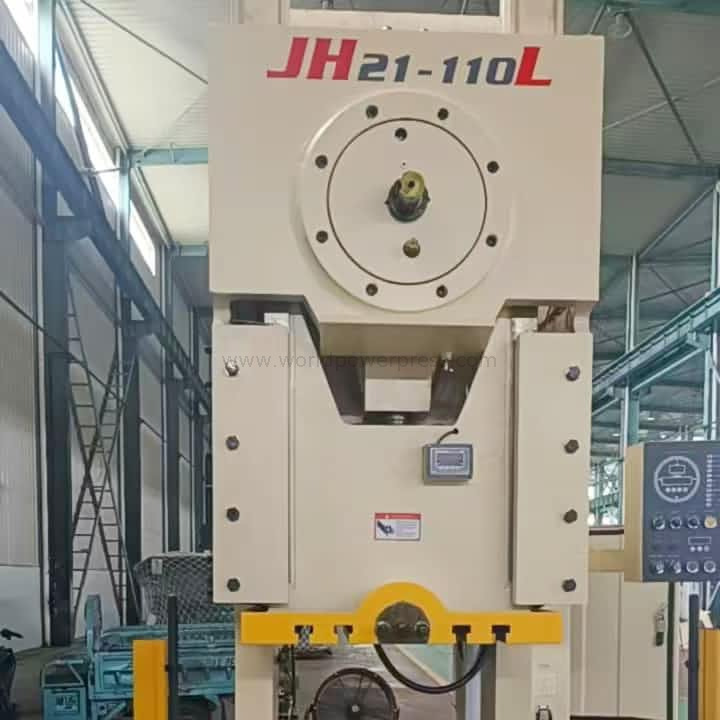

JH21-110L
-variable stroke length: 10mm/34mm/66mm/94mm/120mm/140mm/152mm/158mm/160mm
-pneumatic clutch and brake, dry type, easy maintenance
-PLC control with electric cam controller
-two-hand button control, foot pedal control is optional
-8-sided slide guide rails

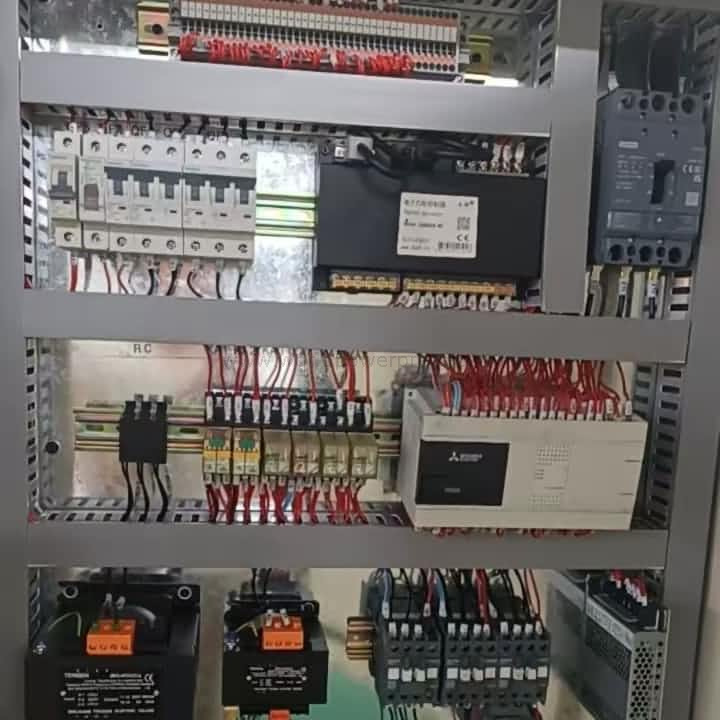

-PLC control (Delta/Mitsubishi)

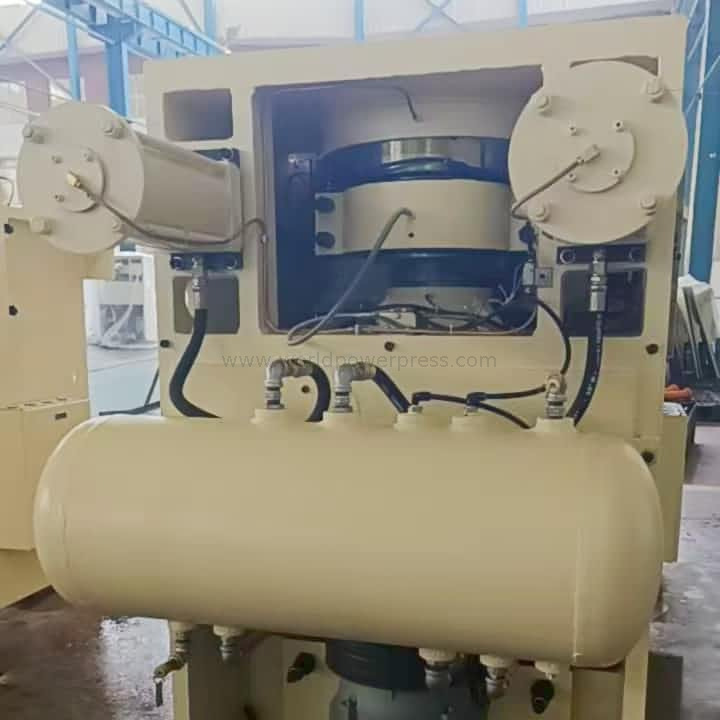

-Pneumatic clutch and brake (OMPI)
-Overload protection pump (Showa/King Air/Auto power)
-Safety solenoid valve for clutch (Azbil)
-Thin oil lubricate pump

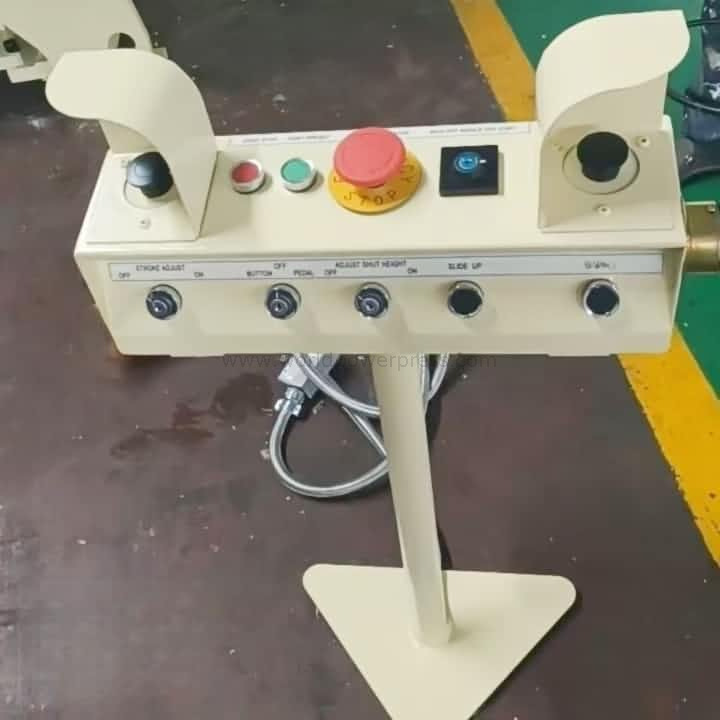

-Two-hand-button control panel with foot pedal
-Anti-vibration pads
-Inverter for adjustable stroke speeds
-Front side safety light barriers
-Slide counterweight balance cylinder
-Slide height adjust motor with height indicator
-Cam controller
-Die cushion
-Hydraulic die clamps, die lifters
-Physical safety fence
| JH21-110L | ||||
| Capacity | kN | 1100 | ||
| Nominal Stroke | mm | 6 | ||
| Slide Stroke | mm | 10-160 | ||
| SPM | Fixed | min-1 | 50 | |
| Variable | min-1 | 40-60 | ||
| Max. Die Height | mm | 350 | ||
| Die Height Adjustment | mm | 80 | ||
| Throat Depth | mm | 350 | ||
| Between Columns | mm | 710 | ||
| Bolster | LR | mm | 1150 | |
| FB | mm | 680 | ||
| Thk | mm | 140 | ||
| Bolster Opening | mm | φ260×50 | ||
| (Up Hole Dia.×Dpth×Low Hole Dia.) | ×φ220 | |||
| Slide Area | LR | mm | 810 | |
| FB | mm | 500 | ||
| Shank Hole | Dia. | mm | φ60 | |
| Dpth | mm | 80 | ||
| Main Motor Power | kW | 11 | ||
| Dimensions | FB | mm | 1860 | |
| LR | mm | 1400 | ||
| H | mm | 3350 | ||
| Net Weight | kg | 10000 | ||
-variable stroke length: 10mm/34mm/66mm/94mm/120mm/140mm/152mm/158mm/160mm
-pneumatic clutch and brake, dry type, easy maintenance
-PLC control with electric cam controller
-two-hand button control, foot pedal control is optional
-8-sided slide guide rails
-PLC control (Delta/Mitsubishi)
-Pneumatic clutch and brake (OMPI)
-Overload protection pump (Showa/King Air/Auto power)
-Safety solenoid valve for clutch (Azbil)
-Thin oil lubricate pump
-Two-hand-button control panel with foot pedal
-Anti-vibration pads
-Inverter for adjustable stroke speeds
-Front side safety light barriers
-Slide counterweight balance cylinder
-Slide height adjust motor with height indicator
-Cam controller
-Die cushion
-Hydraulic die clamps, die lifters
-Physical safety fence
| JH21-110L | ||||
| Capacity | kN | 1100 | ||
| Nominal Stroke | mm | 6 | ||
| Slide Stroke | mm | 10-160 | ||
| SPM | Fixed | min-1 | 50 | |
| Variable | min-1 | 40-60 | ||
| Max. Die Height | mm | 350 | ||
| Die Height Adjustment | mm | 80 | ||
| Throat Depth | mm | 350 | ||
| Between Columns | mm | 710 | ||
| Bolster | LR | mm | 1150 | |
| FB | mm | 680 | ||
| Thk | mm | 140 | ||
| Bolster Opening | mm | φ260×50 | ||
| (Up Hole Dia.×Dpth×Low Hole Dia.) | ×φ220 | |||
| Slide Area | LR | mm | 810 | |
| FB | mm | 500 | ||
| Shank Hole | Dia. | mm | φ60 | |
| Dpth | mm | 80 | ||
| Main Motor Power | kW | 11 | ||
| Dimensions | FB | mm | 1860 | |
| LR | mm | 1400 | ||
| H | mm | 3350 | ||
| Net Weight | kg | 10000 | ||
