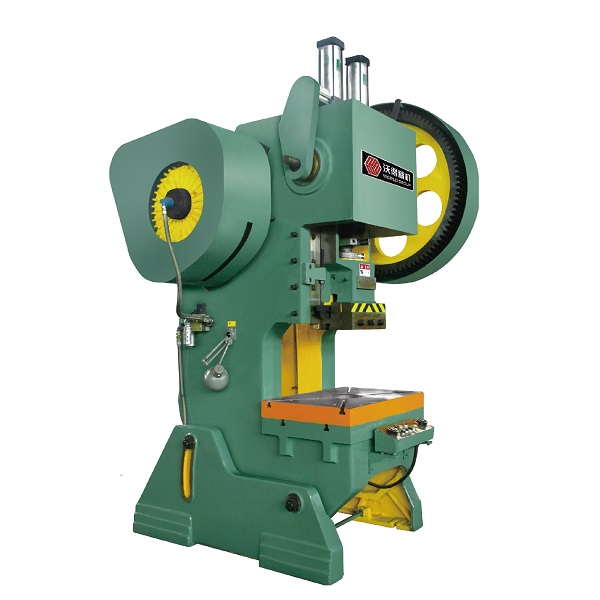

JH23 Inclinable Crank Type Pneumatic Press

JH23 gap frame crank type pneumatic press adopts dry type clutch and brake instead of rolling key type clutch. JH23 punching press can work as inches, single stroke and continuous strokes. The crank press ram can stop at any points once press down the emergency stop button. JH23 cank type eccentric press is a general safety type press machine for sheet metal parts punching and stamping.

Availability:

Quantity:



Inquire Add to Basket

Model:
JH23
Brand:
WORLD

JH23 gap frame crank type pneumatic press adopts dry type clutch and brake instead of rolling key type clutch. JH23 punching press can work as inches, single stroke and continuous strokes. The crank press ram can stop at any points once press down the emergency stop button. JH23 cank type eccentric press is a general safety type press machine for sheet metal parts punching and stamping.

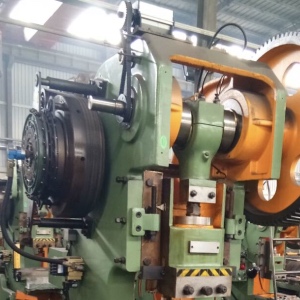

Dry type pneumatic clutch for eccentric press

Pneumatic clutch for crank press machine provides the working modes options as inches, single and continuous strokes. It is convenient to adjust the die shut height to match different stamping tools with inches working mode. The crank press machine slide can stop at any points with the help of pneumatic brake system.

Crank type pneumatic press configurations:

casting iron body
dry type pneumatic clutch
transmission big gear
forged crankshaft
casting ram and conrod
forged ball screw
casting iron bolster
mechanical shear plate inside ram for overload protection
electric console

crank type pneumatic press machine c type pneumatic crank press crank type pneumatic press crank type punching press machine crank type pneumatic power press inclinable crank press pneumatic crank press inclinablee crank type pneumatic press crank type press inclinablee crank press machine

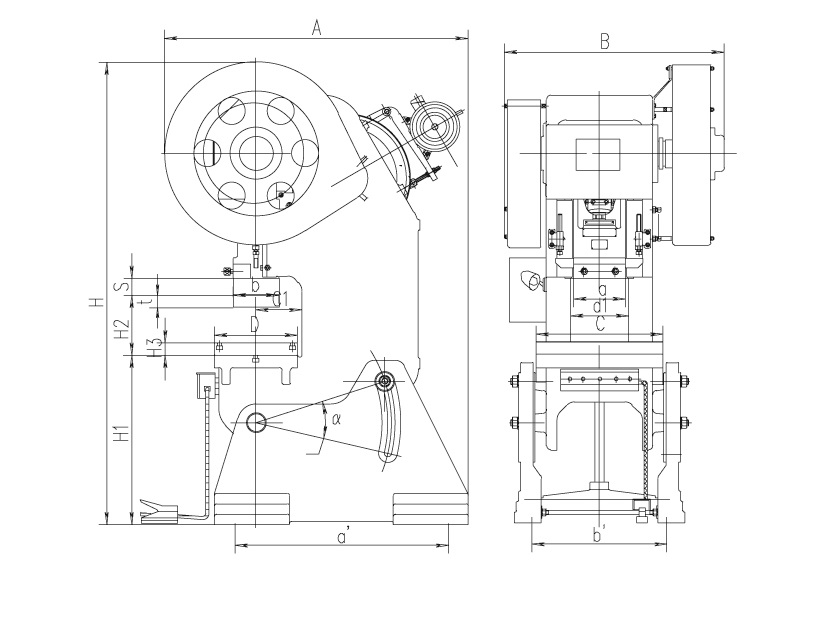

ITEMS		UNIT	JH23-16	JH23-25	JH23-35	JH23-40	JH23-63	JH23-80	JH23-100
Nominal capacity		KN	160	250	350	400	630	800	1000
Nominal stroke		mm	2	2.5	3.5	6	6	7	7
Slide stroke length		mm	55	75	80	90	110	120	140
Stroke times per minute		times	125	65	60	50	50	38	38
Max. die set height		mm	220	260	290	320	390	440	480
Die height adjustment		mm	45	55	60	65	80	90	100
Throat depth		mm	160	200	220	250	310	350	380
Distance between uprights		mm	220	270	280	340	420	450	560
Slide bottom size	L-R	mm	200	250	250	300	400	430	540
Slide bottom size	F-B	mm	180	220	220	260	360	360	480
Stemhole size	Diameter	mm	40	40	40	50	50	60	60
Stemhole size	Depth	mm	60	60	60	70	70	75	75
Bolster size	L-R	mm	450	560	610	700	860	950	1080
	F-B	mm	300	370	400	460	570	650	710
	Thickness	mm	40	50	60	65	80	100	120
Table hole diameter		mm	100	120	130	150	180	200	220
Max. inclinable angle		°	35	30	30	30	20	20	15
Bolster surface height		mm	750	800	805	850	850	850	850
Over all dimensions	L-R	mm	1050	1170	1195	1376	1560	1915	2180
	F-B	mm	1200	1345	1462	1750	1930	2060	2404
	Height	mm	1960	2132	2215	2488	2740	3290	3625
Distance between foundation bolts	L-R	mm	450	600	650	750	920	1010	1130
Distance between foundation bolts	F-B	mm	780	920	1020	1060	1300	1360	1550
Motor power		kw	1.5	3	4	5.5	7.5	7.5	11
Weight		kg	1185	2050	2530	3590	5440	7860	11250

ITEMS		UNIT	JH23-16	JH23-25	JH23-35	JH23-40	JH23-63	JH23-80	JH23-100
Nominal capacity		KN	160	250	350	400	630	800	1000
Nominal stroke		mm	2	2.5	3.5	6	6	7	7
Slide stroke length		mm	55	75	80	90	110	120	140
Stroke times per minute		times	125	65	60	50	50	38	38
Max. die set height		mm	220	260	290	320	390	440	480
Die height adjustment		mm	45	55	60	65	80	90	100
Throat depth		mm	160	200	220	250	310	350	380
Distance between uprights		mm	220	270	280	340	420	450	560
Slide bottom size	L-R	mm	200	250	250	300	400	430	540
Slide bottom size	F-B	mm	180	220	220	260	360	360	480
Stemhole size	Diameter	mm	40	40	40	50	50	60	60
Stemhole size	Depth	mm	60	60	60	70	70	75	75
Bolster size	L-R	mm	450	560	610	700	860	950	1080
	F-B	mm	300	370	400	460	570	650	710
	Thickness	mm	40	50	60	65	80	100	120
Table hole diameter		mm	100	120	130	150	180	200	220
Max. inclinable angle		°	35	30	30	30	20	20	15
Bolster surface height		mm	750	800	805	850	850	850	850
Over all dimensions	L-R	mm	1050	1170	1195	1376	1560	1915	2180
	F-B	mm	1200	1345	1462	1750	1930	2060	2404
	Height	mm	1960	2132	2215	2488	2740	3290	3625
Distance between foundation bolts	L-R	mm	450	600	650	750	920	1010	1130
Distance between foundation bolts	F-B	mm	780	920	1020	1060	1300	1360	1550
Motor power		kw	1.5	3	4	5.5	7.5	7.5	11
Weight		kg	1185	2050	2530	3590	5440	7860	11250
