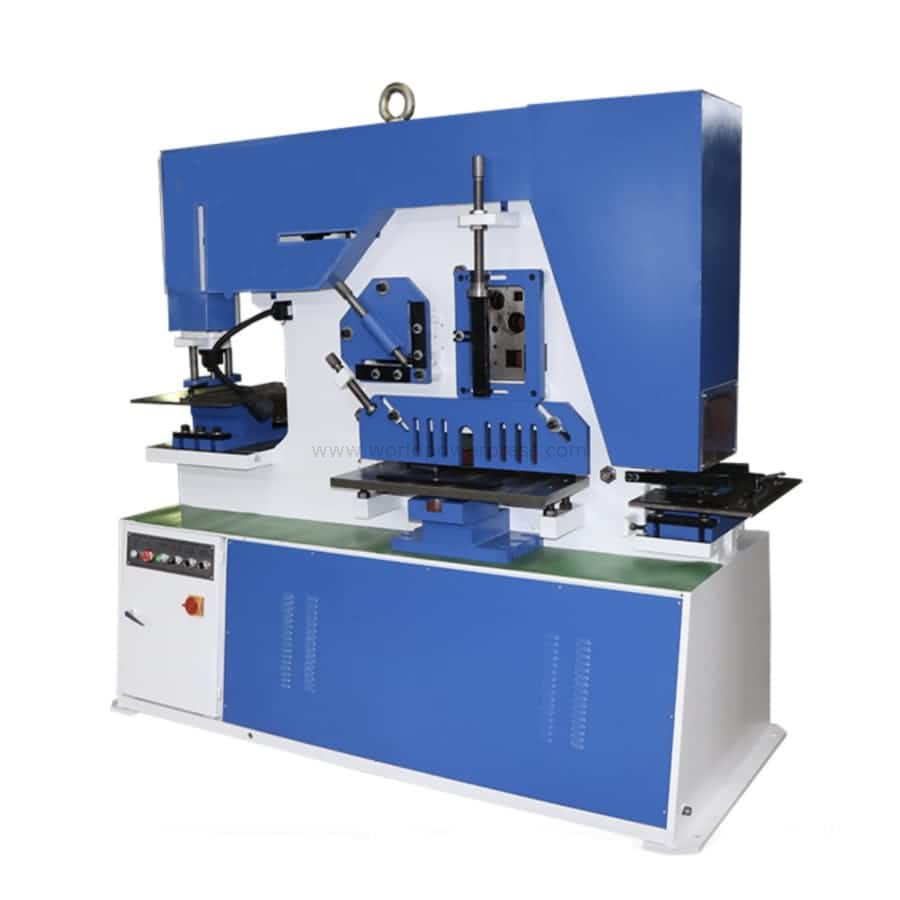

Q35Y-25
-Max. U beam cutting size: 200x75x9mm
-Max. Plate cutting thickness x length: 25x330mm/16x600mm
-Max. Punching capacity: 120ton
-Max. Punching thickness: 25mm
-Max. Nothcing thickness: 10mm
| Model | Q35Y-25 |
| Punching pressure(Ton) | 120 |
| Max.shearing thickness of steel plates (mm) | 25 |
| Strength of steel plates (N/mm2) | ≤450 |
| Angle of shearing | 8° |
| Shearing sizes of one stroke(mm/W×H) | 25×330 |
| 16×600 | |
| Ram stroke (mm) | 80 |
| Number of stroke (times/minute) | 8~22 |
| Depth of throat (mm) | 400 |
| Punching thickness (mm) | 25 |
| Max.diameter of punching (mm) | 35 |
| Round steel (mm) | 60 |
| Square steel (mm) | 50×50 |
| 90° Shearing of equal-angle steel (mm) | 160×160×14 |
| 45° Shearing of equal-angle steel (mm) | 80×80×7 |
| H-beam (mm) | 120×120 |
| C-Channel (mm) | 200×75×9 |
| I-beam (mm) | 200×102×9 |
| Main motor power (kw) | 7.5 |
| Overall dimension (mm/L×W×H) | 2350×980 |
| ×2100 |
-Max. U beam cutting size: 200x75x9mm
-Max. Plate cutting thickness x length: 25x330mm/16x600mm
-Max. Punching capacity: 120ton
-Max. Punching thickness: 25mm
-Max. Nothcing thickness: 10mm
| Model | Q35Y-25 |
| Punching pressure(Ton) | 120 |
| Max.shearing thickness of steel plates (mm) | 25 |
| Strength of steel plates (N/mm2) | ≤450 |
| Angle of shearing | 8° |
| Shearing sizes of one stroke(mm/W×H) | 25×330 |
| 16×600 | |
| Ram stroke (mm) | 80 |
| Number of stroke (times/minute) | 8~22 |
| Depth of throat (mm) | 400 |
| Punching thickness (mm) | 25 |
| Max.diameter of punching (mm) | 35 |
| Round steel (mm) | 60 |
| Square steel (mm) | 50×50 |
| 90° Shearing of equal-angle steel (mm) | 160×160×14 |
| 45° Shearing of equal-angle steel (mm) | 80×80×7 |
| H-beam (mm) | 120×120 |
| C-Channel (mm) | 200×75×9 |
| I-beam (mm) | 200×102×9 |
| Main motor power (kw) | 7.5 |
| Overall dimension (mm/L×W×H) | 2350×980 |
| ×2100 |
