JW31-315
WORLD

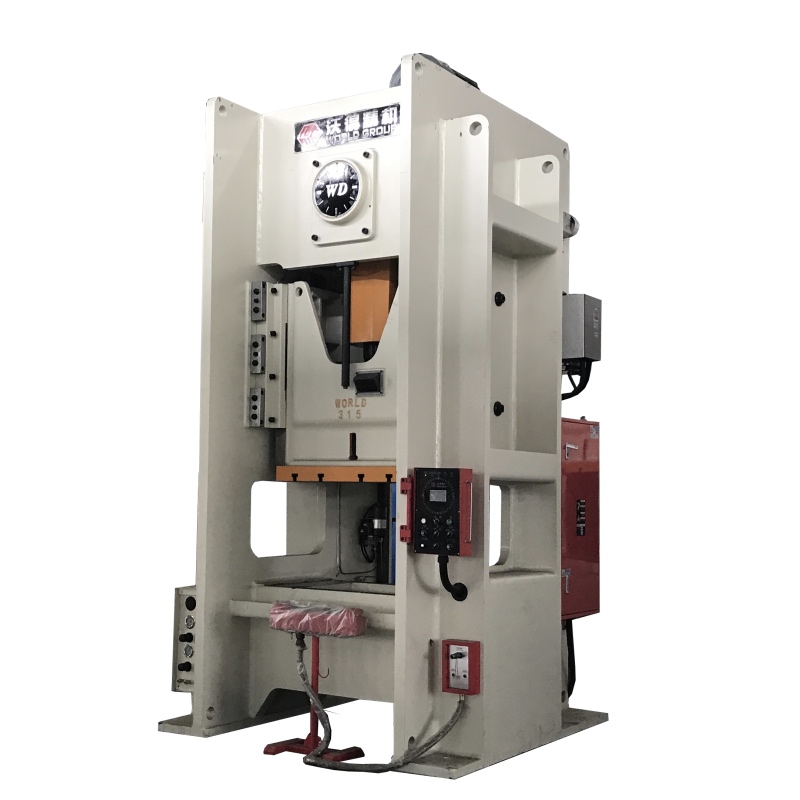

World brand 300ton straight side power press is suitable for metal parts blanking. H frame body is stronger and 8 faces slider guides are more precise. This power press is adopt to hinge plates blanking, pots blanking and drawing. Brass hot forging is also ok. JW31-315 straight press adopts wet type clutch, which is lower noise and easier for maintenance. Hydraulic overload protected, motorized ram adjustment, automatic grease lubrication.
Power press model: JW31-315
Tonnage: 3150kN
Stroke: 220mm
Speed: 20-35spm
Shut height: 550mm
Slider adjustment: 120mm
Working table size: 1250x850mm
Ram bottom size: 1000x800mm
Main motor power: 30kw
Machine weight: 29100kg
PLC brand: Panasonic
World brand 300ton straight side power press is suitable for metal parts blanking. H frame body is stronger and 8 faces slider guides are more precise. This power press is adopt to hinge plates blanking, pots blanking and drawing. Brass hot forging is also ok. JW31-315 straight press adopts wet type clutch, which is lower noise and easier for maintenance. Hydraulic overload protected, motorized ram adjustment, automatic grease lubrication.
Power press model: JW31-315
Tonnage: 3150kN
Stroke: 220mm
Speed: 20-35spm
Shut height: 550mm
Slider adjustment: 120mm
Working table size: 1250x850mm
Ram bottom size: 1000x800mm
Main motor power: 30kw
Machine weight: 29100kg
PLC brand: Panasonic
