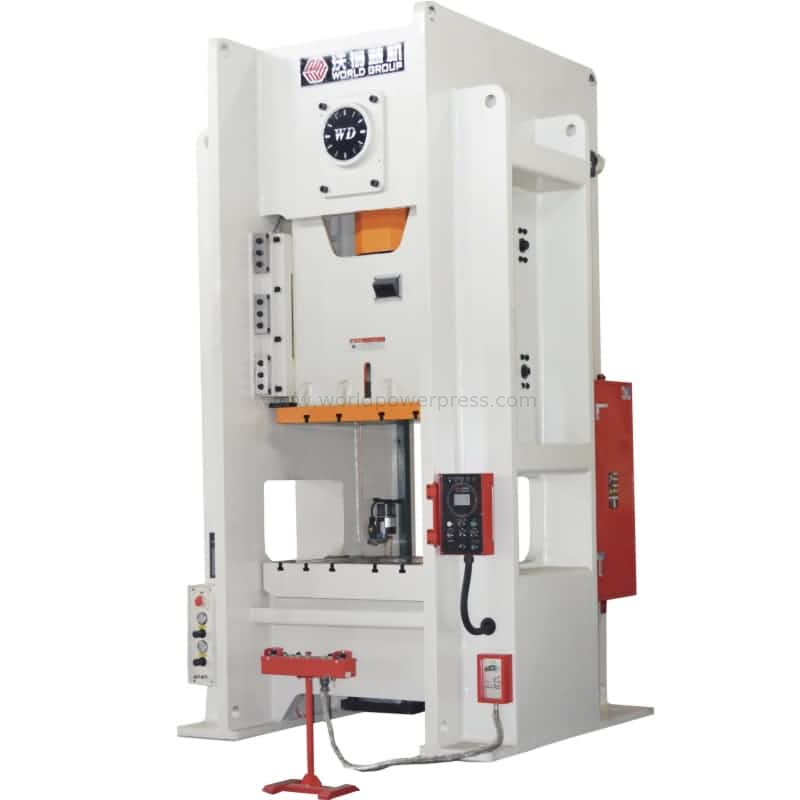

200ton H Frame Single Crank Mechanical Punch Press
JW31-200 is a 200 ton crank type single point straight side press. This press adopts wet type pneumatic clutch and PLC control. If conforms to CE safety standard.
-Single crankshaft cross located, drive by big gear
-8 faces slide guides with bronze plates
-Wet type pneumatic clutch and brake, fricition discs are oil bath inside the flywheel.
-Safety solienoid valve to control the clutch
-Mechanical cam controller with rotary encoder
-With anti-vibration mounting pads
200ton h frame punch press features
-H frame steel welded body, strong and rigid
-Single crankshaft cross located, drive by big gear
-8 faces slide guides with bronze plates
-Wet type pneumatic clutch and brake, fricition discs are oil bath inside the flywheel.
-Safety solienoid valve to control the clutch
-Mechanical cam controller with rotary encoder
-With anti-vibration mounting pads
Model Number
JW31-200
Rated Tonnage
200Ton
Rated Tonnage Distance
6mm
Stroke Length
200mm
Stroke Speed
35-55spm
Max. Die Set Height
450mm
Slide Adjustment
110mm
Table Size
1100mm x 750mm
Slide Bottom Size
850mm x 700mm
Side Window
750mm x 420mm
Motor Power
18.5kW
