| Quantity: | |
|---|---|

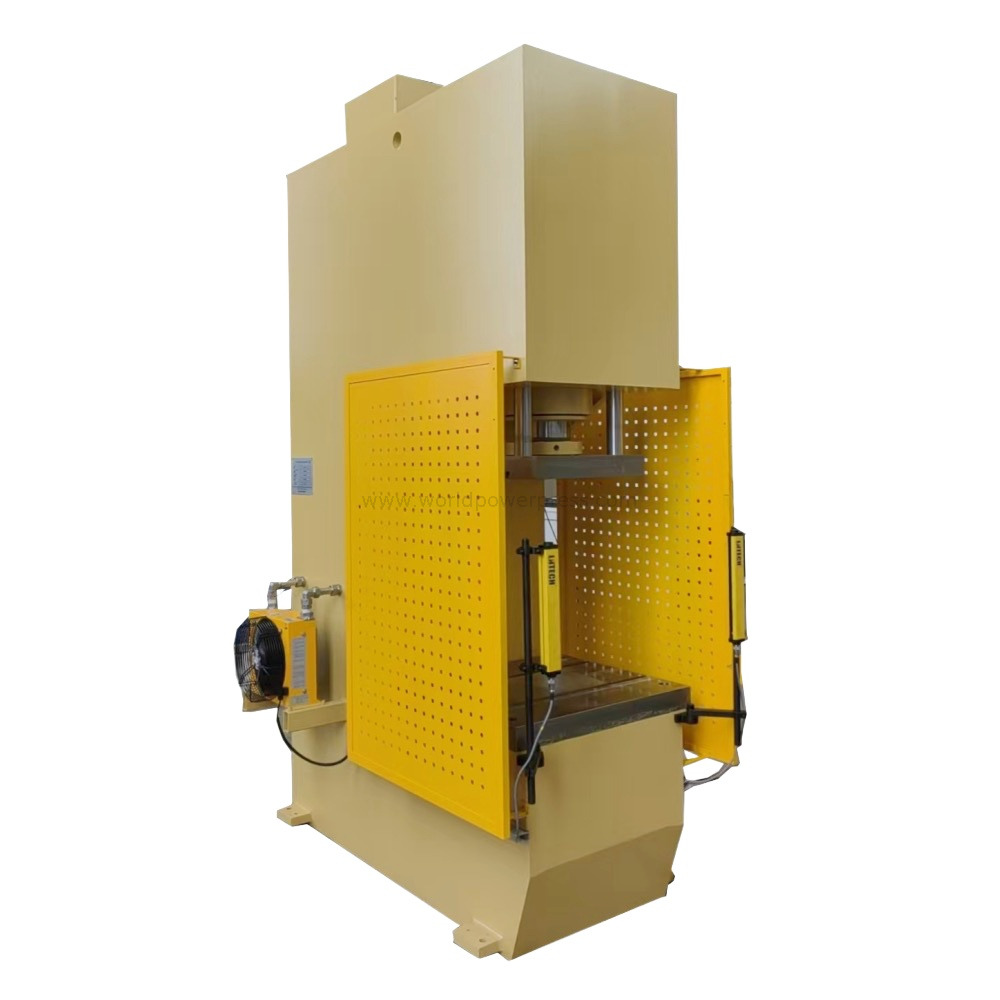

Y41-100
-capacity: 100ton
-C type steel welded body
-inches and automatic working
-two-hand-button control
| Model | Unit | Y41-100 | |
| Nominal Force | kN | 1000 | |
| Working table height | mm | 800 | |
| Max.hydraulic pressure | MPa | 25 | |
| Throat depth | mm | 400 | |
| Stroke of slide | mm | 600 | |
| Daylight | mm | 800 | |
| Speed of slide | idle | mm/s | 100 |
| pressing | mm/s | 15-20 | |
| return | mm/s | 100 | |
| Effective area of work table | L-R | mm | 800 |
| F-B | mm | 700 | |
| Motor Power | KW | 7.5 | |
-capacity: 100ton
-C type steel welded body
-inches and automatic working
-two-hand-button control
| Model | Unit | Y41-100 | |
| Nominal Force | kN | 1000 | |
| Working table height | mm | 800 | |
| Max.hydraulic pressure | MPa | 25 | |
| Throat depth | mm | 400 | |
| Stroke of slide | mm | 600 | |
| Daylight | mm | 800 | |
| Speed of slide | idle | mm/s | 100 |
| pressing | mm/s | 15-20 | |
| return | mm/s | 100 | |
| Effective area of work table | L-R | mm | 800 |
| F-B | mm | 700 | |
| Motor Power | KW | 7.5 | |
