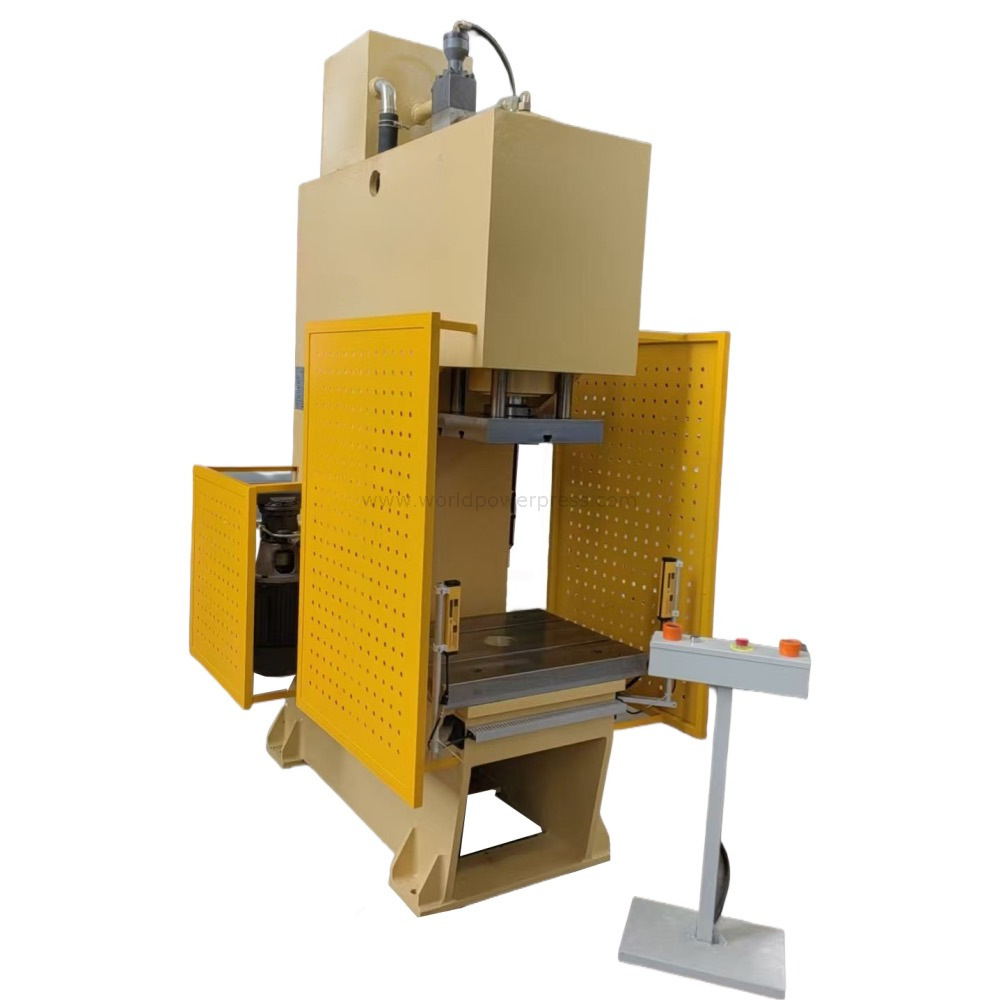

Y41-40
-Tonnage capacity: 400kN
-C frame steel welded body
-One piece main cylinder
-Working modes: inches and automatic
| Model | Unit | Y41-40 | |
| Nominal Force | kN | 400 | |
| Working table height | mm | 710 | |
| Max.hydraulic pressure | MPa | 25 | |
| Throat depth | mm | 350 | |
| Stroke of slide | mm | 400 | |
| Daylight | mm | 630 | |
| Speed of slide | idle | mm/s | 80 |
| pressing | mm/s | 18-20 | |
| return | mm/s | 75 | |
| Effective area of work table | L-R | mm | 700 |
| F-B | mm | 570 | |
| Motor Power | KW | 5.5 | |
-Tonnage capacity: 400kN
-C frame steel welded body
-One piece main cylinder
-Working modes: inches and automatic
| Model | Unit | Y41-40 | |
| Nominal Force | kN | 400 | |
| Working table height | mm | 710 | |
| Max.hydraulic pressure | MPa | 25 | |
| Throat depth | mm | 350 | |
| Stroke of slide | mm | 400 | |
| Daylight | mm | 630 | |
| Speed of slide | idle | mm/s | 80 |
| pressing | mm/s | 18-20 | |
| return | mm/s | 75 | |
| Effective area of work table | L-R | mm | 700 |
| F-B | mm | 570 | |
| Motor Power | KW | 5.5 | |
