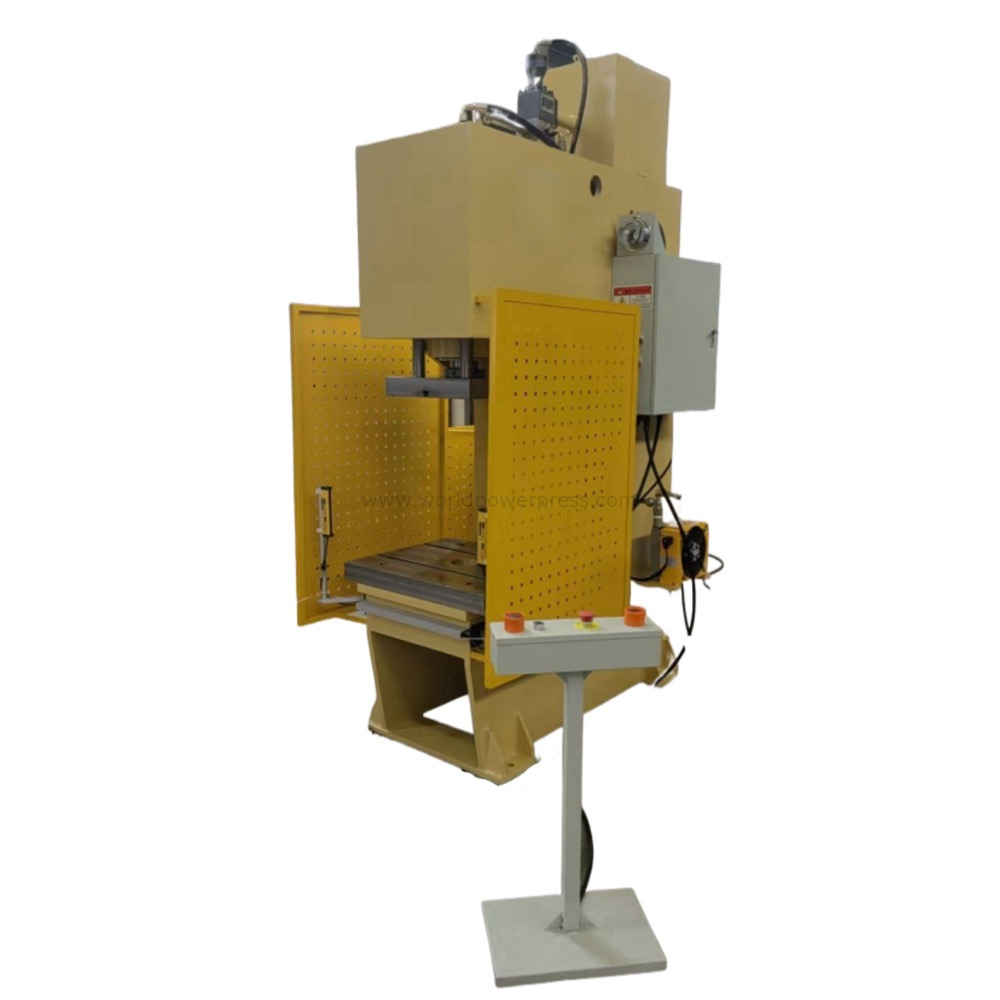

Y41-63
-C frame body, steel plate welded
-Working modes: inches and semi-automaitc
-Capacity: 630kN
| Model | Unit | Y41-63 | |
| Nominal Force | kN | 630 | |
| Working table height | mm | 810 | |
| Max.hydraulic pressure | MPa | 25 | |
| Throat depth | mm | 320 | |
| Stroke of slide | mm | 500 | |
| Daylight | mm | 750 | |
| Speed of slide | idle | mm/s | 120 |
| pressing | mm/s | 18-20 | |
| return | mm/s | 100 | |
| Effective area of work table | L-R | mm | 710 |
| F-B | mm | 600 | |
| Motor Power | KW | 7.5 | |
-C frame body, steel plate welded
-Working modes: inches and semi-automaitc
-Capacity: 630kN
| Model | Unit | Y41-63 | |
| Nominal Force | kN | 630 | |
| Working table height | mm | 810 | |
| Max.hydraulic pressure | MPa | 25 | |
| Throat depth | mm | 320 | |
| Stroke of slide | mm | 500 | |
| Daylight | mm | 750 | |
| Speed of slide | idle | mm/s | 120 |
| pressing | mm/s | 18-20 | |
| return | mm/s | 100 | |
| Effective area of work table | L-R | mm | 710 |
| F-B | mm | 600 | |
| Motor Power | KW | 7.5 | |
