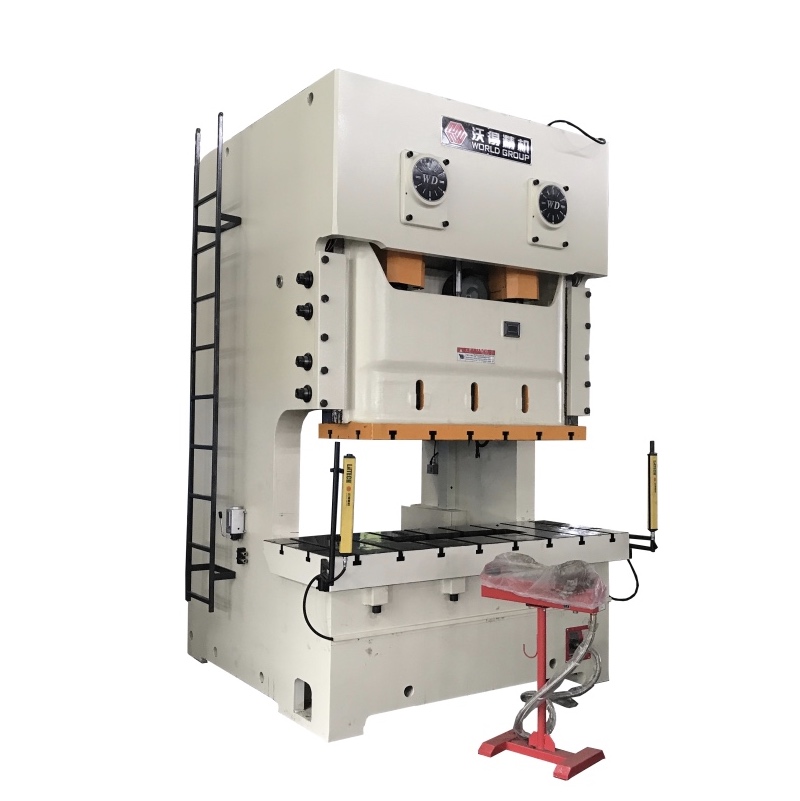

160ton Gap Frame Two Points Power Press

JH25-160 is a 160ton gap frame double crank press. This power press adopts wet type pneumatic clutch and PLC control. Operator can check the press working status through the HMI. The hydraulic overload protection system is standard equipped. Press table size is 2040x760mm, better for progressive die stamping. Inverter and light curtain are optional. Automatic accessories, such as roller feeder and decoiler, are also available.

Basic parameters:

Model No.: JH25-160

Nominal capacity: 160ton

Table size: 2040x760mm

Slide plate size: 1500x580mm

Max. Shut height: 450mm

Stroke length: 200mm

Stroke speeds: 45spm

Machine weight: 19ton

Standard equipment:

Pneumatic clutch and brake

PLC control

HMI with touch screen in English version

Safety valve for clutch

Overload protection system

Slide adjustment motor with die height indicator

Movable electric cabinet

Hand button control panel with foot pedal

Anti-vibration pads

Slide and upper die counterweight balance cylinder

Optional accessories:

Safety light barriers

Inverter for adjustable stroke speeds

Die cushion

Quick die change device

Automatic coil feeding machines

Manipulator

Tonnage monitor
