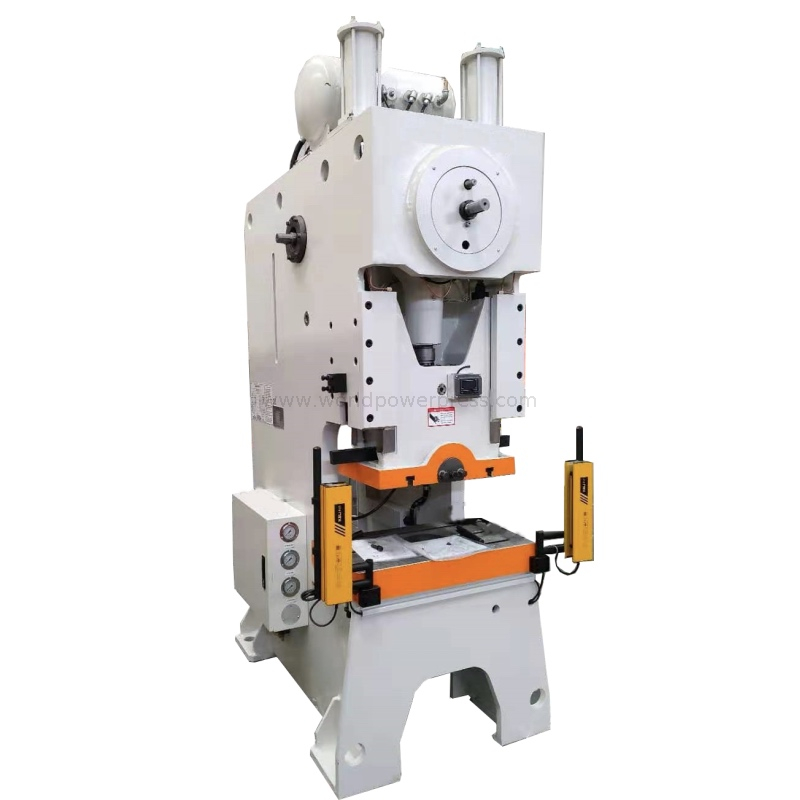

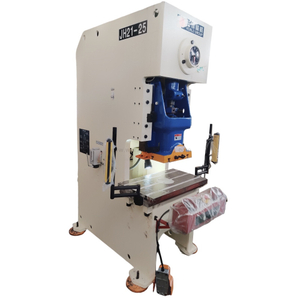

JH21-25L
-stroke length adjustable: 10/30/56/78/95/106/110mm, total 7 shifts
-Dry type pneumatic clutch and brake
-Solenoid dual safety valve for control clutch
-Two-hand button control, foot pedal control is optional
-Customizable specifications
| JH21-25L | ||||
| Capacity | kN | 250 | ||
| Nominal Stroke | mm | 3 | ||
| Slide Stroke | mm | 10-110 | ||
| SPM | Fixed | min-1 | 100 | |
| Variable | min-1 | 80-120 | ||
| Max. Die Height | mm | 250 | ||
| Die Height Adjustment | mm | 50 | ||
| Throat Depth | mm | 210 | ||
| Between Columns | mm | 450 | ||
| Bolster | LR | mm | 700 | |
| FB | mm | 400 | ||
| Thk | mm | 80 | ||
| Bolster Opening | mm | φ170×20 | ||
| (Up Hole Dia.×Dpth×Low Hole Dia.) | ×φ150 | |||
| Slide Area | LR | mm | 360 | |
| FB | mm | 300 | ||
| Shank Hole | Dia. | mm | φ40 | |
| Dpth | mm | 60 | ||
| Main Motor Power | kW | 4 | ||
| Dimensions | FB | mm | 1500 | |
| LR | mm | 950 | ||
| H | mm | 2650 | ||
| Net Weight | kg | 3100 | ||
-stroke length adjustable: 10/30/56/78/95/106/110mm, total 7 shifts
-Dry type pneumatic clutch and brake
-Solenoid dual safety valve for control clutch
-Two-hand button control, foot pedal control is optional
-Customizable specifications
| JH21-25L | ||||
| Capacity | kN | 250 | ||
| Nominal Stroke | mm | 3 | ||
| Slide Stroke | mm | 10-110 | ||
| SPM | Fixed | min-1 | 100 | |
| Variable | min-1 | 80-120 | ||
| Max. Die Height | mm | 250 | ||
| Die Height Adjustment | mm | 50 | ||
| Throat Depth | mm | 210 | ||
| Between Columns | mm | 450 | ||
| Bolster | LR | mm | 700 | |
| FB | mm | 400 | ||
| Thk | mm | 80 | ||
| Bolster Opening | mm | φ170×20 | ||
| (Up Hole Dia.×Dpth×Low Hole Dia.) | ×φ150 | |||
| Slide Area | LR | mm | 360 | |
| FB | mm | 300 | ||
| Shank Hole | Dia. | mm | φ40 | |
| Dpth | mm | 60 | ||
| Main Motor Power | kW | 4 | ||
| Dimensions | FB | mm | 1500 | |
| LR | mm | 950 | ||
| H | mm | 2650 | ||
| Net Weight | kg | 3100 | ||
