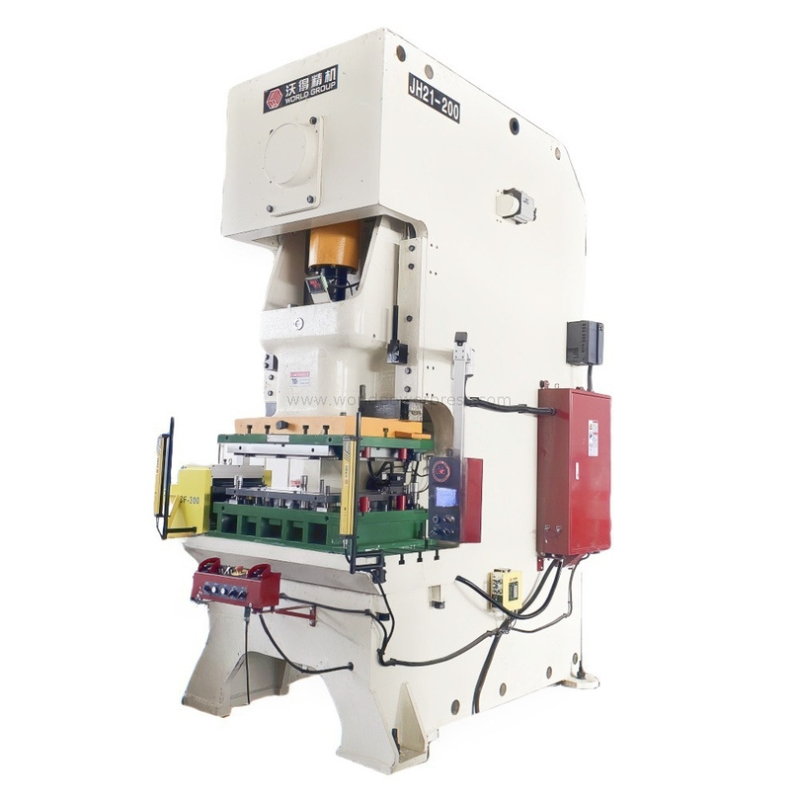

JH21-200
WORLD
- 200 ton nominal capacity
- wet type pneumtaic clutch and brake, with safety solenoid valve
- PLC control, hydraulic overload protection
- with mounting anti-vibration pads
- Gap frame steel plate weled body, anealing treatment for release stress
- Automatic grease lubrication
| ITEM | CODE | UNIT | JH21-200 | |
| Nominal Capacity | Pe | KN | 2000 | |
| Tonnage Rated Point | mm | 6 | ||
| Slide Stroke Length | S | mm | 220 | |
| Slide Strokes | Fixed | spm | 45 | |
| Variable (optional) | spm | 30-45 | ||
| Max. Shut Height | H2 | mm | 450 | |
| Shut Height Adjustment | t | mm | 110 | |
| Throat Depth | C1 | mm | 430 | |
| Distance Between Columns | d1 | mm | 910 | |
| Slide Bottom Size | F-B | b | mm | 650 |
| L-R | a | mm | 880 | |
| Shank Hole Size | Diameter | d | mm | N/A |
| Depth | I | mm | N/A | |
| Table Size | F-B | D | mm | 840 |
| L-R | C | mm | 1390 | |
| Thickness | H3 | mm | 180 | |
| Table Hole Diameter | ¢ | mm | 240 | |
| Overall Dimensions | F-B | A | mm | 2600 |
| L-R | B | mm | 1540 | |
| Height | H | mm | 3800 | |
| Motor Power | KW | 18.5 | ||
| Weight (approximate) | kg | 18500 | ||
1. PLC
2. Pneumatic clutch and brake
3. Dual-safety valve for clutch
4. Rotary encoder with cam controller
5. HMI with touch screen
6. Slide height adjust motor (except for JH21-25 JH21-45)
7. Die height indicator
8. Over-run safety device
9. Overload pump
10. Grease pump
11. Slide balance cylinder
12. Anti-vibration pads
1. Die cushion
2. Safety light curtain
3. Motor speed drive (inverter)
4. Quick die change device
5. Tonnage monitor
6. NC servo feeder and uncoiler
- 200 ton nominal capacity
- wet type pneumtaic clutch and brake, with safety solenoid valve
- PLC control, hydraulic overload protection
- with mounting anti-vibration pads
- Gap frame steel plate weled body, anealing treatment for release stress
- Automatic grease lubrication
| ITEM | CODE | UNIT | JH21-200 | |
| Nominal Capacity | Pe | KN | 2000 | |
| Tonnage Rated Point | mm | 6 | ||
| Slide Stroke Length | S | mm | 220 | |
| Slide Strokes | Fixed | spm | 45 | |
| Variable (optional) | spm | 30-45 | ||
| Max. Shut Height | H2 | mm | 450 | |
| Shut Height Adjustment | t | mm | 110 | |
| Throat Depth | C1 | mm | 430 | |
| Distance Between Columns | d1 | mm | 910 | |
| Slide Bottom Size | F-B | b | mm | 650 |
| L-R | a | mm | 880 | |
| Shank Hole Size | Diameter | d | mm | N/A |
| Depth | I | mm | N/A | |
| Table Size | F-B | D | mm | 840 |
| L-R | C | mm | 1390 | |
| Thickness | H3 | mm | 180 | |
| Table Hole Diameter | ¢ | mm | 240 | |
| Overall Dimensions | F-B | A | mm | 2600 |
| L-R | B | mm | 1540 | |
| Height | H | mm | 3800 | |
| Motor Power | KW | 18.5 | ||
| Weight (approximate) | kg | 18500 | ||
1. PLC
2. Pneumatic clutch and brake
3. Dual-safety valve for clutch
4. Rotary encoder with cam controller
5. HMI with touch screen
6. Slide height adjust motor (except for JH21-25 JH21-45)
7. Die height indicator
8. Over-run safety device
9. Overload pump
10. Grease pump
11. Slide balance cylinder
12. Anti-vibration pads
1. Die cushion
2. Safety light curtain
3. Motor speed drive (inverter)
4. Quick die change device
5. Tonnage monitor
6. NC servo feeder and uncoiler
