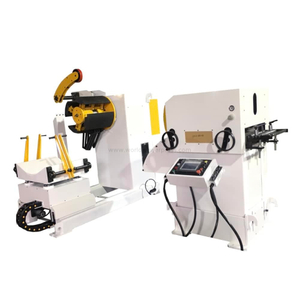

Full Automatic Compact Coil Feeder with Uncoiling Machine

Compact Coil Feeder with Uncoiling And Straightening Machines

Roll Feed Sheet Metal Coil Press Servo Feeder

NCF Coil Roll Feeder for Sheet Automatic Feeding To Press

Metal Coil Roll Feed Automatic Press Feeder

Servo Motor Drive Coil NC Feeder for Press

0.2-4.5mm Thickness Coil Servo Feeder

400mm Roll Type Metal Sheet NC Coil Feeder Machine

Roller Type Coil Feeding Metal Strip NC Feeder for Punching Press

Roll Coil Feeder Machine for Sheet Thickness 4.5mm Feeding

Press Roll Feeder Machine for Feeding Metal Sheet

NCF Series Servo NC Coil Roll Feeding Machines for Press

NCF Series Metal Strip Roll Feeder for Sale

Press Roll Feeder for Metal Coil Automatic Feeding into Punching Area

4.5mm Thickness Coil Roll Feeding Machine for Press

Roll Type Coil Feeder for Sheet Metal Feeding To Power Press

Servo And NC Control Press Roll Feeder for strip feeding

Share to:

Zig Zag Servo NC Roll Feeding Machine

Zig zag feeder is suitable for automatic circle blanking line, speed can be 60 times per minute. This zigzag feeding machine can finish many shifts zigzag movements. It can save material 7% for one time zigzag movement. And the movement tolerance is within 0.08mm.

Availability:

Quantity:


Inquire Add to Basket

Model: NCFZ

Technical Parameters

Model No	NCFZ-200	NCFZ-300	NCFZ-400	NCFZ-500	NCFZ-600	NCFZ-700	NCFZ-800	NCFZ-1000	NCFZ-1300	NCFZ-1500
Material thickness	0.2-3.2mm 0.5-5.0mm	0.2-3.2mm 0.5-5.0mm	0.2-3.2mm 0.5-5.0mm	0.2-3.2mm 0.5-5.0mm	0.2-3.2mm 0.5-5.0mm	0.2-3.2mm 0.5-5.0mm	0.2-3.2mm 0.5-5.0mm	0.2-3.2mm 0.5-5.0mm	0.2-3.2mm 0.5-5.0mm	0.2-3.2mm 0.5-5.0mm
Material width	200mm	300mm	400mm	500mm	600mm	700mm	800mm	1000mm	1300mm	1600mm
Max. feeding length	9999mm	9999mm	9999mm	9999mm	9999mm	9999mm	9999mm	9999mm	9999mm	9999mm
PLC	MITSUBISHI	MITSUBISHI	MITSUBISHI	MITSUBISHI	MITSUBISHI	MITSUBISHI	MITSUBISHI	MITSUBISHI	MITSUBISHI	MITSUBISHI
Servo motor	YASKAWA	YASKAWA	YASKAWA	YASKAWA	YASKAWA	YASKAWA	YASKAWA	YASKAWA	YASKAWA	YASKAWA
Release type	Mechanical /pneumatic	Mechanical/ pneumatic	Mechanical/ pneumatic	pneumatic	pneumatic	pneumatic	pneumatic	pneumatic	pneumatic	pneumatic
