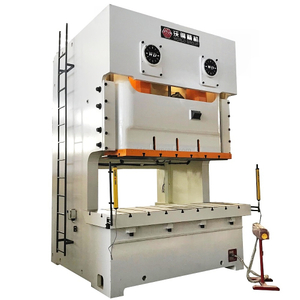

Progressive Die Stamping Two Points 200ton H Frame Press

JW36-200 is a mono block type straight side press. The table size can reach 2200mm by 900mm. And the table size could be a little bigger according to customer's request. This feature ensures the press adopt to progressive die stamping. It can also work with multi-station tools, such as washing machine turbines production. Automatic accessories include hydraulic die clamps, coil feeders and de-coilers.

Basic parameters:

Press model: JW36-200

Nominal capacity: 200tonnes

Press stroke: 250mm

Stroke speeds: 35spm

Die shut height: 500mm (customizable)

Slider adjustment: 110mm

Working bolster size: 2200x900mm

Slider plate size: 1900x800mm

Side openning: 900x450mm

Main motor power: 22kw

Press weight: 31500kg

Standard equipment list:

PLC (Omron/Siemens/Mitsubishi)

HMI (Kinco/Siemens)

Pneumatic clutch and brake (World)

Dual-safety valve for clutch (Toyooki/World/Ross)

Slide height adjust motor

Die height indicator

Counterweight balance cylinder

Central grease lubricant system with detective function

Mis-feeding protection

Overload protection system with reset switch

Movable electric cabinet

Two-hand-button control T stand

Optional accessories:

Safety light barriers

Inverter for adjustable stroke speeds

Foot pedal

Slide knock-out device

Tonnage monitor

Die cushion

Quick die change device

Coil feeding machines

Transfer bar (2-3 axis)

Manipulator

Thin-oil lubrication system

Shipment information:

Package: steel box open top, with water-proof cover

Shipment by bulk vessel (under deck)

HS Code: 84626290
