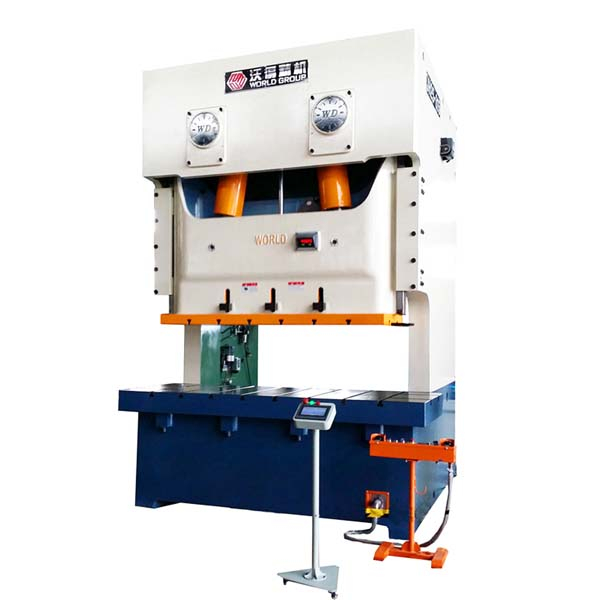

Two Points Crank Type 300ton Gap Frame Press

JH25-315 is the biggest c type two points press. The press tonnage is 3150kN. Optimized c frame steel welded body. Annealing treatment to release the welding stress. Press is controlled by PLC and encoder with cam controller. Oil bath wet type clutch with safety solenoid valve. Hydraulic overload protection. The big size working bolster is good for progressive die stamping. It can also work with press transfer system and multi-station tools. Six faces slide guides have higher precision.

Basic parameters:

Press model: JH25-315

Press nominal capacity: 3150kN

Stroke length: 280mm

Tonnage stroke point: 7mm

Bolster size: 2800x940mm

Slider bottom size: 2100x700mm

Max. Die shut height: 550mm

Slide adjustment: 120mm

Main motor power: 37kw

Standard equipment:

Pneumatic clutch and brake

PLC control

HMI with touch screen in English version

Safety valve for clutch

Overload protection system

Slide adjustment motor with die height indicator

Movable electric cabinet

Hand button control panel with foot pedal

Anti-vibration pads

Slide and upper die counterweight balance cylinder

Optional accessories:

Safety light barriers

Inverter for adjustable stroke speeds

Die cushion

Quick die change device

Automatic coil feeding machines

Manipulator

Tonnage monitor
