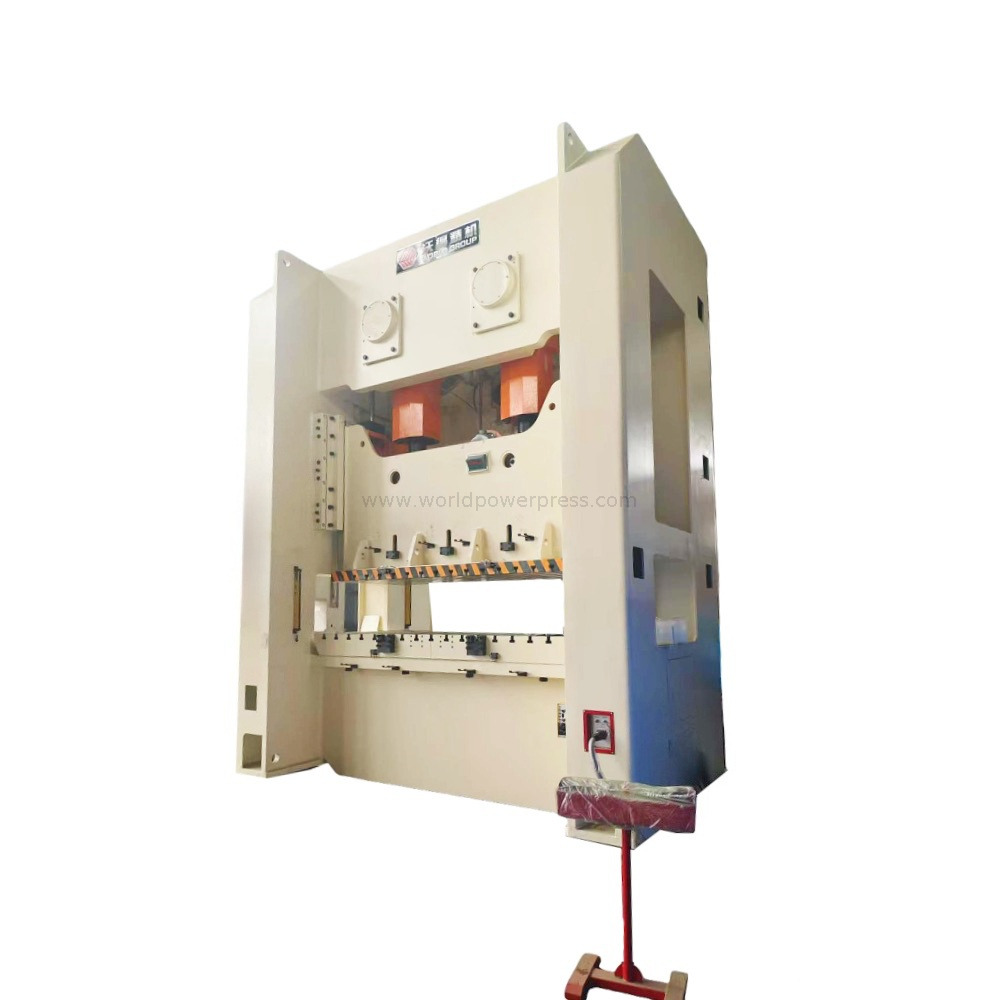

Two Points 250ton H Type Automatic Press Machine

Descriptions:

JW36-250 is double crank press with h frame body. The body is mono block type and the slider is moving in the middle. The press adopts wet type clutch with lower noise and less dirty. More suitable for White household appliances stamping parts production. PLC control, HMI with touch screen. T stand with two-hand buttons. Hydraulic overload protection, automatic grease lubrication. It is really an automatic press machine to work with coil feeding line.

1. Mono-block steel welded body, shipment assembled, easy for installation.

2. Installation and tranining supports available.

3. One year warranty.

4. Automation inputs outputs available.

5. CE safety certificate.

6. More than 2-decades manufacturing experience in this type of press.

7. Custom parameters.

8. Client representative Inspection before shipment available.


Basic parameters:

Press machine model: JW36-250

Nominal capacity: 250ton

Stroke length: 280mm

Stroke speed: 30spm

Die shut height: 430-550mm

Table size: 2500x1000mm

Ram size: 2200x900mm

Main motor power: 30kw

Machine weight: 39ton

Standard equipment list:

PLC (Omron/Siemens/Mitsubishi)

HMI (Kinco/Siemens)

Pneumatic clutch and brake (World)

Dual-safety valve for clutch (Toyooki/World/Ross)

Slide height adjust motor

Die height indicator

Counterweight balance cylinder

Central grease lubricant system with detective function

Mis-feeding protection

Overload protection system with reset switch

Movable electric cabinet

Two-hand-button control T stand

Optional accessories:

Safety light barriers

Inverter for adjustable stroke speeds

Foot pedal

Slide knock-out device

Tonnage monitor

Die cushion

Quick die change device

Coil feeding machines

Transfer bar (2-3 axis)

Manipulator

Thin-oil lubrication system

Shipment information:

Package: steel box open top, with water-proof cover

Shipment by bulk vessel (under deck)

HS Code: 84626290
