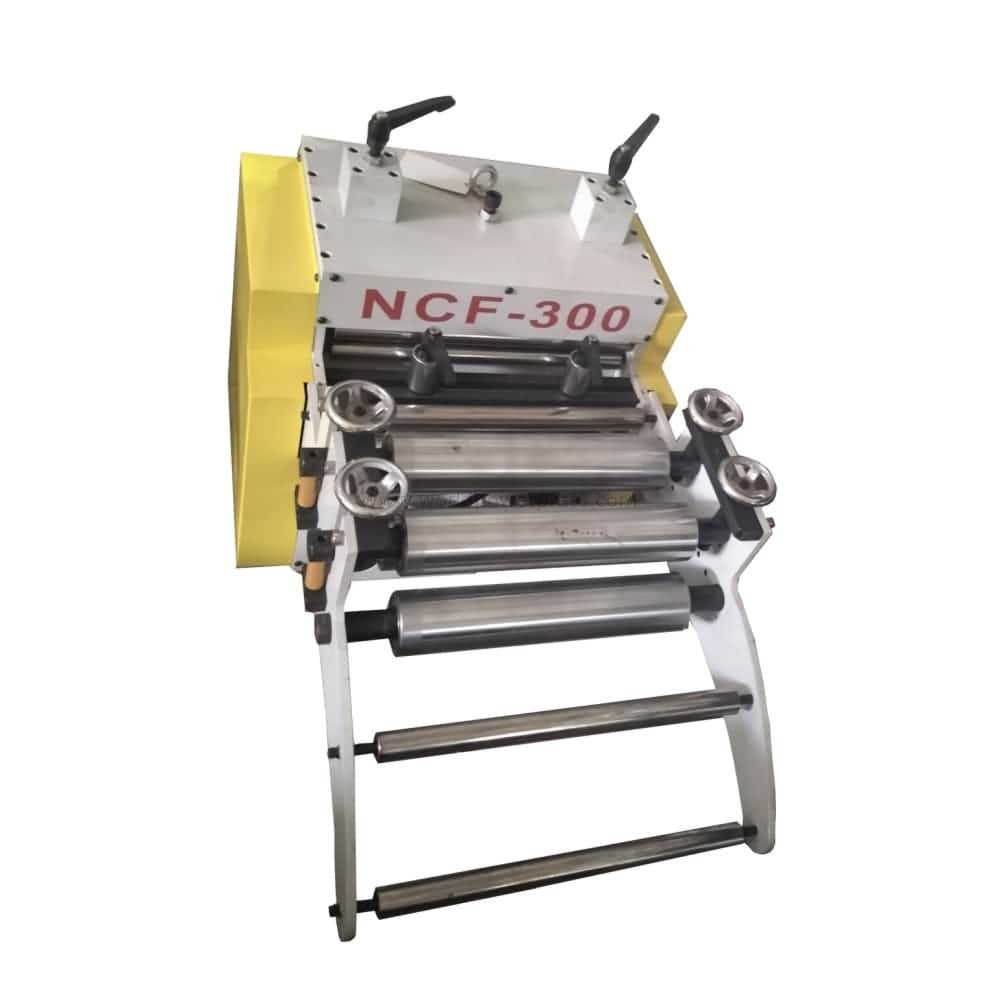

NCF
1) Standard servo feeder combines with straightening rollers.
2) Coil is pull through the straighening rollers for leveling.
3) High precision feeding: Aiming at the arrival of hi-tech industry, it is controlled by computer closed-circuit feedback system. So that the precision can maintain within +/-0.03mm.
4) Phase-style feeding function: It can input 10 groups of different feeding length, each group provides punching for 999 times to satisfy the processing and production of special products
5) High efficiency release device: It can set up release angle quickly, only match cam signal
6) Feeding length setting: Input feed length on the controller panel directly.
7) Feeding unit: The roll adopts middle-hollow style. Being light and with low inertia for electroplate. The surface hardness HRC is 60 and hard chrome plated.
No. | Item | NCF-200 | NCF-300 | |
1 | Material Max. Width(mm) | 200 | 300 | |
2 | Material thickness range(mm) | 0.2-2.2 | 0.2-3.2 | |
3 | Max. Feeding length | 9999mm | ||
4 | Feeding speed | 20m/min | ||
5 | Servo motor | 1.3KW YASKAWA, JAPAN | 1.8KW YASKAWA, JAPAN | |
6 | Pull through type straightener part | 5pcs straightening rollers (upper 2pcs/lower 3pcs) | ||
7 | PLC | MITSUBISHI, JAPAN | ||
8 | Low voltage components | SCHNEIDER | ||
9 | HMI | WEINVIEW, TAIWAN | ||
10 | AC voltage | 3 phase 220V 60HZ | 3 phase 600V 60HZ | |
1) Standard servo feeder combines with straightening rollers.
2) Coil is pull through the straighening rollers for leveling.
3) High precision feeding: Aiming at the arrival of hi-tech industry, it is controlled by computer closed-circuit feedback system. So that the precision can maintain within +/-0.03mm.
4) Phase-style feeding function: It can input 10 groups of different feeding length, each group provides punching for 999 times to satisfy the processing and production of special products
5) High efficiency release device: It can set up release angle quickly, only match cam signal
6) Feeding length setting: Input feed length on the controller panel directly.
7) Feeding unit: The roll adopts middle-hollow style. Being light and with low inertia for electroplate. The surface hardness HRC is 60 and hard chrome plated.
No. | Item | NCF-200 | NCF-300 | |
1 | Material Max. Width(mm) | 200 | 300 | |
2 | Material thickness range(mm) | 0.2-2.2 | 0.2-3.2 | |
3 | Max. Feeding length | 9999mm | ||
4 | Feeding speed | 20m/min | ||
5 | Servo motor | 1.3KW YASKAWA, JAPAN | 1.8KW YASKAWA, JAPAN | |
6 | Pull through type straightener part | 5pcs straightening rollers (upper 2pcs/lower 3pcs) | ||
7 | PLC | MITSUBISHI, JAPAN | ||
8 | Low voltage components | SCHNEIDER | ||
9 | HMI | WEINVIEW, TAIWAN | ||
10 | AC voltage | 3 phase 220V 60HZ | 3 phase 600V 60HZ | |
