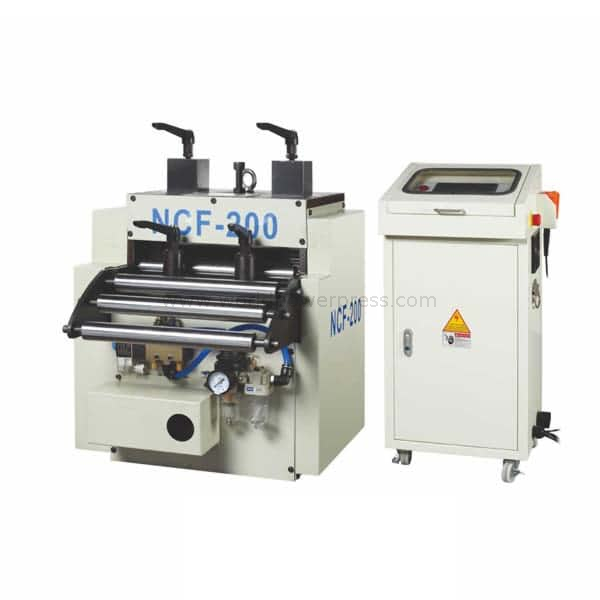

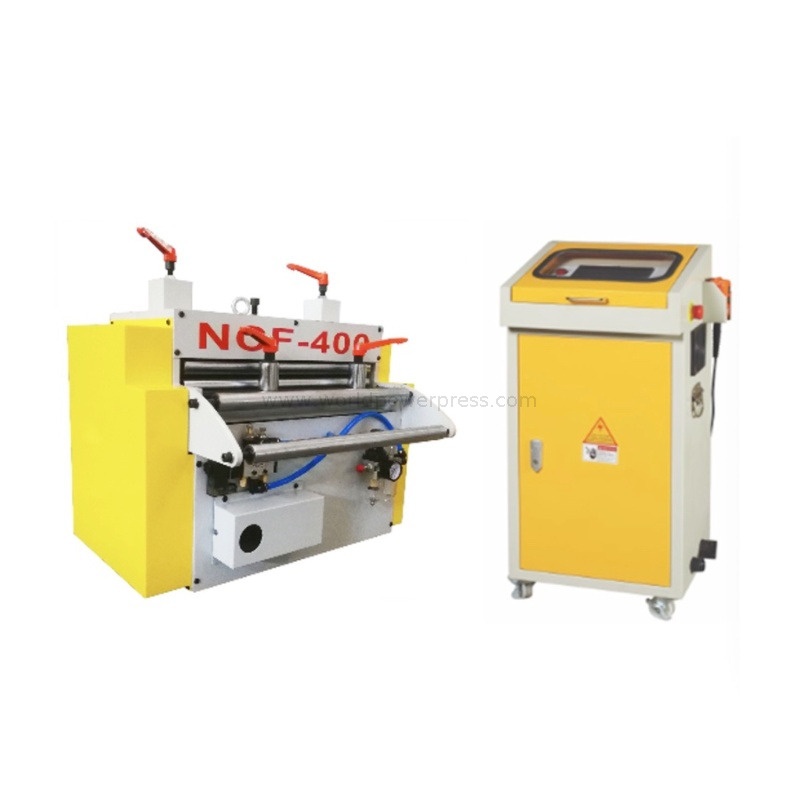

Press Roll Feeder Machine for Feeding Metal Sheet

For coil feeding, coil thickness up to 4.5mm and width up to 2000mm. Servo motor drive, NC control. LCD HMI. Hard surface rollers. Reliable electric parts. CE safety standard.
Availability:
Quantity:
Inquire Add to Basket

  • NCF

  • WORLD


coil feeding line with press

control panel of feeder-2

press roll feeder machine specifications:

Model No NCF-100 NCF-200 NCF-300 NCF-400 NCF-500 NCF-600 NCF-700 NCF-800
Material thickness 0.2-2.2mm
Material width 100mm 200mm 300mm 400mm 500mm 600mm 700mm 800mm
Max. feeding length 9999mm
Feeding speed 20m/min
PLC MITSUBISHI
Servo motor YASKAWA
Release type Mechanical Mechanical/pneumatic pneumatic
Model No NCF-100 NCF-200 NCF-300 NCF-400 NCF-500 NCF-600 NCF-700 NCF-800 NCF-1000
Material thickness 0.2-3.2mm
Material width 100mm 200mm 300mm 400mm 500mm 600mm 700mm 800mm 1000mm
Max. feeding length 9999mm
Feeding speed 20m/min
PLC MITSUBISHI
Servo motor YASKAWA
Release type Mechanical Mechanical/pneumatic
 pneumatic
Model No NCF-100 NCF-200 NCF-300 NCF-400 NCF-500 NCF-600 NCF-700 NCF-800
Material thickness 0.2-4.5mm
Material width 100mm 200mm 300mm 400mm 500mm 600mm 700mm 800mm
Max. feeding length 9999mm
Feeding speed 20m/min
PLC MITSUBISHI
Servo motor YASKAWA
Release type Mechanical Mechanical/pneumatic
 pneumatic


Previous:
Next:
plate feeding machines press roll feeder machine roll feeder high-quality coil feeder press roll feeder advantages for NC coil feeder roll feeder machine sheet metal feeding machine sheet metal roll feeder coil feeders
