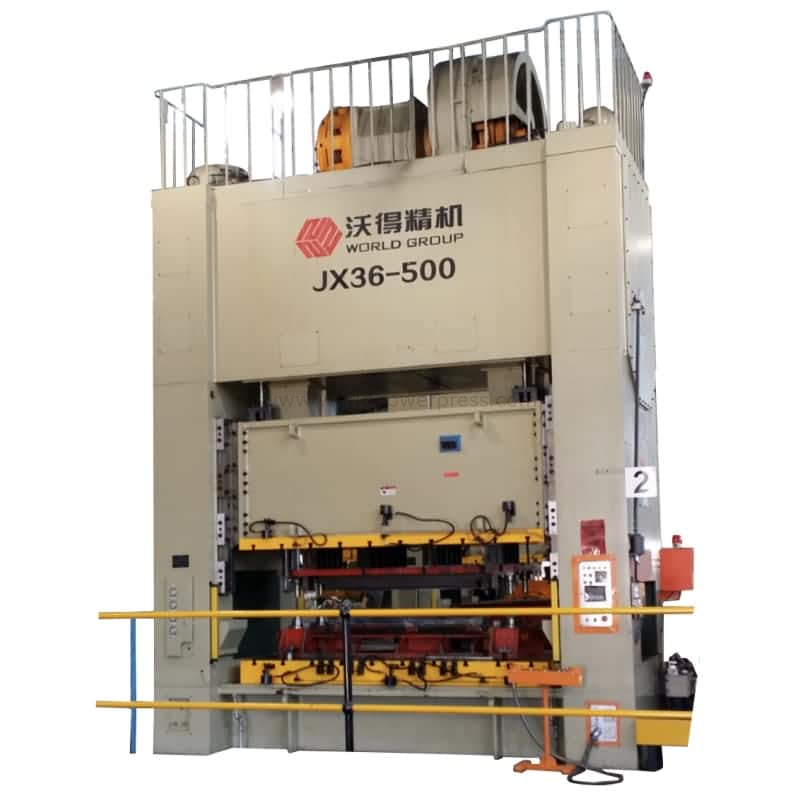

JX36-500
WORLD
-Applicable for thick plate stamping
-Applicable for truck chassis parts stamping
-Optimized structure, compact and strong
-PLC control, 99 pcs die parameters stock
-steel welded frames, heat treatment for strength and rigidness
-double crankshafts, left to right location
-wide bolster, suitable for progressive die stamping
-tie-rod frames, easy for shipment
-dry type pneumatic clutch and brake
 Strong structure of tie rod double crank stamping press1.The main structure is close type H frame, including the crown, slide, columns and base. 4 pieces tie rods fix all the parts tightly. 2. Location pins are used to install the crown, columns and base to ensure the precise frame location. 3. The crown, slide, base, columns and bolster are all box type welded structures with temperature treatment and sand blasting treatment. High rigidity and nice surface for painting. 4. Optimized structure design ensures the stability and precision during future long time working. 5. Enough maintenance and inspection space are considered in the original foundation design. |
 Double crank power press transmission system1. Separated clutch and brake, dry clutch. 2. With dual-safety solenoid valve. 3. Both electric cam controller and mechanical cam controller, dual safety. 4. Bearing inside with lubrication. 5. Floating type clutch block. Adjust the gaskets longer the service life of clutch blocks. |
-Applicable for thick plate stamping
-Applicable for truck chassis parts stamping
-Optimized structure, compact and strong
-PLC control, 99 pcs die parameters stock
-steel welded frames, heat treatment for strength and rigidness
-double crankshafts, left to right location
-wide bolster, suitable for progressive die stamping
-tie-rod frames, easy for shipment
-dry type pneumatic clutch and brake
Strong structure of tie rod double crank stamping press1.The main structure is close type H frame, including the crown, slide, columns and base. 4 pieces tie rods fix all the parts tightly. 2. Location pins are used to install the crown, columns and base to ensure the precise frame location. 3. The crown, slide, base, columns and bolster are all box type welded structures with temperature treatment and sand blasting treatment. High rigidity and nice surface for painting. 4. Optimized structure design ensures the stability and precision during future long time working. 5. Enough maintenance and inspection space are considered in the original foundation design. |
Double crank power press transmission system1. Separated clutch and brake, dry clutch. 2. With dual-safety solenoid valve. 3. Both electric cam controller and mechanical cam controller, dual safety. 4. Bearing inside with lubrication. 5. Floating type clutch block. Adjust the gaskets longer the service life of clutch blocks. |
