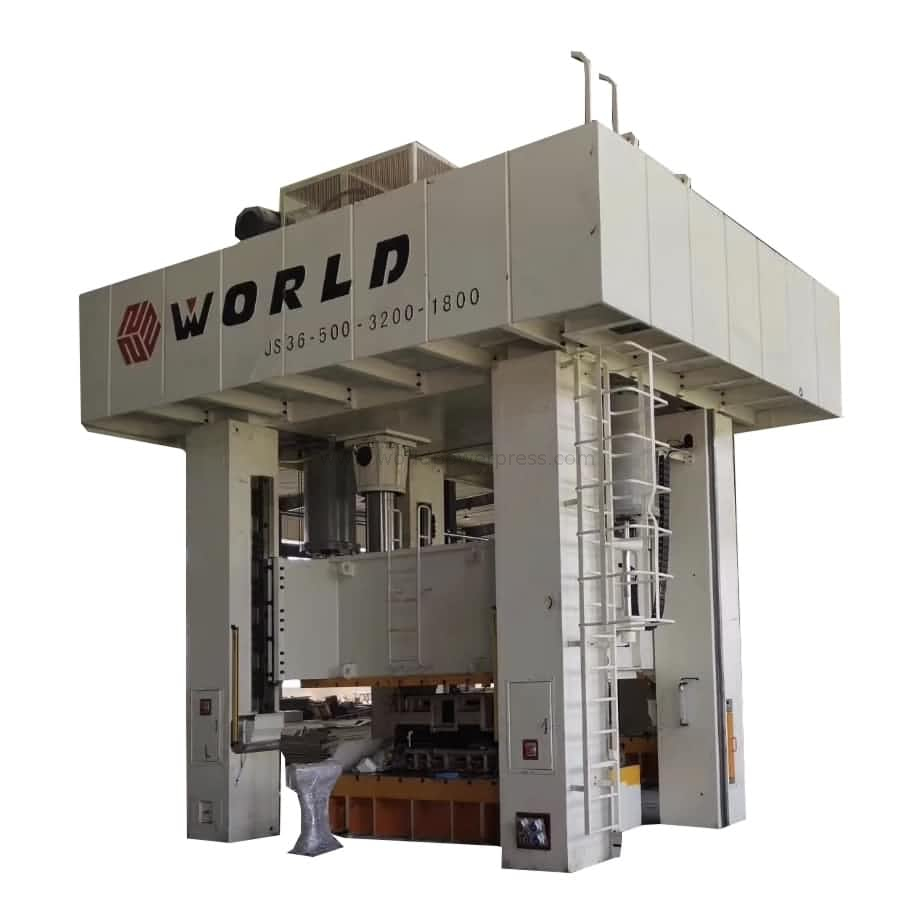

500ton Two Points Striaght Side Stamping Press

500ton straight side stamping press features:

1. This 500-ton straight side stamping press adopts a high-rigidity tie-rod integrated structure, where the top beam, slide, four columns and base are precisely locked and fixed by pre-tensioned tie rods. This design effectively disperses stamping impact force, minimizes frame deflection even under long-term full-load operation, and delivers far higher structural stability than conventional frame presses.

2. It is equipped with a heavy-duty eccentric gears transmission system paired with two symmetrically arranged con-rods, which evenly distributes driving force to both sides of the slide, eliminating eccentric load deviation and ensuring consistent parallelism throughout the entire stamping stroke.

3. Four independent slide balance cylinders are installed to offset the dead weight of the slide and upper die, effectively eliminating clearance impact during high-speed operation, reducing transmission component wear, and guaranteeing ultra-smooth, zero-jitter slide movement.

4. The press features an extra-long stroke length and an extended rated tonnage distance, which maintains full 500-ton output across a larger downward travel range. This makes it perfectly suited for deep drawing of large thick-plate parts, complex deep forming and multi-process progressive stamping tasks that require long full-force working ranges.

5. Fitted with a high-response dry type clutch and brake combination, it offers fast actuation, low heat generation, no oil leakage risk and a long maintenance cycle. For maximum application flexibility, it also provides optional configurations including a hydraulic cushion, a motorized movable table for fast die change, and fully customizable bolster size to perfectly match your existing tooling layout.

Detail photos:

Crown of two points gear press 1. Main motor drive system ensures the slide nominal capacity at the force points. 2. Separate type pneumatic clutch and brake, safe and reliable. 3. Flywheel is mounted on the support bush in the press body. Flywheel drive shaft only transfers the working torque without the bending load caused by flywheel self-weight. 4. Clutch and brake use imported famous brand safety solenoid valve with abnormal monitor function. 5. Both mechanical and electric cam controllers are adopted. With anti-repeat stroke function at single stroke working mode. 6. Main drive system uses V belt. Upper drive, transmission gears counterrotating, with guide bushes and poles. 7. Transmission gear rings, wheel hubs and wheel spokes are welded together and then by annealing treatment. Forged gear ring, gear surface hardness treatment and then grinding.

Automatic gear press line for auto parts stampimg JS36 two points gear press is widely used for auto parts stamping, such as the engine hood, door, roof etc. The automatic press line includes one unit 1250t press, 3 units 800t presses. Bigger line has a 1600t gear press or hydraulic press in the head. Smaller line includes 800ton, 630ton, 630ton and 400ton press.

Automatic options for gear press machine 1. Single movable table, double left to right movable working tables, T type movable bolsters. 2. Air cushion, fixed stroke or adjustable stroke length, with or without lock function 3. Hydraulic die clamps 4. Tonnage monitor 5. Transfer robots
