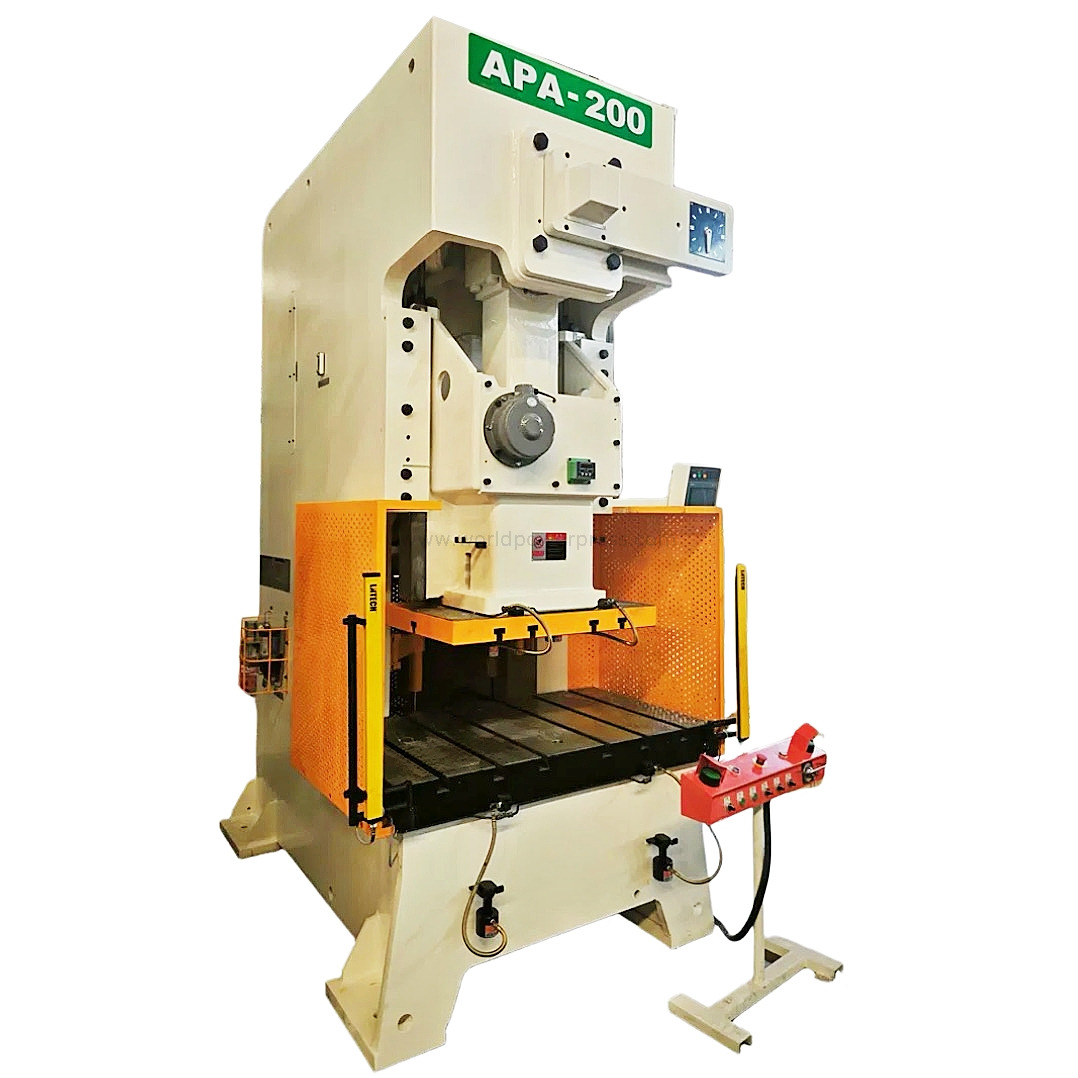

APA-200 Gap-frame Crank Type Eccentric Press with Pneumatic Clutch

APA-200 Crank Press: Built for High-Efficiency, Reliable Stamping

Engineered to meet the strict JIS Class 1 precision standards, this single crank press delivers exceptional parallelism and perpendicularity for consistent, high-quality stamping results. Its one-piece welded steel body, reinforced by heat treatment and sandblasting, paired with high-grade bull gears and crankshaft with long-lasting bronze bushes, guarantees outstanding rigidity and years of trouble-free operation.

Fully prepared for smart factory integration, its PLC-centralized automation interface works seamlessly with servo feeders, robotic manipulators and other peripheral equipment. The user-centric design cuts downtime drastically: dry-type clutch friction plates can be replaced in minutes, while the HMI-programmable automatic grease lubrication system with fault alarm simplifies daily maintenance.

Operation is made intuitive with an English touchscreen HMI, two-hand safety control and motorized die height adjustment. A complete set of standard safety features including front light barriers, over-run alarm and anti-repeat stroke function provides all-round protection for every operator on the production line.

APA-200 Eccentric Press Standard Configurations:

1. OMPI dry type clutch and brake

2. Chinese brand main motor and brake motor for slide height adjustment

3. Delta PLC and HMI

4. Dual-safety valve for clutch and brake system

5. Showa brand hydraulic overload protection pump

6. Electric grease pump with distributor

7. Die height digital indicator

8. Balance cylinders for slide counterweight

9. Isolation pads

10. Safety light barriers

11. Frequency inverter

12. Two-hand-button control panel

APA-200 Crank Type Press Optional Accessories:

1. Die cushion (piston type)

2. Physical safety fence

3. Die safety block

4. Tonnage monitor

5. Quick die change device (hydraulic die clamps, roller type die lifters)

6. NC servo roller feeder, uncoiler

7. Manipulator and industrial robot

Why Make the APA-200 Press Your Stamping Workhorse?

We stand firmly behind the quality of the APA-110 press with a comprehensive one-year warranty, where all eligible replacement parts are provided completely free of charge during the coverage period.

Our professional support team delivers fast, responsive online technical guidance and after-sales service, so you never face operational issues alone.

Enjoy industry-leading delivery speed: standard configurations are kept in ready stock for immediate dispatch, and custom orders are guaranteed to ship within 30 days after order confirmation.

Every critical electrical component follows global universal specifications, meaning you can easily source replacements locally in your own market without long waits for international shipping.

Even years after your purchase, we maintain consistent long-term spare parts supply to keep your press running at peak performance.

The entire machine is strictly certified to comply with CE safety standards under the EU Machinery Directive, delivering full compliance and peace of mind for your production site.
