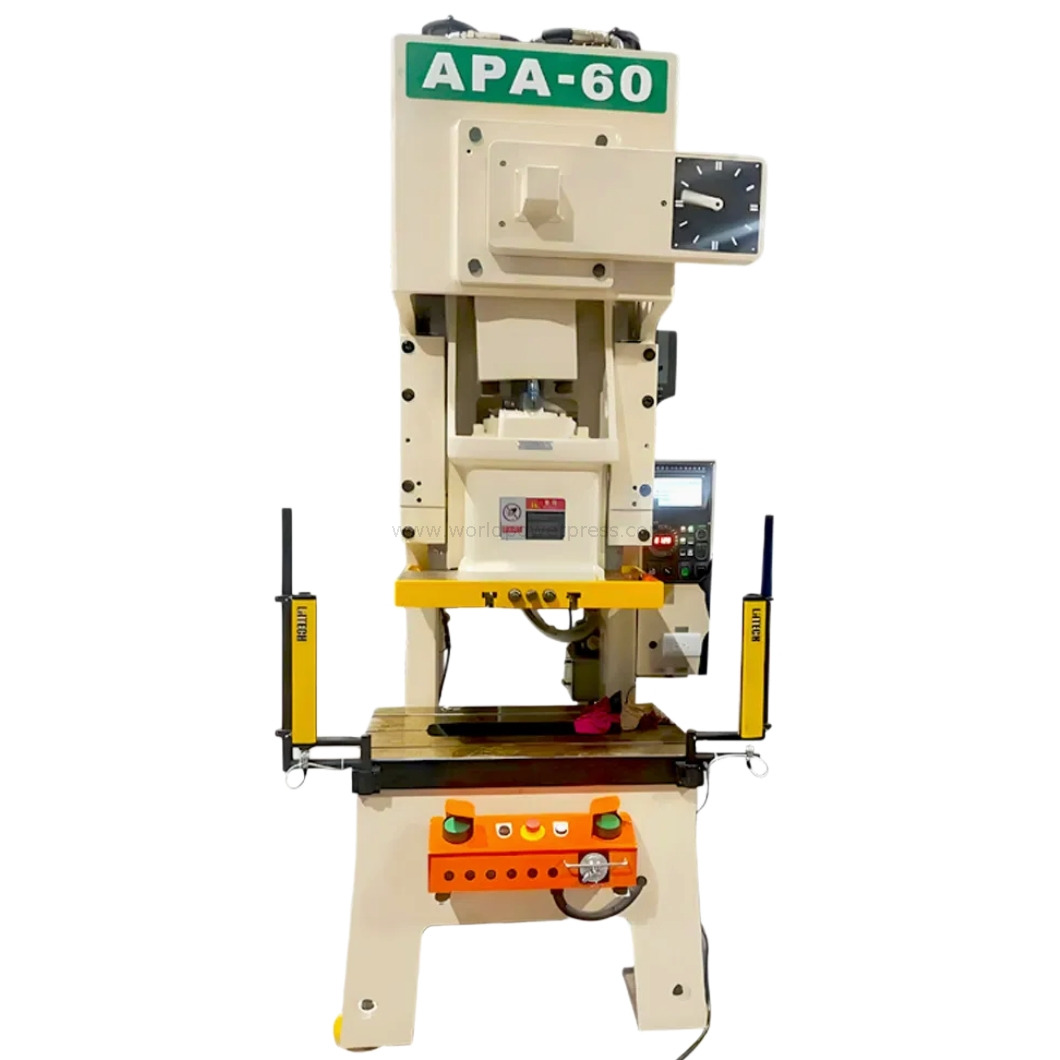

APA-60 C-frame Mechanical Stamping Press with Pneumatic Clutch

Main Features of APA-60 Mechanical Press:

1. Single-piece C-frame steel plate welded body, heat treatment and sand blasting, high rigidity and weleding stress released.

2. Famous brand dry type clutch and brake, easy maintenance, stable performance.

3. Six-sided rectangular slide guide ribs, with bronze plates, high precision, JIS standard I.

4. PLC central controlled automatic grease lubrication system, with pulse detection.

5. Slide and upper die counterweight balance pneumatic cylinder, smooth moving of the slide.

6. Automation I/O integrated in PLC, can work with servo feeder and other external automatic accessories.

APA-60 Press Standard Configurations:

1.  Delta brand PLC and HMI (touch screen)

2. Toyooko/Azbil brand dual-safety clutch for clutch

3. Showa brand overload pump

4. NF brand grease pump

5. OMPI brand dry clutch and brake

6. Scheneider brand low-voltage electric parts

7. Chinese frequency inverter

8. Safety light barriers

9. Four pieces isolation mounting pads

APA-60 Press Options:

1. Die cushion (piston type)

2. Quick die change device (hydraulic die clamps and die lifters)

3. NC servo feeder

4. Manipulator

APA-60 Press Package and Shipment:

1. Package type: steel pallet with water-proof clothes

2. Package Size: 3100x1300x1900mm

3. Gross Weight: 4600kg

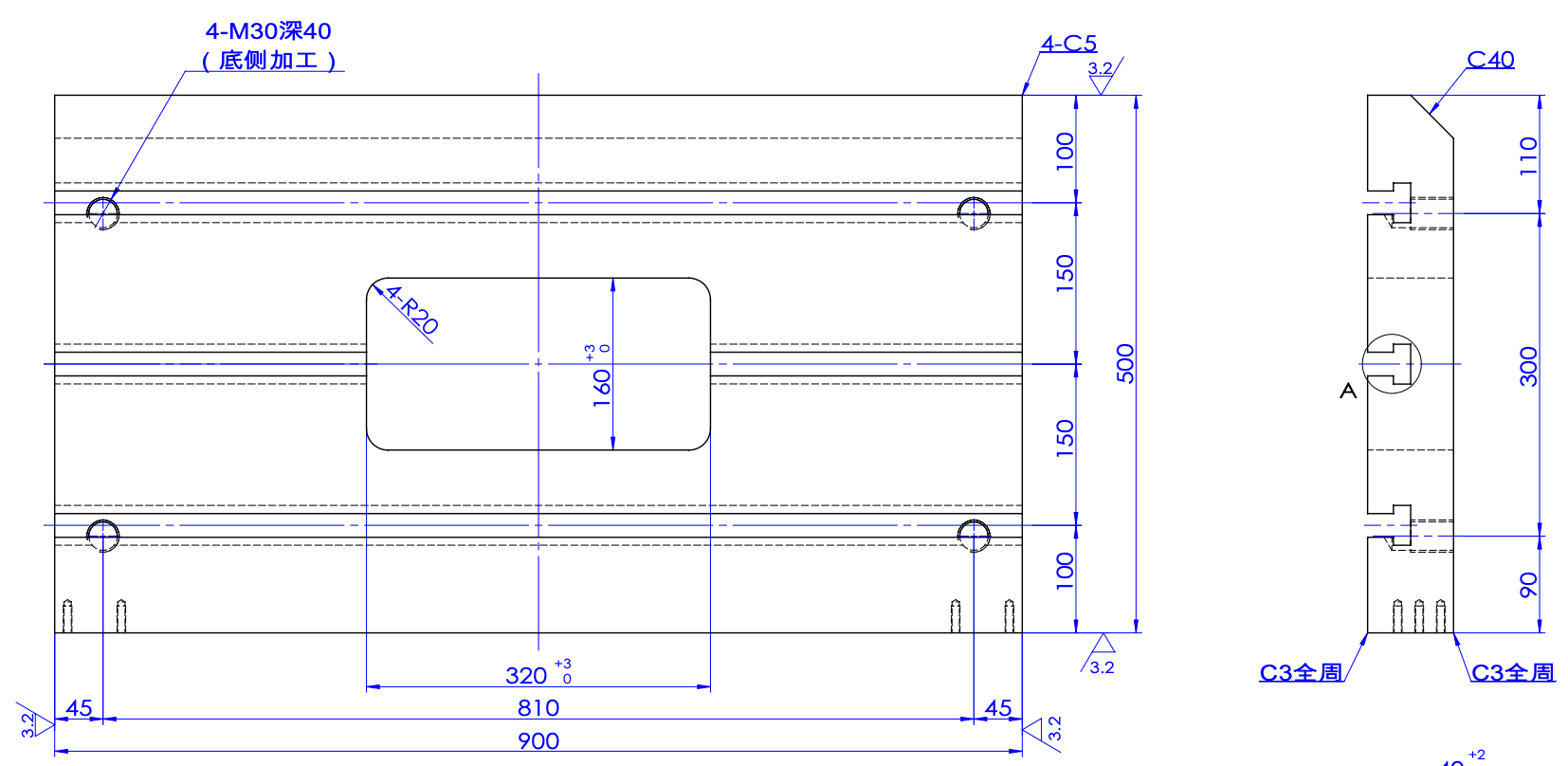

Standard Tabe Layout:
