JH21-60L
WORLD

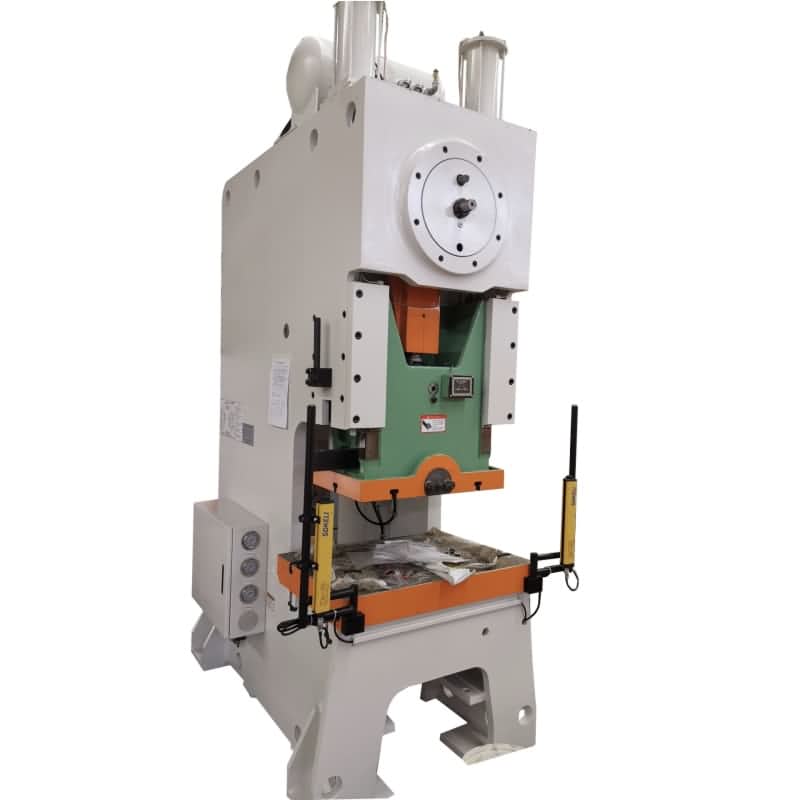

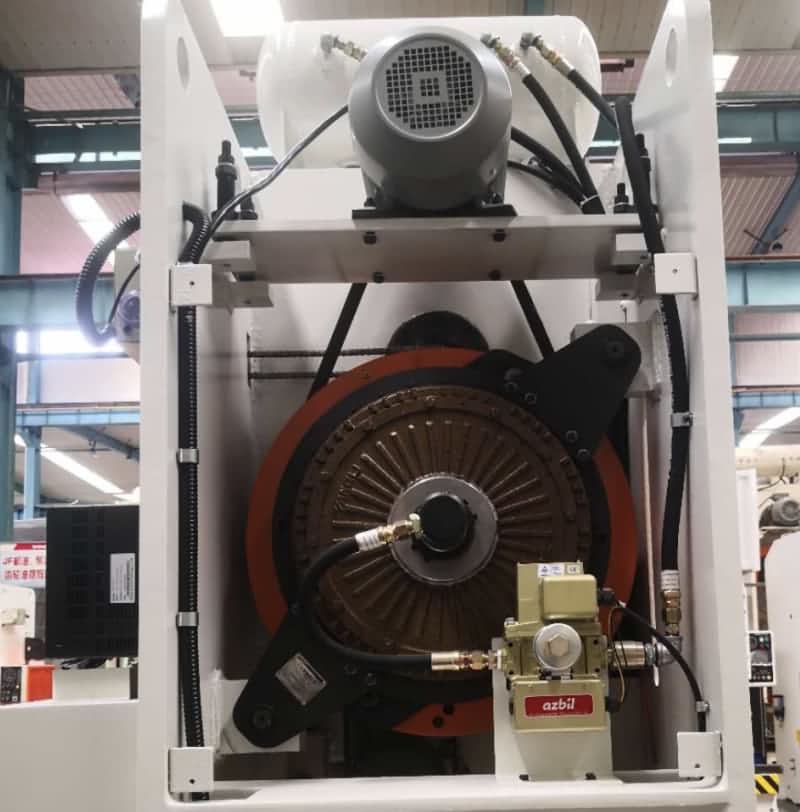

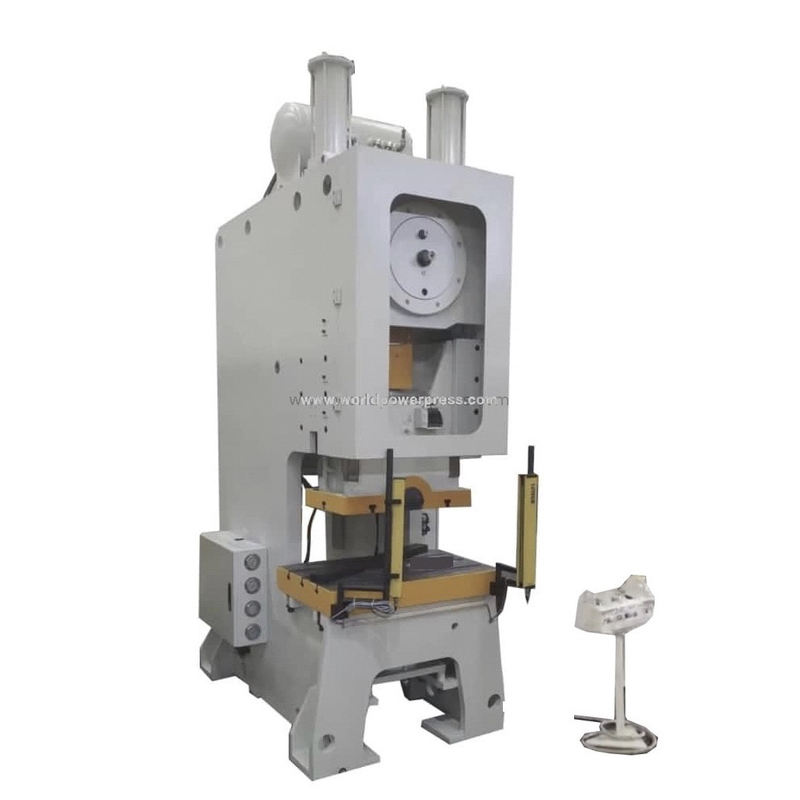

This stroke adjustable press machine adopts steel welded frame. Dry type clutch and brake. Automatic thin oil lubrication. Hydraulic overload protection. Stroke adjustable mechanism is installed on the crankshaft. Suitable for different height molds on one press machine. Famous brand low voltage electric parts ensure high reliability. It can work automatically with coil strip feeder.
| JH21-60L | ||||
| Capacity | kN | 600 | ||
| Nominal Stroke | mm | 4 | ||
| Slide Stroke | mm | 10-150 | ||
| SPM | Fixed | min-1 | 70 | |
| Variable | min-1 | 60-80 | ||
| Max. Die Height | mm | 300 | ||
| Die Height Adjustment | mm | 80 | ||
| Throat Depth | mm | 300 | ||
| Between Columns | mm | 620 | ||
| Bolster | LR | mm | 900 | |
| FB | mm | 580 | ||
| Thk | mm | 110 | ||
| Bolster Opening | mm | φ200×40 | ||
| (Up Hole Dia.×Dpth×Low Hole Dia.) | ×φ180 | |||
| Slide Area | LR | mm | 680 | |
| FB | mm | 400 | ||
| Shank Hole | Dia. | mm | φ50 | |
| Dpth | mm | 80 | ||
| Main Motor Power | kW | 7.5 | ||
| Dimensions | FB | mm | 1680 | |
| LR | mm | 1260 | ||
| H | mm | 3050 | ||
| Net Weight | kg | 6500 | ||
This stroke adjustable press machine adopts steel welded frame. Dry type clutch and brake. Automatic thin oil lubrication. Hydraulic overload protection. Stroke adjustable mechanism is installed on the crankshaft. Suitable for different height molds on one press machine. Famous brand low voltage electric parts ensure high reliability. It can work automatically with coil strip feeder.
| JH21-60L | ||||
| Capacity | kN | 600 | ||
| Nominal Stroke | mm | 4 | ||
| Slide Stroke | mm | 10-150 | ||
| SPM | Fixed | min-1 | 70 | |
| Variable | min-1 | 60-80 | ||
| Max. Die Height | mm | 300 | ||
| Die Height Adjustment | mm | 80 | ||
| Throat Depth | mm | 300 | ||
| Between Columns | mm | 620 | ||
| Bolster | LR | mm | 900 | |
| FB | mm | 580 | ||
| Thk | mm | 110 | ||
| Bolster Opening | mm | φ200×40 | ||
| (Up Hole Dia.×Dpth×Low Hole Dia.) | ×φ180 | |||
| Slide Area | LR | mm | 680 | |
| FB | mm | 400 | ||
| Shank Hole | Dia. | mm | φ50 | |
| Dpth | mm | 80 | ||
| Main Motor Power | kW | 7.5 | ||
| Dimensions | FB | mm | 1680 | |
| LR | mm | 1260 | ||
| H | mm | 3050 | ||
| Net Weight | kg | 6500 | ||
