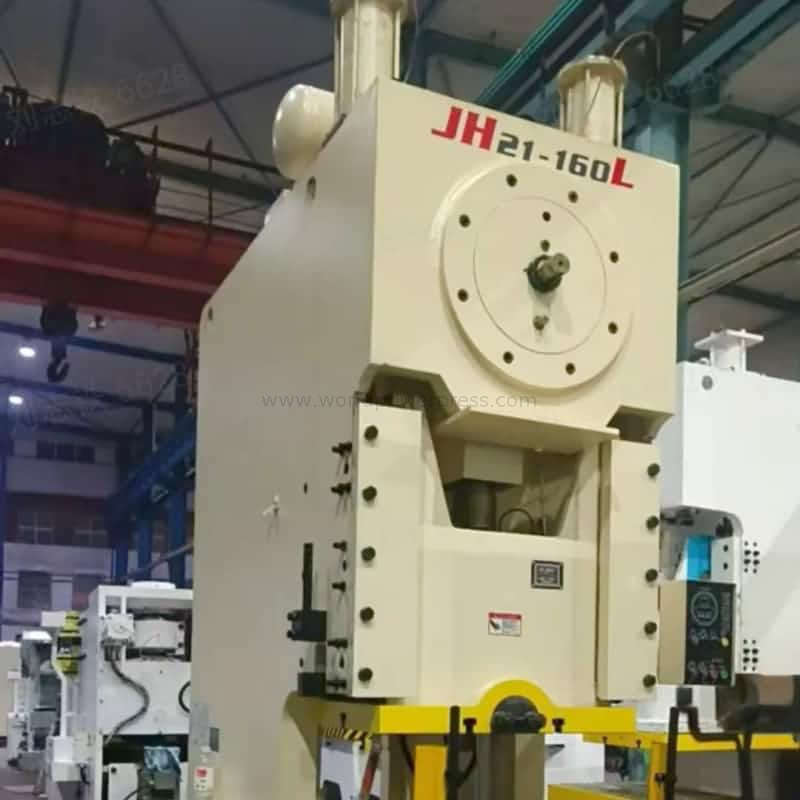

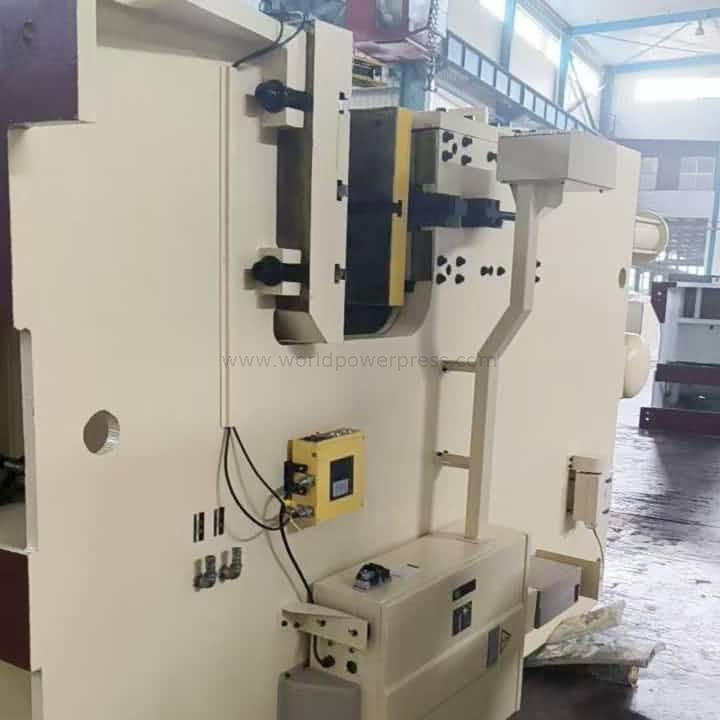

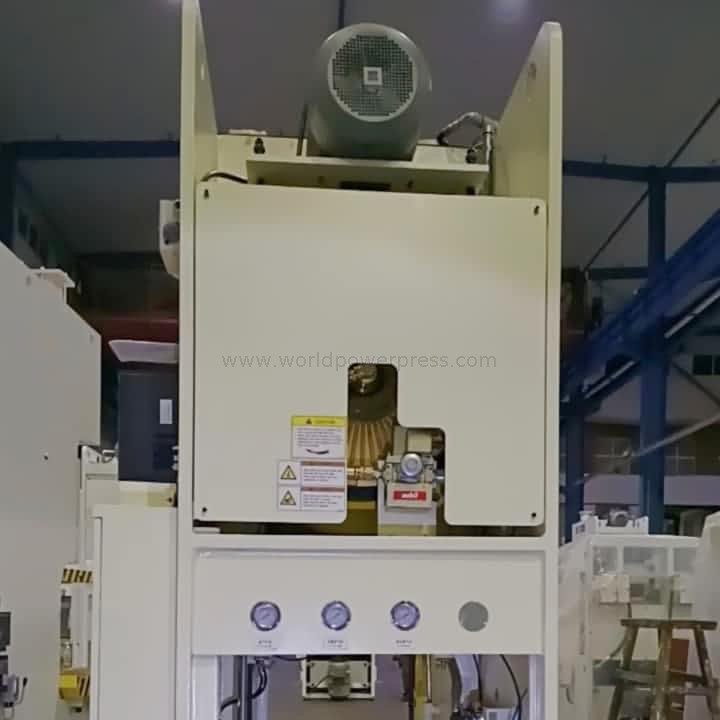

JH21-160L
-8 faces ram guide rails, higher precision
-C frame steel welded body
-stroke lenght is manually adjustable: 16/44/81/114/138/155/160mm
-PLC control, dry type clutch

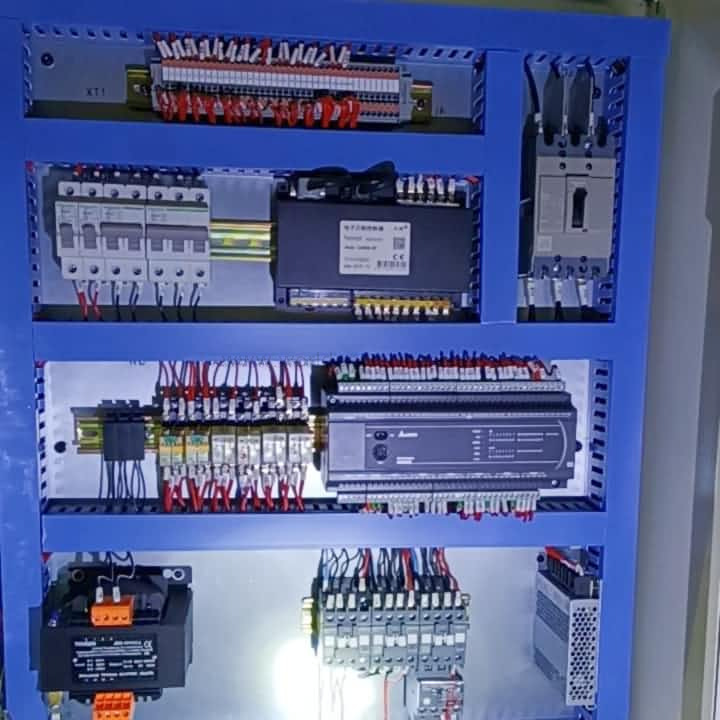

-PLC control (Delta/Mitsubishi)
-Pneumatic clutch and brake (OMPI)
-Overload protection pump (Showa/King Air/Auto power)
-Safety solenoid valve for clutch (Azbil)
-Thin oil lubricate pump
-Two-hand-button control panel with foot pedal
-Anti-vibration pads
-Inverter for adjustable stroke speeds
-Front side safety light barriers

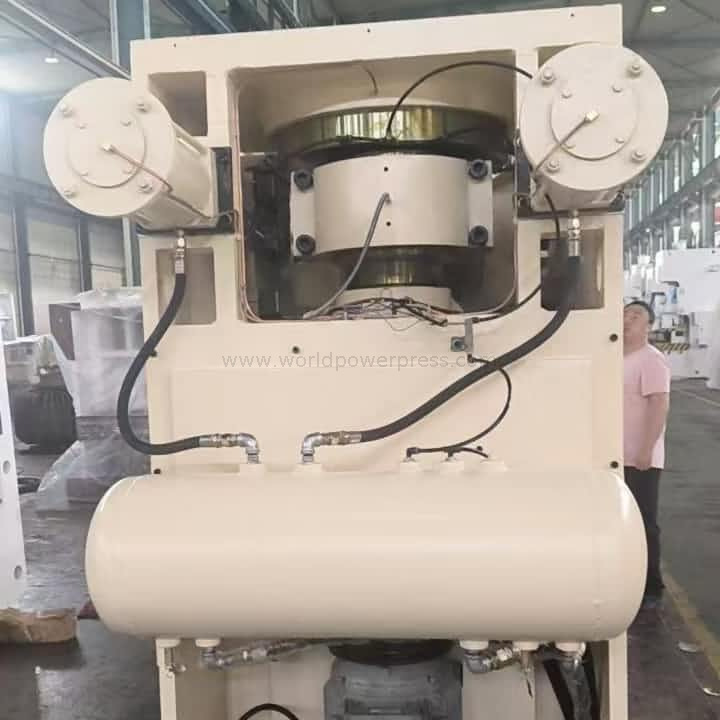

-Slide counterweight balance cylinder
-Slide height adjust motor with height indicator
-Cam controller
-Die cushion
-Hydraulic die clamps, die lifters
-Physical safety fence
| JH21-160L | ||||
| Capacity | kN | 1600 | ||
| Nominal Stroke | mm | 6 | ||
| Slide Stroke | mm | 16-160 | ||
| SPM | Fixed | min-1 | 40 | |
| Variable | min-1 | 35-50 | ||
| Max. Die Height | mm | 350 | ||
| Die Height Adjustment | mm | 110 | ||
| Throat Depth | mm | 380 | ||
| Between Columns | mm | 810 | ||
| Bolster | LR | mm | 1300 | |
| FB | mm | 740 | ||
| Thk | mm | 150 | ||
| Bolster Opening | mm | φ300×50 | ||
| (Up Hole Dia.×Dpth×Low Hole Dia.) | ×φ260 | |||
| Slide Area | LR | mm | 920 | |
| FB | mm | 580 | ||
| Shank Hole | Dia. | mm | φ65 | |
| Dpth | mm | 85 | ||
| Main Motor Power | kW | 15 | ||
| Dimensions | FB | mm | 2250 | |
| LR | mm | 1600 | ||
| H | mm | 3800 | ||
| Net Weight | kg | 14500 | ||
-8 faces ram guide rails, higher precision
-C frame steel welded body
-stroke lenght is manually adjustable: 16/44/81/114/138/155/160mm
-PLC control, dry type clutch
-PLC control (Delta/Mitsubishi)
-Pneumatic clutch and brake (OMPI)
-Overload protection pump (Showa/King Air/Auto power)
-Safety solenoid valve for clutch (Azbil)
-Thin oil lubricate pump
-Two-hand-button control panel with foot pedal
-Anti-vibration pads
-Inverter for adjustable stroke speeds
-Front side safety light barriers
-Slide counterweight balance cylinder
-Slide height adjust motor with height indicator
-Cam controller
-Die cushion
-Hydraulic die clamps, die lifters
-Physical safety fence
| JH21-160L | ||||
| Capacity | kN | 1600 | ||
| Nominal Stroke | mm | 6 | ||
| Slide Stroke | mm | 16-160 | ||
| SPM | Fixed | min-1 | 40 | |
| Variable | min-1 | 35-50 | ||
| Max. Die Height | mm | 350 | ||
| Die Height Adjustment | mm | 110 | ||
| Throat Depth | mm | 380 | ||
| Between Columns | mm | 810 | ||
| Bolster | LR | mm | 1300 | |
| FB | mm | 740 | ||
| Thk | mm | 150 | ||
| Bolster Opening | mm | φ300×50 | ||
| (Up Hole Dia.×Dpth×Low Hole Dia.) | ×φ260 | |||
| Slide Area | LR | mm | 920 | |
| FB | mm | 580 | ||
| Shank Hole | Dia. | mm | φ65 | |
| Dpth | mm | 85 | ||
| Main Motor Power | kW | 15 | ||
| Dimensions | FB | mm | 2250 | |
| LR | mm | 1600 | ||
| H | mm | 3800 | ||
| Net Weight | kg | 14500 | ||
