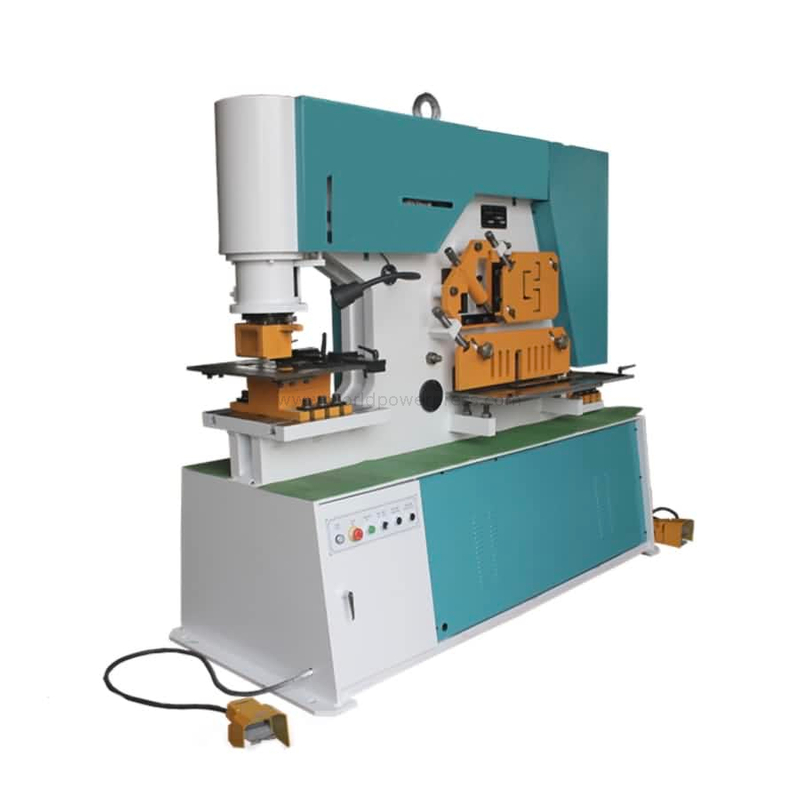

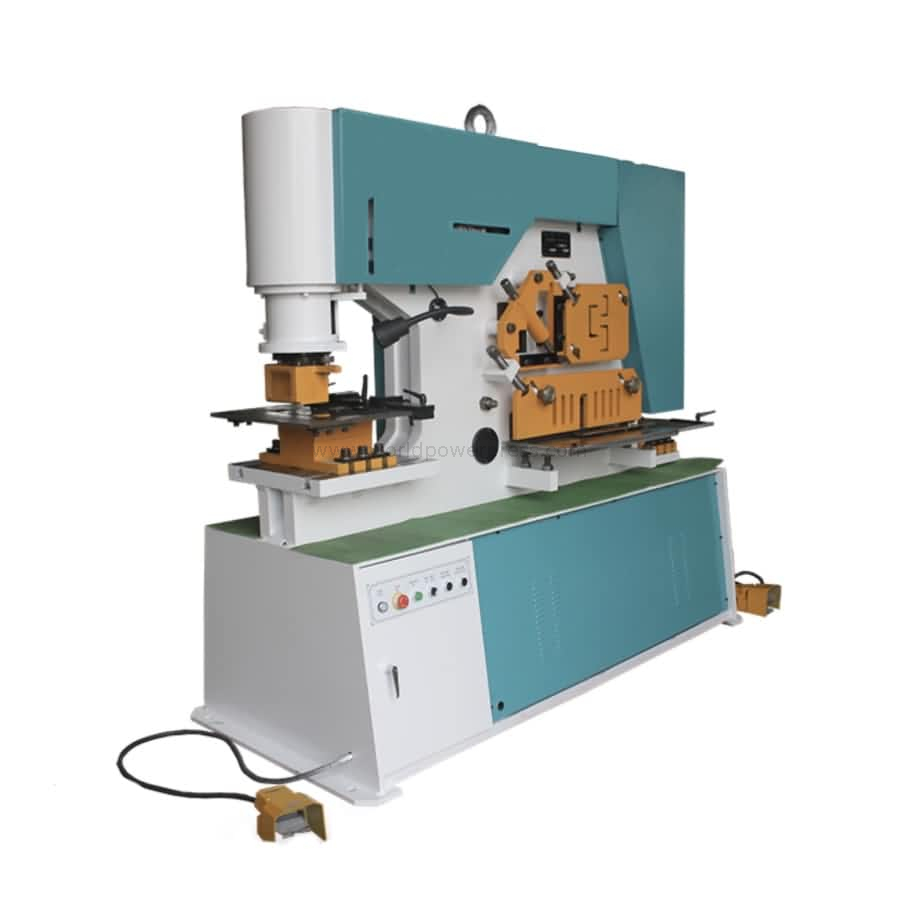

Q35Y-30
-Max. Punching thickness: 30mm
-Punching tonnage: 160ton
-Max. Plate cutting thickness x length: 30x330mm/20x600mm
-Max. Nothcing thickness: 16mm
| Model No. | Q35Y-30 |
| Punching pressure(Ton) | 160 |
| Max.shearing thickness of steel plates (mm) | 30 |
| Strength of steel plates (N/mm2) | ≤450 |
| Angle of shearing | 8° |
| Shearing sizes of one stroke(mm/W×H) | 30×330 |
| 20×600 | |
| Ram stroke (mm) | 80 |
| Number of stroke (times/minute) | 8~22 |
| Depth of throat (mm) | 600 |
| Punching thickness (mm) | 28 |
| Max.diameter of punching (mm) | 38 |
| Round steel (mm) | 65 |
| Square steel (mm) | 55×55 |
| 90° Shearing of equal-angle steel (mm) | 180×180×16 |
| 45° Shearing of equal-angle steel (mm) | 80×80×10 |
| H-beam (mm) | 175×175 |
| C-Channel (mm) | 280×86×11.5 |
| I-beam (mm) | 280×124×10.5 |
| Main motor power (kw) | 11 |
| Overall dimension (mm/L×W×H) | 2680×1060 |
| ×2380 |
-Max. Punching thickness: 30mm
-Punching tonnage: 160ton
-Max. Plate cutting thickness x length: 30x330mm/20x600mm
-Max. Nothcing thickness: 16mm
| Model No. | Q35Y-30 |
| Punching pressure(Ton) | 160 |
| Max.shearing thickness of steel plates (mm) | 30 |
| Strength of steel plates (N/mm2) | ≤450 |
| Angle of shearing | 8° |
| Shearing sizes of one stroke(mm/W×H) | 30×330 |
| 20×600 | |
| Ram stroke (mm) | 80 |
| Number of stroke (times/minute) | 8~22 |
| Depth of throat (mm) | 600 |
| Punching thickness (mm) | 28 |
| Max.diameter of punching (mm) | 38 |
| Round steel (mm) | 65 |
| Square steel (mm) | 55×55 |
| 90° Shearing of equal-angle steel (mm) | 180×180×16 |
| 45° Shearing of equal-angle steel (mm) | 80×80×10 |
| H-beam (mm) | 175×175 |
| C-Channel (mm) | 280×86×11.5 |
| I-beam (mm) | 280×124×10.5 |
| Main motor power (kw) | 11 |
| Overall dimension (mm/L×W×H) | 2680×1060 |
| ×2380 |
