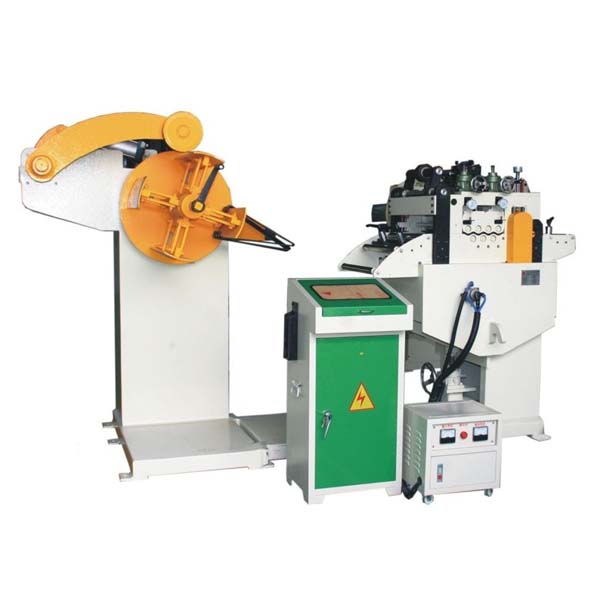

SNCF
| Item/Model | SNCF2-300 | SNCF2-400 | SNCF2-500 | TNCF2-600 |
| Width of Material(mm) | 75-300 | 75-400 | 75-500 | 75-600 |
| Thickness of Material(mm) | 0.3-2.3 | |||
| Max. Coil Weight(kg) | 2T | 3T | ||
| weight can be customized | ||||
| Coil L.D.(mm) | 508 | |||
| Max. Coil O.D.(mm) | 1200 | |||
| Max.Speed(m/min) | 16 | |||
| Feed Pitch Accuracy(mm) | ±0.15 | |||
| Feed ROLL | Upper1 / Lower1 | |||
| Straighten ROLL | Upper5 / Lower4 | |||
| Voltage | 380VAC / 60Hz | |||
| Air power supply | 5kg / CM² | |||
| Uncoiler Expansion | Hand wheel | |||
| Servo Motor(kw) | AC1.8 | AC2.9 | ||
| Uncoiler Motor(kw) | 1.5 KW | |||
| Pass line | ±60 MM | |||
| Item/Model | SNCF3-300 | SNCF3-400 | SNCF3-500 | SNCF3-600 |
| Width of Material(mm) | 75-300 | 75-400 | 75-500 | 75-600 |
| Thickness of Material(mm) | 0.4 - 3.2 | |||
| Max.coil Weight(kg) | 2T | 3T | ||
| Coil L.D.(mm) | 508 | |||
| Max.Coil O.D.(mm) | 1200 | |||
| Max.Speed(m/min) | 16 | |||
| Feed Pitch Accuracy(mm) | ±0.15 | |||
| Feed ROLL | Upper1 / Lower1 | |||
| Straighten ROLL | Upper5 / Lower4 | Upper4 / Lower3 | ||
| Voltage | 380VAC / 60Hz | |||
| Air power supply | 5kg / CM² | |||
| Uncoiler Expansion | Hand wheel | |||
| Servo Motor(kw) | AC1.8 | AC2.9 | ||
| Uncoiler Motor(kw) | 1.5 KW | |||
| Pass line | ±60 MM | |||
| Item/Model | SNCF2-300 | SNCF2-400 | SNCF2-500 | TNCF2-600 |
| Width of Material(mm) | 75-300 | 75-400 | 75-500 | 75-600 |
| Thickness of Material(mm) | 0.3-2.3 | |||
| Max. Coil Weight(kg) | 2T | 3T | ||
| weight can be customized | ||||
| Coil L.D.(mm) | 508 | |||
| Max. Coil O.D.(mm) | 1200 | |||
| Max.Speed(m/min) | 16 | |||
| Feed Pitch Accuracy(mm) | ±0.15 | |||
| Feed ROLL | Upper1 / Lower1 | |||
| Straighten ROLL | Upper5 / Lower4 | |||
| Voltage | 380VAC / 60Hz | |||
| Air power supply | 5kg / CM² | |||
| Uncoiler Expansion | Hand wheel | |||
| Servo Motor(kw) | AC1.8 | AC2.9 | ||
| Uncoiler Motor(kw) | 1.5 KW | |||
| Pass line | ±60 MM | |||
| Item/Model | SNCF3-300 | SNCF3-400 | SNCF3-500 | SNCF3-600 |
| Width of Material(mm) | 75-300 | 75-400 | 75-500 | 75-600 |
| Thickness of Material(mm) | 0.4 - 3.2 | |||
| Max.coil Weight(kg) | 2T | 3T | ||
| Coil L.D.(mm) | 508 | |||
| Max.Coil O.D.(mm) | 1200 | |||
| Max.Speed(m/min) | 16 | |||
| Feed Pitch Accuracy(mm) | ±0.15 | |||
| Feed ROLL | Upper1 / Lower1 | |||
| Straighten ROLL | Upper5 / Lower4 | Upper4 / Lower3 | ||
| Voltage | 380VAC / 60Hz | |||
| Air power supply | 5kg / CM² | |||
| Uncoiler Expansion | Hand wheel | |||
| Servo Motor(kw) | AC1.8 | AC2.9 | ||
| Uncoiler Motor(kw) | 1.5 KW | |||
| Pass line | ±60 MM | |||
