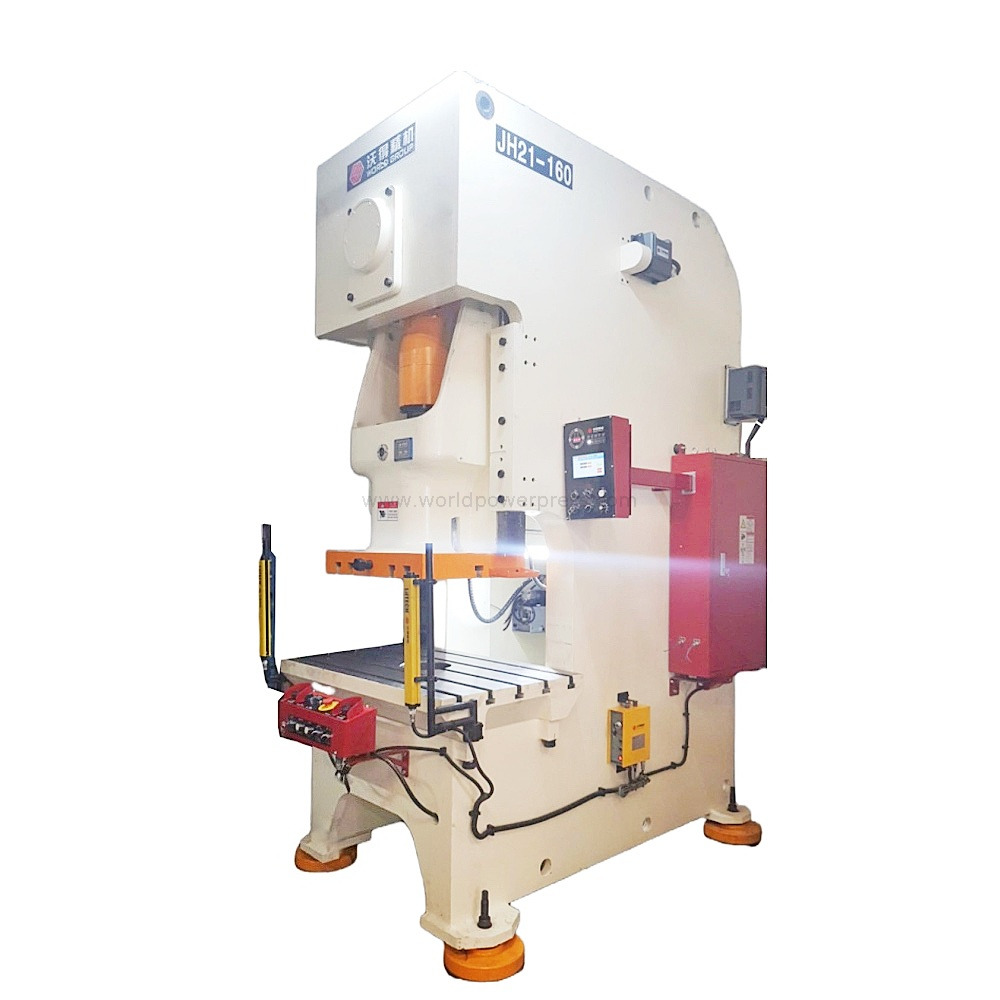

JH21-160
WORLD
- automatic press machine, can work with coil feeding line
- wet type pneumtaic clutch and brake, with safety solenoid valve
- hydraulic overload protection
- with mounting anti-vibration pads
- Gap frame steel plate weled body, anealing treatment for release stress
- PLC control with HMI and encoder
| ITEM | CODE | UNIT | JH21-160 | |
| Nominal Capacity | Pe | KN | 1600 | |
| Tonnage Point | mm | 6 | ||
| Slide Stroke Length | S | mm | 200 | |
| Slide Strokes | Fixed | spm | 45 | |
| Variable (optional) | spm | 30-45 | ||
| Max. Shut Height | H2 | mm | 400 | |
| Shut Height Adjustment | t | mm | 100 | |
| Throat Depth | C1 | mm | 400 | |
| Distance Between Columns | d1 | mm | 676 | |
| Slide Bottom Size | F-B | b | mm | 580 |
| L-R | a | mm | 700 | |
| Shank Hole Size | Diameter | d | mm | N/A |
| Depth | I | mm | N/A | |
| Table Size | F-B | D | mm | 760 |
| L-R | C | mm | 1175 | |
| Thickness | H3 | mm | 165 | |
| Table Hole Diameter | ¢ | mm | 220 | |
| Overall Dimensions | F-B | A | mm | 2305 |
| L-R | B | mm | 1420 | |
| Height | H | mm | 3215 | |
| Motor Power | KW | 15 | ||
| Weight (approximate) | kg | 11400 | ||
Combined pneumatic clutch and brake
PLC control
HMI with touch screen
Rotary encoder with cam controller
Dual-safety valve for clutch
Automatic lubricant grease pump
Overload protection system
Over-run safety device
Slide counter weight balance cylinder
Slide height adjust motor with die height indicator
Die cushion
Hydraulic die clamps and die lifters
Tonnage monitor
Safety light curtain
Motro speed drive (frequency inverter)
NC servo feeder and uncoiler
- automatic press machine, can work with coil feeding line
- wet type pneumtaic clutch and brake, with safety solenoid valve
- hydraulic overload protection
- with mounting anti-vibration pads
- Gap frame steel plate weled body, anealing treatment for release stress
- PLC control with HMI and encoder
| ITEM | CODE | UNIT | JH21-160 | |
| Nominal Capacity | Pe | KN | 1600 | |
| Tonnage Point | mm | 6 | ||
| Slide Stroke Length | S | mm | 200 | |
| Slide Strokes | Fixed | spm | 45 | |
| Variable (optional) | spm | 30-45 | ||
| Max. Shut Height | H2 | mm | 400 | |
| Shut Height Adjustment | t | mm | 100 | |
| Throat Depth | C1 | mm | 400 | |
| Distance Between Columns | d1 | mm | 676 | |
| Slide Bottom Size | F-B | b | mm | 580 |
| L-R | a | mm | 700 | |
| Shank Hole Size | Diameter | d | mm | N/A |
| Depth | I | mm | N/A | |
| Table Size | F-B | D | mm | 760 |
| L-R | C | mm | 1175 | |
| Thickness | H3 | mm | 165 | |
| Table Hole Diameter | ¢ | mm | 220 | |
| Overall Dimensions | F-B | A | mm | 2305 |
| L-R | B | mm | 1420 | |
| Height | H | mm | 3215 | |
| Motor Power | KW | 15 | ||
| Weight (approximate) | kg | 11400 | ||
Combined pneumatic clutch and brake
PLC control
HMI with touch screen
Rotary encoder with cam controller
Dual-safety valve for clutch
Automatic lubricant grease pump
Overload protection system
Over-run safety device
Slide counter weight balance cylinder
Slide height adjust motor with die height indicator
Die cushion
Hydraulic die clamps and die lifters
Tonnage monitor
Safety light curtain
Motro speed drive (frequency inverter)
NC servo feeder and uncoiler
