mechanical power 160 ton h frame press with pneumatic clutch

Share to:

mechanical power 160 ton h frame press with pneumatic clutch

Name: mechanical power 160 ton h frame press with pneumatic clutch
Brand: WORLD
Rating: 5.0 (91 reviews)

JW31-160 is a H frame punch press with 160ton tonnage capacity. Steel welded straight body provides higher precision and rigidity. Eight faces slide guide ribs. Lengthened bronze guide plates. Automatic grease lubrication. Hydraulic overload protection system. Automatic accessories are available. Such as metal strip uncoiler machine, leveling machine and feeding machine.

Availability:

Quantity:



Inquire Add to Basket

Model:
JW31-160
Brand:
WORLD

160 ton h frame mechanical power press

-PLC control

-Wet type oil bath cluth and brake

-automatic grease lubrication

-H frame mono-block type steel weled frame

JW31-160 is a H frame punch press. 160ton tonnage capacity. Steel welded straight body provides higher precision and rigidity. Eight faces slide guide ribs. Lengthened bronze guide plates. Automatic grease lubrication. Hydraulic overload protection system. Automatic accessories are available. Such as metal strip uncoiler machine, leveling machine and feeding machine.

Applications: hinge punching, door key punching, tin can punching, pot punching and drawing

Main parameters:

Model: JW31-160

Tonnage: 1600kN

Stroke length: 180mm

Stroke speed: 45spm

Table size: 1000x650mm

Main motor power: 15kw

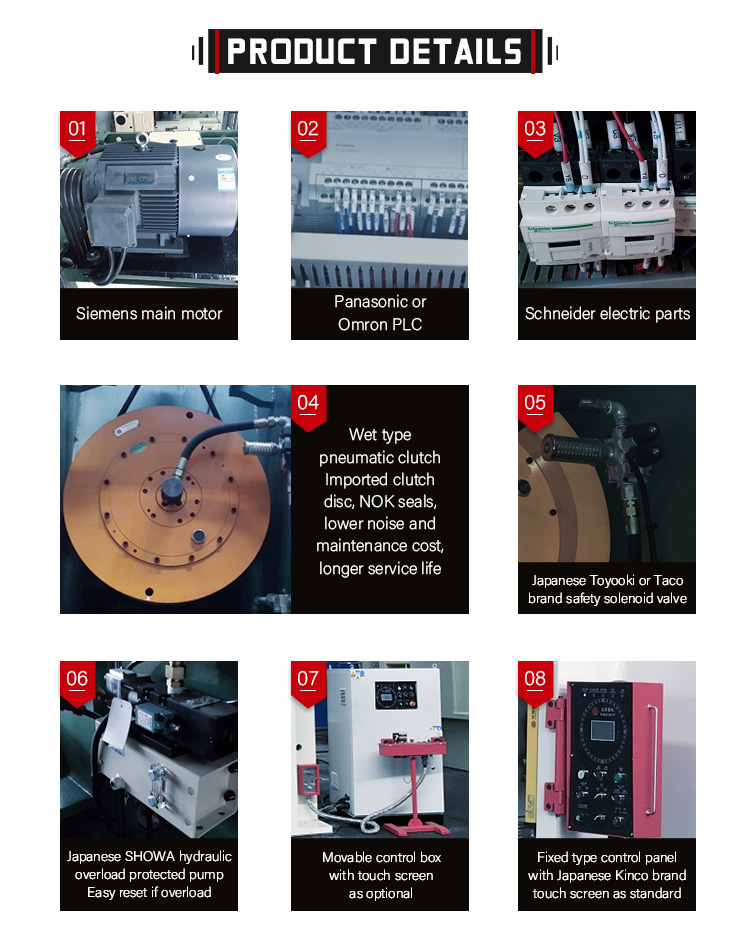

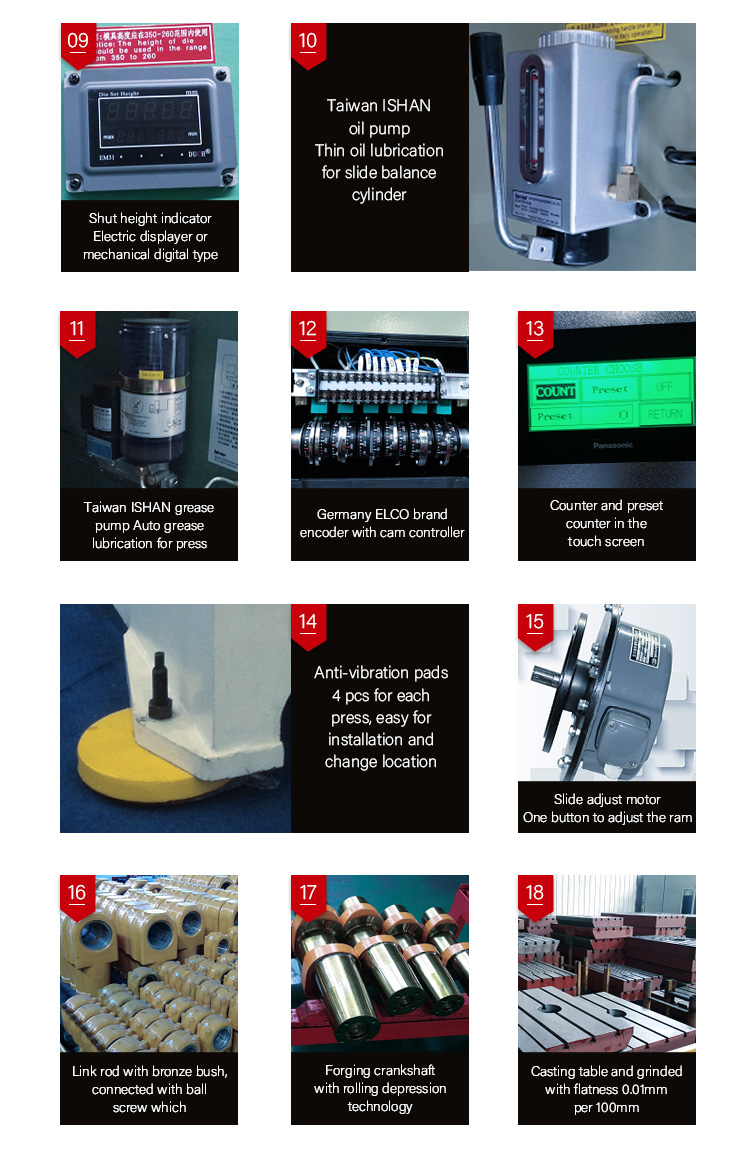

JW31-DETAILS-1 JW31-DETAILS-2

160 ton power press 160 ton mechanical press 160 ton h frame press mechanical power press mechanical h frame press 160 ton mechanical power press 160 ton pneumatic press h frame press h frame power press h frame pneumatic press

ITEM		CODE	UNIT	JW31-160
Nominal Capacity		Pe	KN	1600
Slide Stroke		s	mm	180
Rated Tonnage Point			mm	6
Slide Stroke Speed	Fixed	n	spm	45
Slide Stroke Speed	Variable (optional)	n	spm	35-55
Max.Die Shut Height		H2	mm	400
Die Shut Height Adjustment		t	mm	110
Side Window Size	F-B	E	mm	650
Side Window Size	Height	F	mm	350
Distance Between Uprights		G	mm	1100
Table Size	F-B	D	mm	650
	L-R	C	mm	1000
	Thickness	H3	mm	165
Table Hole Diameter			mm	180
Slide Bottom Size	F-B	b	mm	600
Slide Bottom Size	L-R	a	mm	750
Table Surface Height		H1	mm	900
Overall Dimensions	F-B	A	mm	2300
	L-R	B	mm	1820
	Height	H	mm	3710
Motor Power			KW	15
Air Pressure			Mpa	0.5
Weight (approximate)			kg	16000

ITEM		CODE	UNIT	JW31-160
Nominal Capacity		Pe	KN	1600
Slide Stroke		s	mm	180
Rated Tonnage Point			mm	6
Slide Stroke Speed	Fixed	n	spm	45
Slide Stroke Speed	Variable (optional)	n	spm	35-55
Max.Die Shut Height		H2	mm	400
Die Shut Height Adjustment		t	mm	110
Side Window Size	F-B	E	mm	650
Side Window Size	Height	F	mm	350
Distance Between Uprights		G	mm	1100
Table Size	F-B	D	mm	650
	L-R	C	mm	1000
	Thickness	H3	mm	165
Table Hole Diameter			mm	180
Slide Bottom Size	F-B	b	mm	600
Slide Bottom Size	L-R	a	mm	750
Table Surface Height		H1	mm	900
Overall Dimensions	F-B	A	mm	2300
	L-R	B	mm	1820
	Height	H	mm	3710
Motor Power			KW	15
Air Pressure			Mpa	0.5
Weight (approximate)			kg	16000
