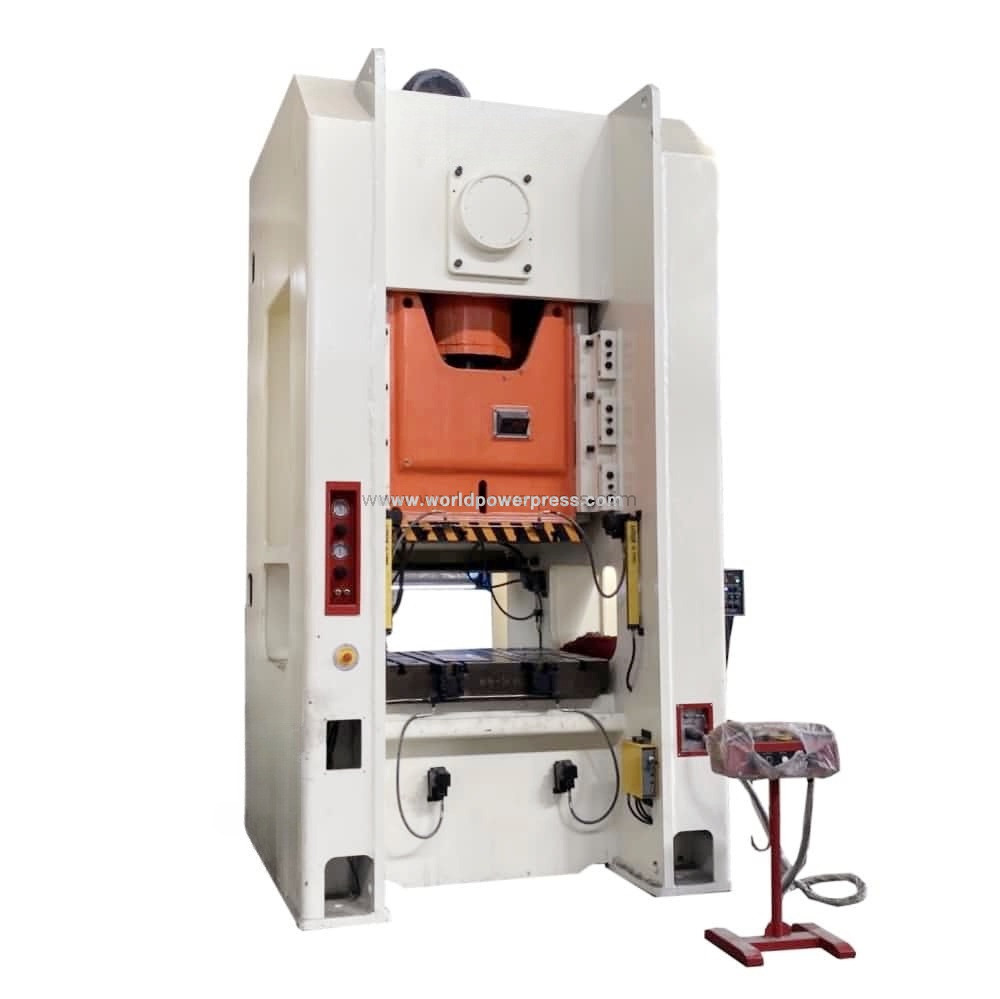

JW31-250
WORLD
-gantry type steel welded body
-eccentric crankshaft type power press
-PLC control with HMI, English control panel
-Wet type pneumatic clutch and brake, fricition discs are oil bath inside the flywheel.
-Safety solienoid valve to control the clutch
-Mechanical cam controller with rotary encoder
-With anti-vibration mounting pads
| ITEM | CODE | UNIT | JW31-250 | |
| Nominal Capacity | Pe | KN | 2500 | |
| Stroke Length | s | mm | 220 | |
| Slide Stroke Speeds | Fixed | n | spm | 30 |
| Variable (optional) | n | spm | 20-35 | |
| Max.Die Set Height | H2 | mm | 500 | |
| Die Set Height Adjustment | t | mm | 120 | |
| Side Window Size | F-B | E | mm | 800 |
| Height | F | mm | 430 | |
| Distance Between Uprights | G | mm | 1300 | |
| Table Size | F-B | D | mm | 800 |
| L-R | C | mm | 1200 | |
| Thickness | H3 | mm | 190 | |
| Table Hole Diameter | mm | 200 | ||
| Slide Bottom Size | F-B | b | mm | 750 |
| L-R | a | mm | 950 | |
| Table Surface Height | H1 | mm | 1080 | |
| Overall Dimensions | F-B | A | mm | 2480 |
| L-R | B | mm | 2200 | |
| Height | H | mm | 4560 | |
| Motor Power | KW | 22 | ||
| Weight (approximate) | kg | 27500 | ||
