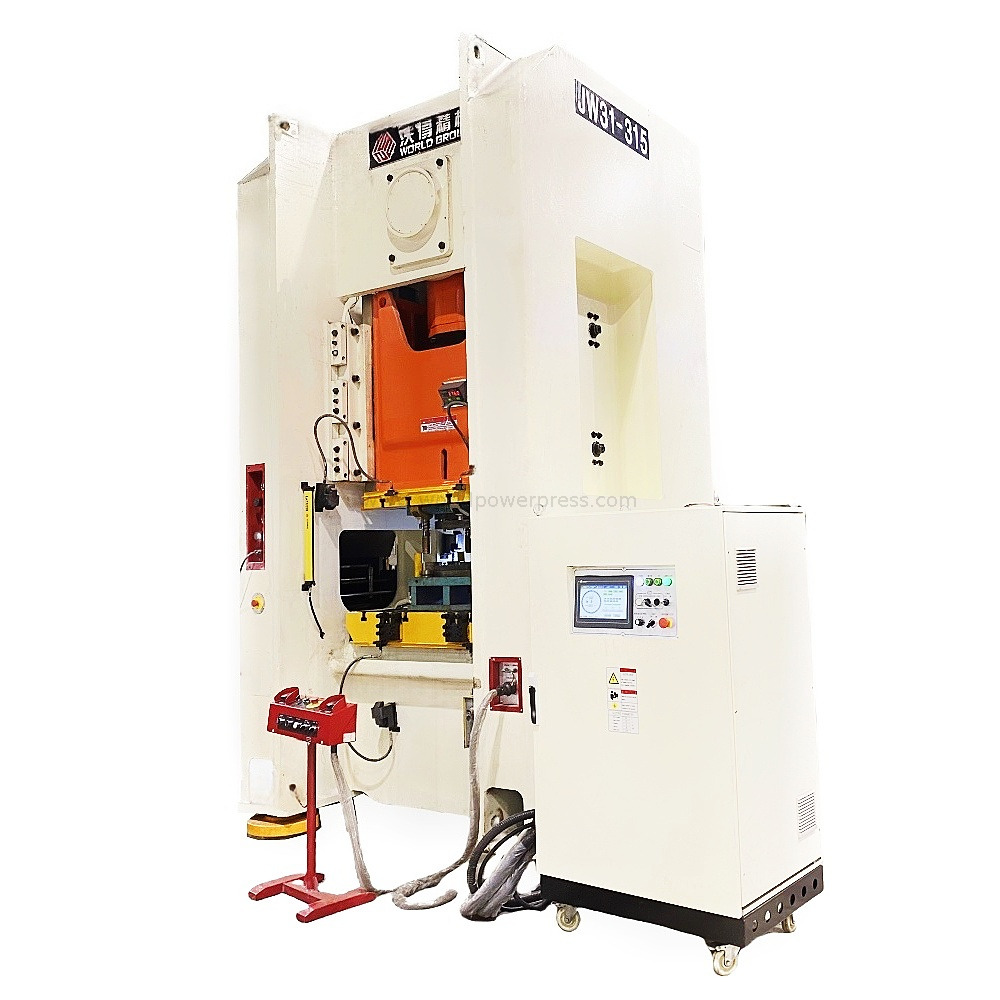

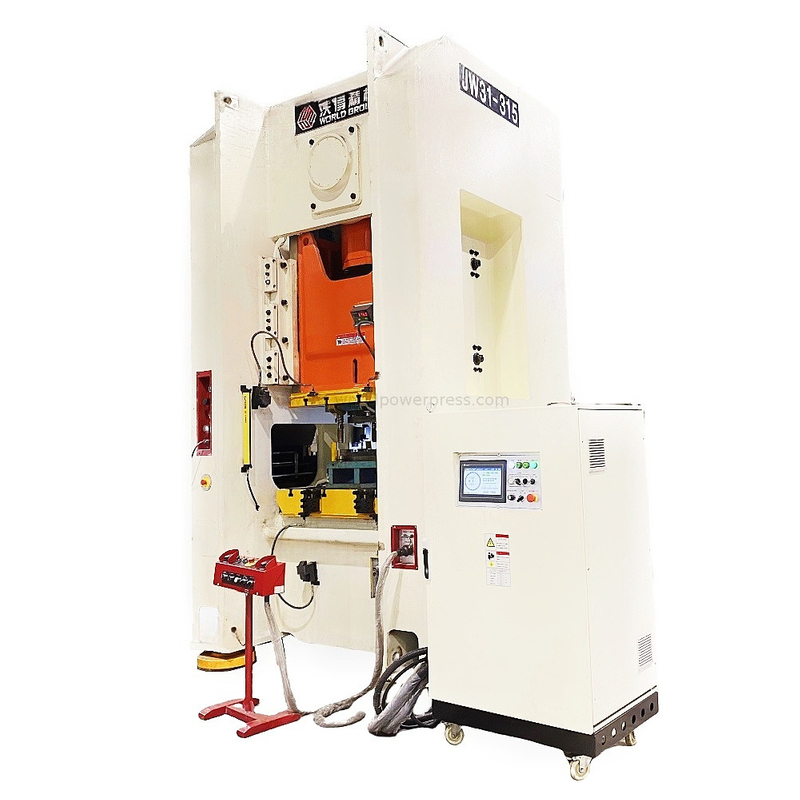

JW31-315
WORLD
1. Precision Straight-Side Frame
Engineered with a straight-side design to maximize rigidity and accuracy, ensuring consistent performance in high-precision stamping applications.
2. Intelligent PLC Control System
Equipped with PLC control and HMI interface, featuring an English version control panel for intuitive operation and seamless integration into automated production lines.
3. High-Performance Wet-Type Clutch & Brake
Wet-type pneumatic clutch and brake system with friction discs immersed in an oil bath within the flywheel, enhancing durability and reducing wear during continuous operation.
4. Enhanced Safety Mechanism
Safety solenoid valve for precise control of the clutch, ensuring reliable engagement and disengagement while prioritizing operator safety.
5. Precision Mechanical Cam Controller
Mechanical cam controller paired with a rotary encoder for accurate position detection and repeatable motion control, ideal for complex stamping sequences.
6. Vibration-Dampening Mounting
Anti-vibration mounting pads minimize machine oscillation, improving stability and extending component lifespan in high-speed production environments.
1. Extended Warranty & Free Parts
1-year warranty coverage with complimentary replacement parts during the warranty period, ensuring minimal downtime and cost-effective maintenance.
2. Pre-Assembled Shipment for Quick Deployment
Pre-assembled shipment minimizes on-site installation time, enabling rapid integration into production lines and reducing operational delays.
3. Automation-ready I/O Interface
Automation I/O available for seamless connectivity with robotic systems and PLC networks, facilitating advanced integration into smart manufacturing environments.
4. Full Installation & Training Support
Dedicated installation and training services provided by expert technicians, ensuring optimal machine setup and operator proficiency for efficient production.
5. Premium International-standard Electrical Components
High-quality electrical elements compliant with international standards, guaranteeing reliability, safety, and long-term performance in diverse industrial settings.
6. Decades of Manufacturing Expertise
Over 20 years of specialized experience in designing and producing precision stamping presses, backed by proven engineering excellence and industry-leading innovation.
PLC (Omron)
Pneumatic clutch and brake
Dual-safety solenoid valve for clutch
HMI with touch screen (English version)
Overload protection pneumatic pump with hydraulic system
Grease lubrication pump with distributor
Slide adjsut motor with die height indicator (accuracy 0.01mm)
Slide counterweight balance pneumatic cylinder
Automation user cams
Air-blow connector
Mis-feeding protection PLC input
Safety light curtains
Physical safety fence
Motor speed drive (frequency inverter for adjustable stroke speeds)
Thin-oli lubrication system
Die cushion
Quick die change device (die clamps, die lifters)
Tonnage monitor
NC servo feeder and uncoiler
Manipulator and transfer bars
| ITEM | CODE | UNIT | JW31-315 | |
| Nominal Capacity | Pe | KN | 3150 | |
| Slide Stroke | s | mm | 220 | |
| Slide Stroke Speed | Fixed | n | spm | 30 |
| Variable (optional) | n | spm | 20-35 | |
| Max.Die Shut Height | H2 | mm | 550 | |
| Die Shut Height Adjustment | t | mm | 120 | |
| Side Window Size | F-B | E | mm | 850 |
| Height | F | mm | 480 | |
| Distance Between Uprights | G | mm | 1350 | |
| Table Size | F-B | D | mm | 850 |
| L-R | C | mm | 1250 | |
| Thickness | H3 | mm | 190 | |
| Table Hole Diameter | mm | 220 | ||
| Slide Bottom Size | F-B | b | mm | 800 |
| L-R | a | mm | 1000 | |
| Table Surface Height | H1 | mm | 1215 | |
| Overall Dimensions | F-B | A | mm | 2600 |
| L-R | B | mm | 2200 | |
| Height | H | mm | 4550 | |
| Motor Power | KW | 30 | ||
| Weight (approximate) | kg | 28000 | ||
1. Precision Straight-Side Frame
Engineered with a straight-side design to maximize rigidity and accuracy, ensuring consistent performance in high-precision stamping applications.
2. Intelligent PLC Control System
Equipped with PLC control and HMI interface, featuring an English version control panel for intuitive operation and seamless integration into automated production lines.
3. High-Performance Wet-Type Clutch & Brake
Wet-type pneumatic clutch and brake system with friction discs immersed in an oil bath within the flywheel, enhancing durability and reducing wear during continuous operation.
4. Enhanced Safety Mechanism
Safety solenoid valve for precise control of the clutch, ensuring reliable engagement and disengagement while prioritizing operator safety.
5. Precision Mechanical Cam Controller
Mechanical cam controller paired with a rotary encoder for accurate position detection and repeatable motion control, ideal for complex stamping sequences.
6. Vibration-Dampening Mounting
Anti-vibration mounting pads minimize machine oscillation, improving stability and extending component lifespan in high-speed production environments.
1. Extended Warranty & Free Parts
1-year warranty coverage with complimentary replacement parts during the warranty period, ensuring minimal downtime and cost-effective maintenance.
2. Pre-Assembled Shipment for Quick Deployment
Pre-assembled shipment minimizes on-site installation time, enabling rapid integration into production lines and reducing operational delays.
3. Automation-ready I/O Interface
Automation I/O available for seamless connectivity with robotic systems and PLC networks, facilitating advanced integration into smart manufacturing environments.
4. Full Installation & Training Support
Dedicated installation and training services provided by expert technicians, ensuring optimal machine setup and operator proficiency for efficient production.
5. Premium International-standard Electrical Components
High-quality electrical elements compliant with international standards, guaranteeing reliability, safety, and long-term performance in diverse industrial settings.
6. Decades of Manufacturing Expertise
Over 20 years of specialized experience in designing and producing precision stamping presses, backed by proven engineering excellence and industry-leading innovation.
PLC (Omron)
Pneumatic clutch and brake
Dual-safety solenoid valve for clutch
HMI with touch screen (English version)
Overload protection pneumatic pump with hydraulic system
Grease lubrication pump with distributor
Slide adjsut motor with die height indicator (accuracy 0.01mm)
Slide counterweight balance pneumatic cylinder
Automation user cams
Air-blow connector
Mis-feeding protection PLC input
Safety light curtains
Physical safety fence
Motor speed drive (frequency inverter for adjustable stroke speeds)
Thin-oli lubrication system
Die cushion
Quick die change device (die clamps, die lifters)
Tonnage monitor
NC servo feeder and uncoiler
Manipulator and transfer bars
| ITEM | CODE | UNIT | JW31-315 | |
| Nominal Capacity | Pe | KN | 3150 | |
| Slide Stroke | s | mm | 220 | |
| Slide Stroke Speed | Fixed | n | spm | 30 |
| Variable (optional) | n | spm | 20-35 | |
| Max.Die Shut Height | H2 | mm | 550 | |
| Die Shut Height Adjustment | t | mm | 120 | |
| Side Window Size | F-B | E | mm | 850 |
| Height | F | mm | 480 | |
| Distance Between Uprights | G | mm | 1350 | |
| Table Size | F-B | D | mm | 850 |
| L-R | C | mm | 1250 | |
| Thickness | H3 | mm | 190 | |
| Table Hole Diameter | mm | 220 | ||
| Slide Bottom Size | F-B | b | mm | 800 |
| L-R | a | mm | 1000 | |
| Table Surface Height | H1 | mm | 1215 | |
| Overall Dimensions | F-B | A | mm | 2600 |
| L-R | B | mm | 2200 | |
| Height | H | mm | 4550 | |
| Motor Power | KW | 30 | ||
| Weight (approximate) | kg | 28000 | ||
