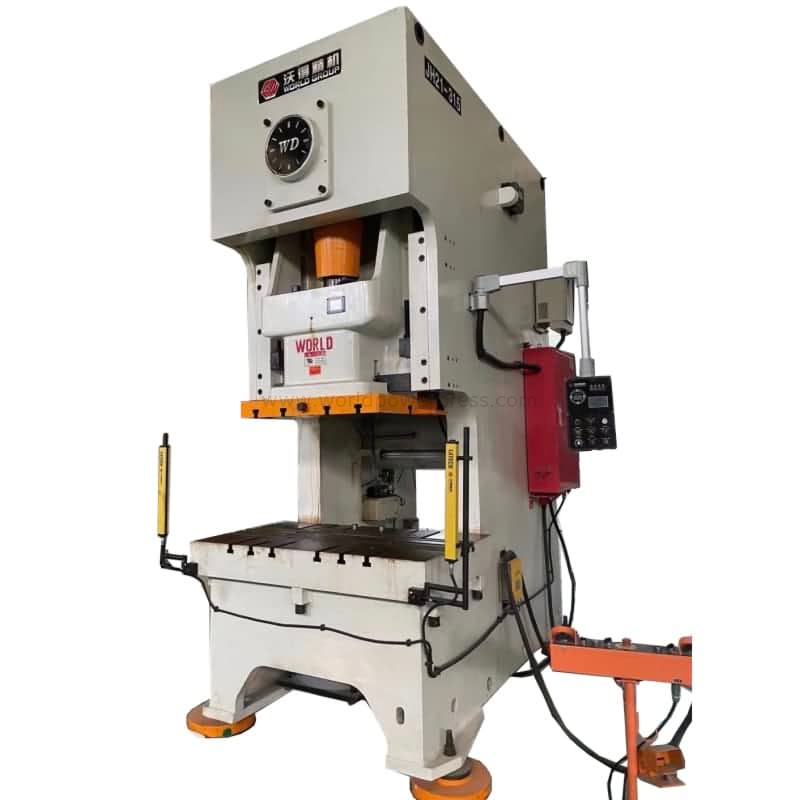

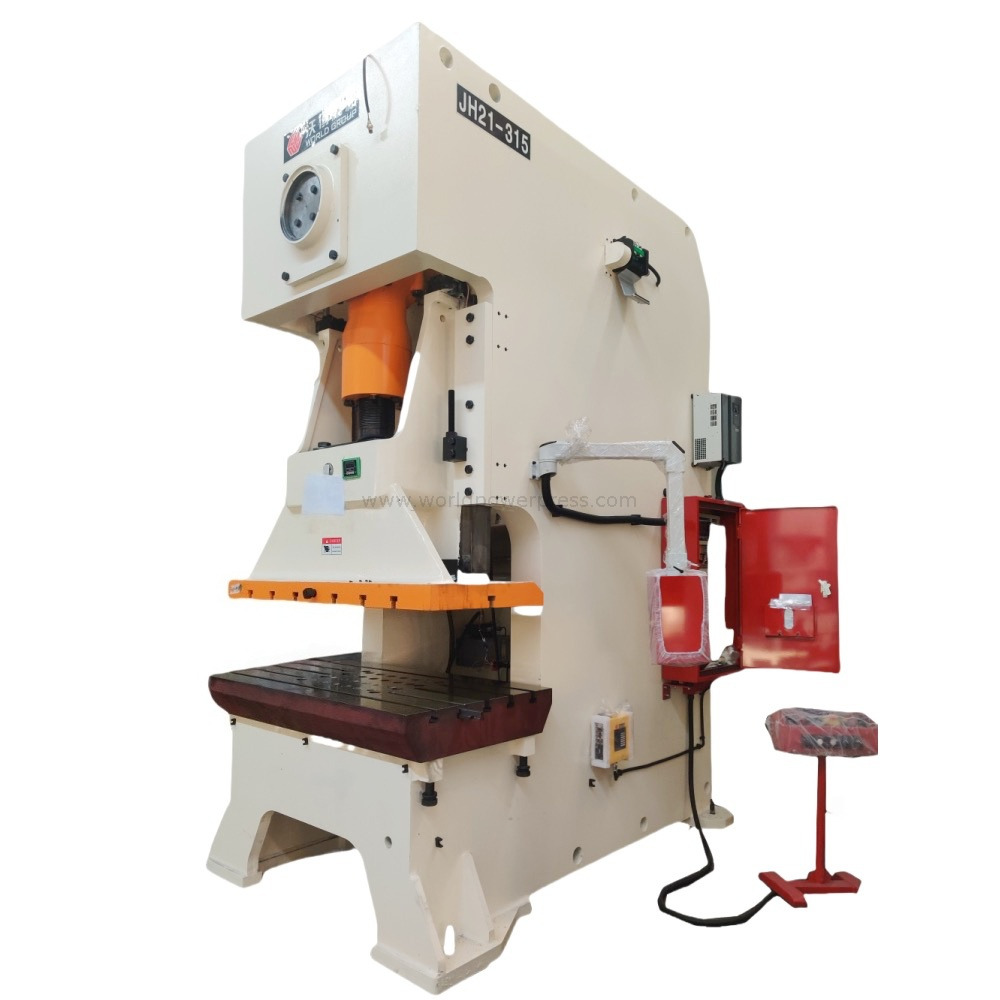

JH21-315
WORLD

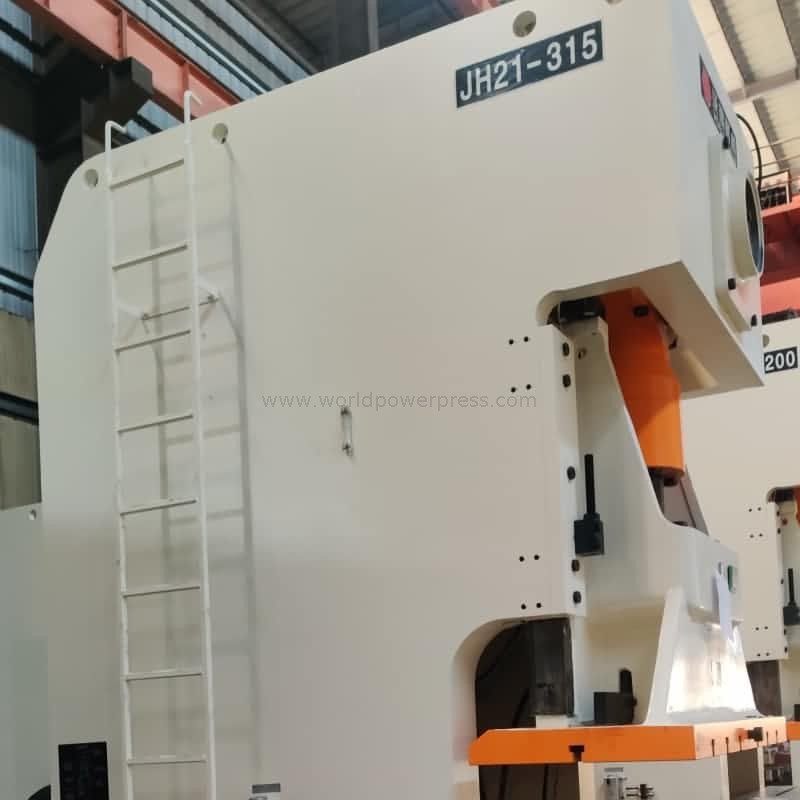

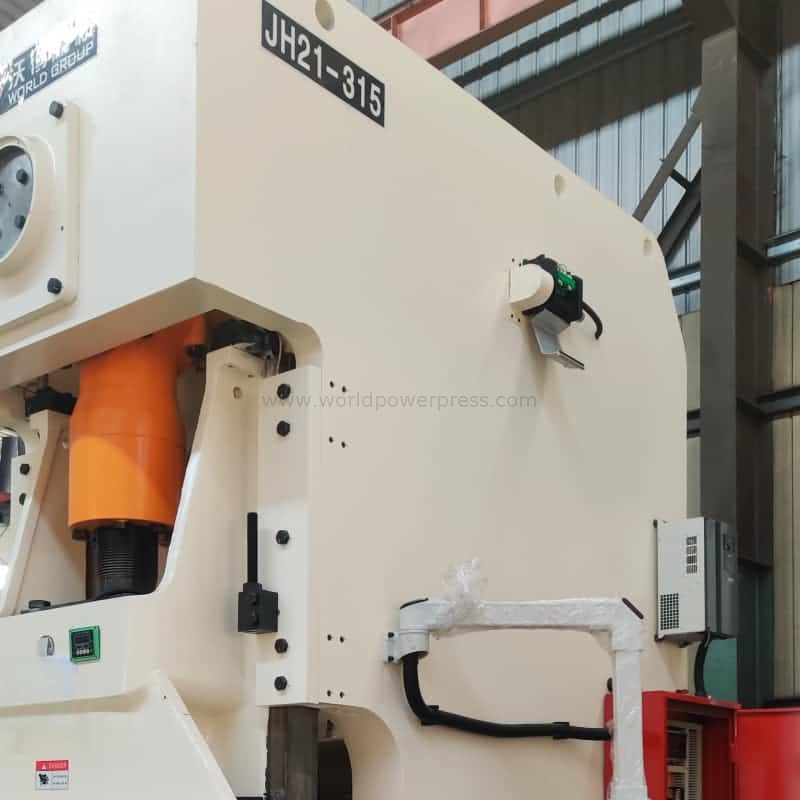

- C frame steel plate weled body, anealing treatment for release stress, high ridity

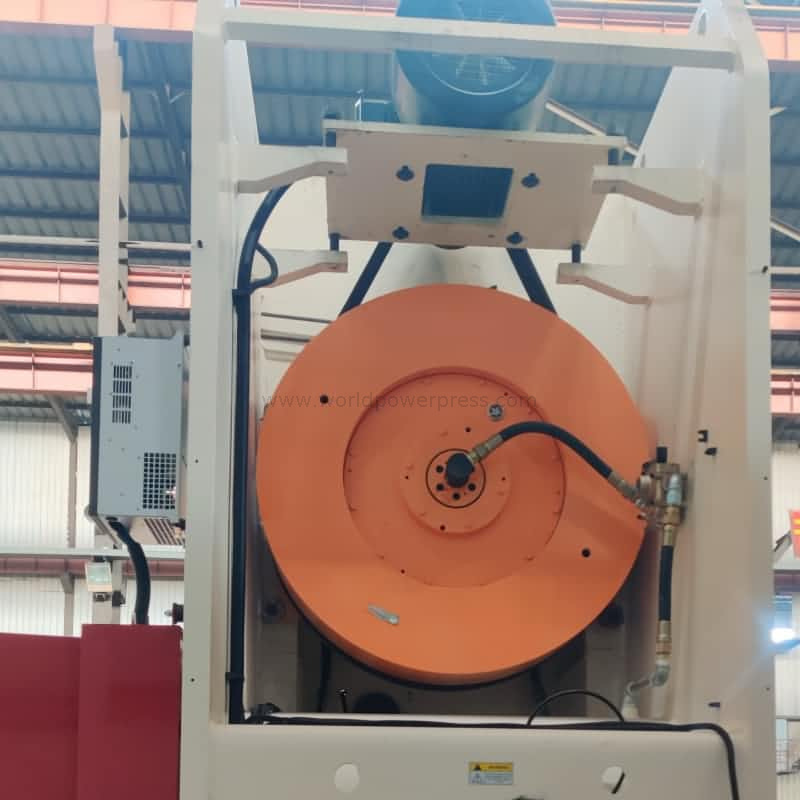

- World patent wet type pneumatic clutch and brake, lower noise, longer service life, easier maintenance

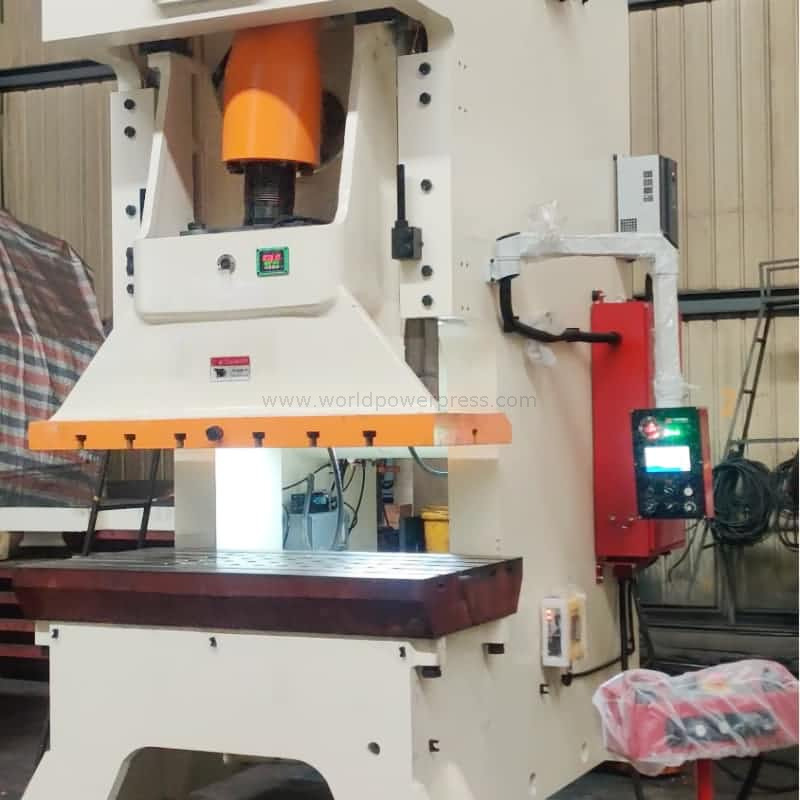

- PLC control, press can work as inches, single stroke and continuous strokes
- Automatic press, can work with coil feeding machines
| ITEM | CODE | UNIT | JH21-315 | |
| Nominal Capacity | Pe | KN | 3150 | |
| Slide Stroke Length | S | mm | 220 | |
| Slide Stroke Speed | Fixed | spm | 30 | |
| Variable (optional) | spm | 20-35 | ||
| Max. Die Height | H2 | mm | 500 | |
| Die Height Adjustment | t | mm | 120 | |
| Throat Depth | C1 | mm | 450 | |
| Distance Between Uprights | d1 | mm | 980 | |
| Slide Bottom Size | FB | b | mm | 700 |
| LR | a | mm | 950 | |
| Shank Hole Size | Diameter | d | mm | 70 |
| Depth | I | mm | 100 | |
| Table Size | FB | D | mm | 880 |
| LR | C | mm | 1540 | |
| Thickness | H3 | mm | 190 | |
| Table Hole Diameter | ¢ | mm | 240 | |
| Overall Dimensions | FB | A | mm | 2720 |
| LR | B | mm | 1680 | |
| Height | H | mm | 3850 | |
| Motor Power | KW | 30 | ||
| Weight (approximate) | kg | 24600 | ||
- C frame steel plate weled body, anealing treatment for release stress, high ridity
- World patent wet type pneumatic clutch and brake, lower noise, longer service life, easier maintenance
- PLC control, press can work as inches, single stroke and continuous strokes
- Automatic press, can work with coil feeding machines
| ITEM | CODE | UNIT | JH21-315 | |
| Nominal Capacity | Pe | KN | 3150 | |
| Slide Stroke Length | S | mm | 220 | |
| Slide Stroke Speed | Fixed | spm | 30 | |
| Variable (optional) | spm | 20-35 | ||
| Max. Die Height | H2 | mm | 500 | |
| Die Height Adjustment | t | mm | 120 | |
| Throat Depth | C1 | mm | 450 | |
| Distance Between Uprights | d1 | mm | 980 | |
| Slide Bottom Size | FB | b | mm | 700 |
| LR | a | mm | 950 | |
| Shank Hole Size | Diameter | d | mm | 70 |
| Depth | I | mm | 100 | |
| Table Size | FB | D | mm | 880 |
| LR | C | mm | 1540 | |
| Thickness | H3 | mm | 190 | |
| Table Hole Diameter | ¢ | mm | 240 | |
| Overall Dimensions | FB | A | mm | 2720 |
| LR | B | mm | 1680 | |
| Height | H | mm | 3850 | |
| Motor Power | KW | 30 | ||
| Weight (approximate) | kg | 24600 | ||
