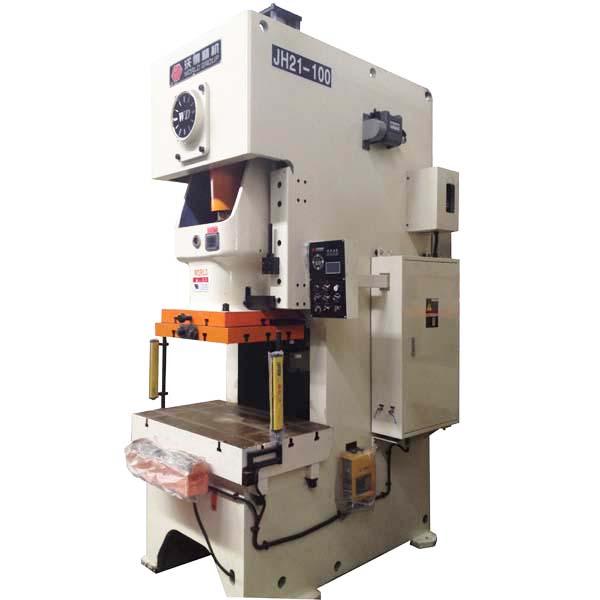

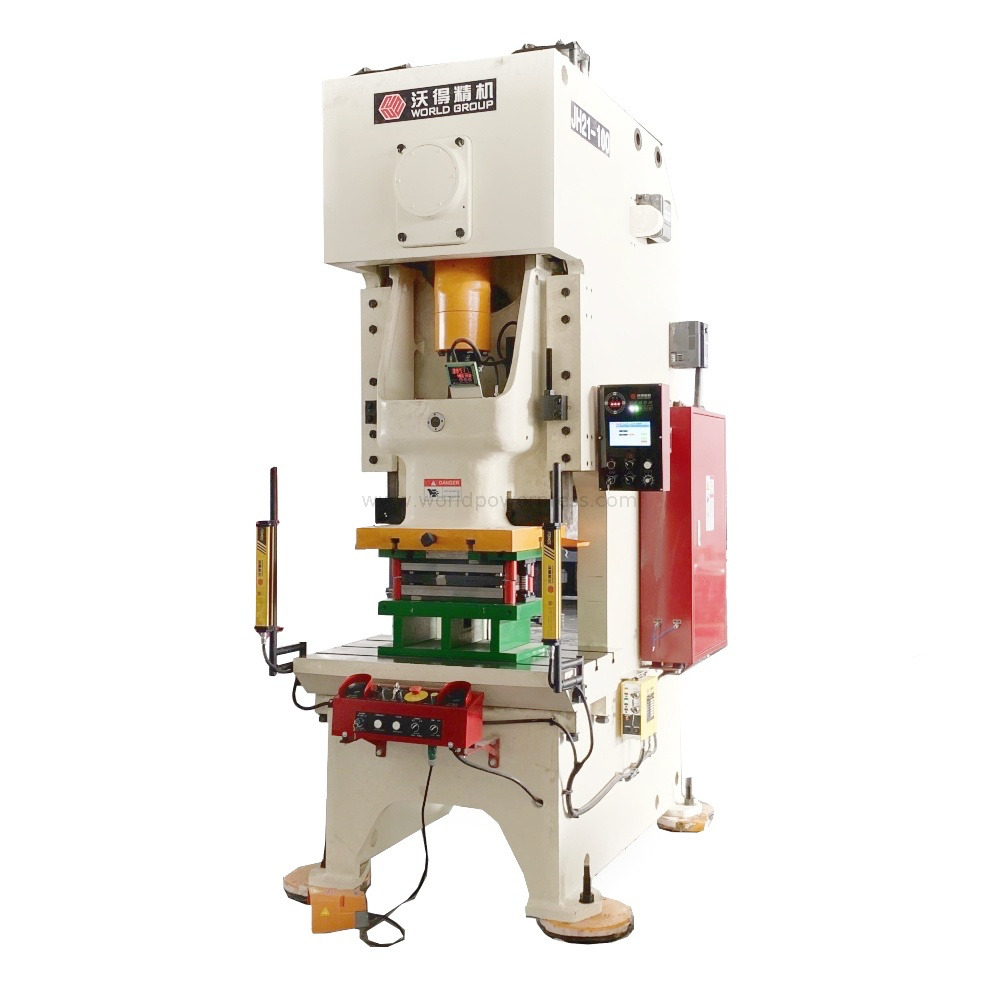

100t Crank Type C Frame Press with Pneumatic Clutch

JH21-100 is a 100ton crank type c frame pneumatic press with plc control. This crank press adopts a combined pneumatic clutch and brake. The clutch friction discs are oil bath inside the flywheel. This type clutch has advantages as lower noise, lower working temperature and easy maintenance. Others convenient operation equipment are standard equipped: hydraulic overload protection system, automatic grease lubrication system and motorized slide adjustment system.

Model: JH21-100

Tonnage capacity: 100ton (1000kN)

Stroke length: 160mm

Rated tonnage point: 5mm

Stroke speed: 55spm

Working table size: 1060x640mm

Ram plate size: 620x520mm

Shut height: 245-335mm

Motor power: 7.5kw

Machine weight: 8650kg
