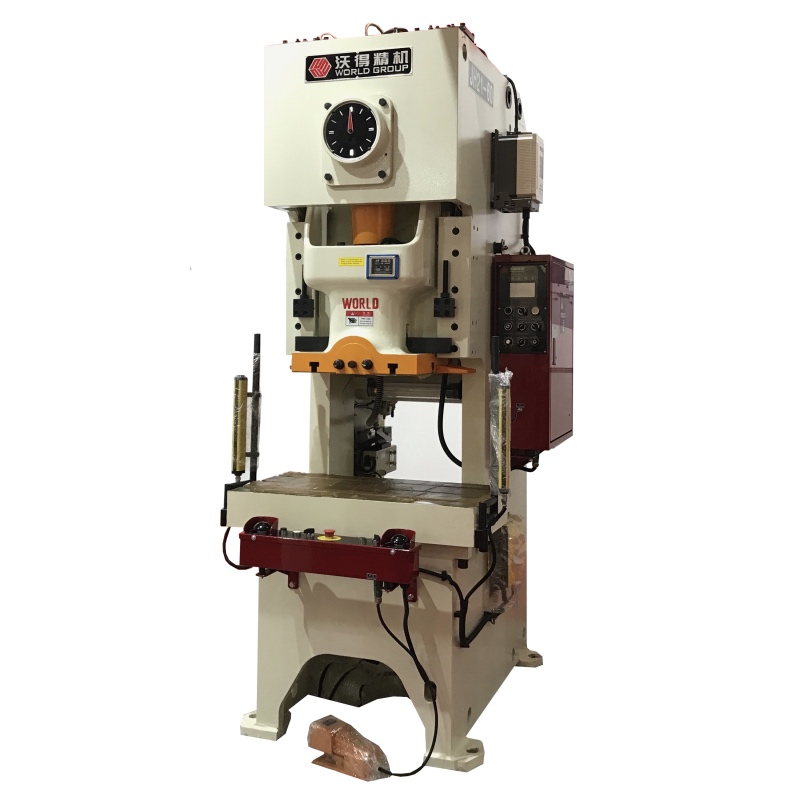

60ton C Frame Punch Press with Pneumatic Clutch

60ton c frame punch press adopts a wet type pneumatic clutch. This punch press is suitable for small metal parts punching, cutting and bending. It is easy for maintenance as the press has a central automatic lubrication system. Press working status and faults alarms are monitored on the touch screen. Hydraulic overload protection system helps the operator to reset the press by a switch if overload.

Applications: electric parts punching, furniture guides punching, washer punching, bracket punching.

Parameters:

Model No.: JH21-60

Stroke length: 140mm

Stroke speed: 70 times per minute

Table size: 930x520mm

Slide plate size: 480x400mm

Max. Die shut height: 300mm

Slide adjustment: 70mm

Main motor power: 5.5kw

Standard accessories:

-PLC control

-Console with touch screen

-Two-hand-button control panel

-Combined pneumatic clutch and brake

-Dual safety valve for clutch

-Slide weight balance device

-Slide height adjust motor with digital indicator

-Overload protection system (one switch reset)

-Central grease lubricant system

-Mounting pads (anti-vibration)

Optional accessories:

-Front side safety light curtain

-Inverter for adjustable stroke speeds

-Die cushion under the table

-Coil automatic feeder

-Decoiler and straightener

-Quick die change device

Custom items:

-Press body color

-Power voltage

-T slots layout on table and slide

-Table size

-Stroke length

-Shut height
