JH21-80
WORLD

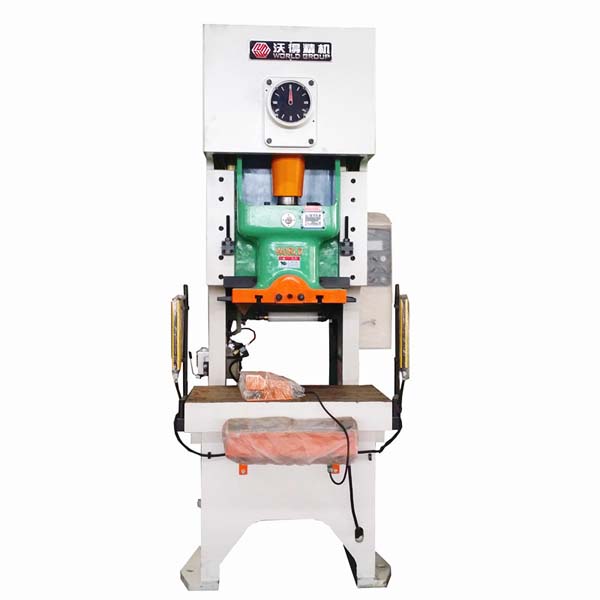

JH21-80 is a 80ton gap frame pneumatic press with PLC control. This press is suitable for small metal parts piercing, blanking, trimming and forming process. The 80ton press can work with servo NC strip feeder to act as an automatic stamping press line for higher efficiency. Standard safety devices such as hydraulic overload protection pump, emergency stop button and clutch cover are all equipped. Safety light barriers and protective safety door are optional.
Press model number: JH21-80
Tonnage: 80ton
Rated tonnage point: 5mm
Stroke length: 160mm
Stroke speeds: 60spm as standard and 40-75spm adjustable as optional
Max. Shut height: 320mm
Shut height adjustment: 80mm
Working table size: 950x600mm
Ram plate size: 540x460mm
Main motor power: 7.5kw, 380V50HZ3Phase
Press gross weight: 6450kg
JH21-80 is a 80ton gap frame pneumatic press with PLC control. This press is suitable for small metal parts piercing, blanking, trimming and forming process. The 80ton press can work with servo NC strip feeder to act as an automatic stamping press line for higher efficiency. Standard safety devices such as hydraulic overload protection pump, emergency stop button and clutch cover are all equipped. Safety light barriers and protective safety door are optional.
Press model number: JH21-80
Tonnage: 80ton
Rated tonnage point: 5mm
Stroke length: 160mm
Stroke speeds: 60spm as standard and 40-75spm adjustable as optional
Max. Shut height: 320mm
Shut height adjustment: 80mm
Working table size: 950x600mm
Ram plate size: 540x460mm
Main motor power: 7.5kw, 380V50HZ3Phase
Press gross weight: 6450kg
