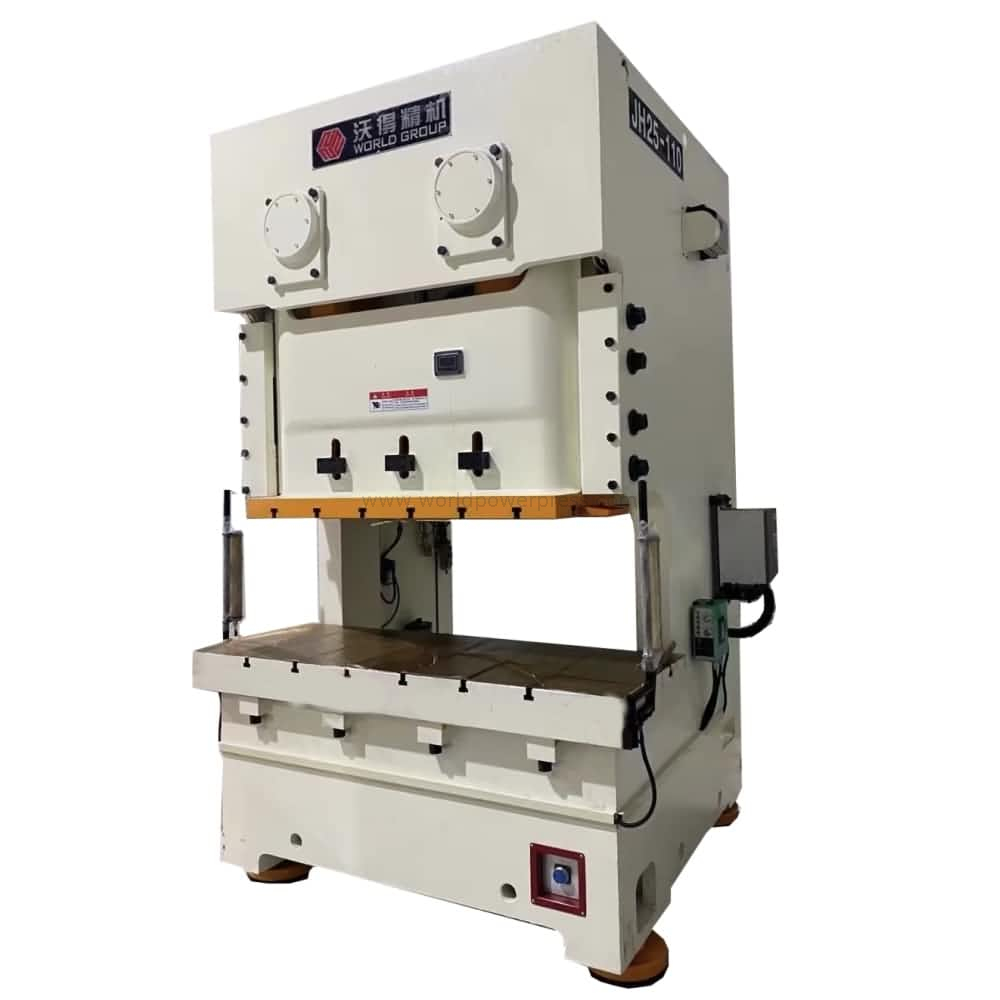

110ton c frame double points mechanical press

110ton double points mechanical press features

-Applicable for progressive die stamping

-Applicable for multi-station die stamping, such as battery house production

-C- type steel weled body

-Double crank, better load-deflection resistance capacity

-Suitable for progressive die stamping, such as furniture guide, hinge plates, chain plates, conjunction boxes

-Bolster size: 1880x680mm

-Slide plate size: 1400x520mm

-PLC control, wet type pneumatic clutch

-Automaitc grease lubrication

Standard equipment:

1. Pneumatic clutch and brake

2. Dual-safety solenoid valve for clutch

3. PLC control with HMI

4. Cam controller with rotary encoder

5. Slide adjust motor

6. Die height digital indicator

7. Slide counterweight balance cylinder

8. Overload proteciton pump

9. Grease lubrcation pump with distributor

10. Automationn I/O

11. Mis-feeding protection PLC input

12. Counter and pre-set counter

13. Anti-vibration pads

14. Hand-button control panel

15. Movable electric cabinet

16. Air-blow connector

Optional accessories:

1. Die cushion


2. Safety light barriers

3. Inverter for adustable stroke speeds (motor speed drive)

4. Quick die change device

5. Tonnage monitor

6. Uncoiler and servo roller feeder
