160ton Gap Frame Two Points Stamping Press Machine

Key Features of the 160Ton Stamping Press:‌

1. Robust Bolster Design‌

Large-size bolster ensures stability and precision, ideal for ‌progressive die stamping applications‌.

2. Durable Construction‌

Gap frame steel plate welded body‌ with optimized structural design, delivering exceptional ‌strength and rigidity‌ for heavy-duty operations.

3. Enhanced Precision Mechanism‌

Two-point power transmission system‌ minimizes deflection, ensuring consistent accuracy in high-volume production.

4. Advanced Control System‌

PLC-controlled operation‌ with ‌wet-type pneumatic clutch‌ for smooth engagement and disengagement, enhancing efficiency and safety.

5. Automated Maintenance‌

Automatic grease lubrication system‌ reduces downtime by ensuring continuous lubrication of critical components.

Standard equipment of press:

1. PLC (Omron)

2. HMI with touch screen (English version)

3. Pneumatic clutch and brake

4. Dual-safety solenoid valve for clutch

5. Overload protection pump

6. Over-run safety device

7. Grease lubrication pump with distributor

8. Cam controller with rotary encoder

9. Mis-feeding protection inputs

10. Slide counterweight balance cylinder

11. Slide height adjust motor

12. Die height digital indicator (0.01mm)

13. Movable electric cabinet

14. Anti-vibration pads

Optional equipment for press machines:

1. Die cushion

2. Safety light barriers at front side

3. Motor speed adjust drive (frequency inverter)


4. Foot pedal

5. Hydraulic die clamps and die lifters

6. Uncoiler and servo roller feeder

7. 3-axis transfer bar

8. Manipulator

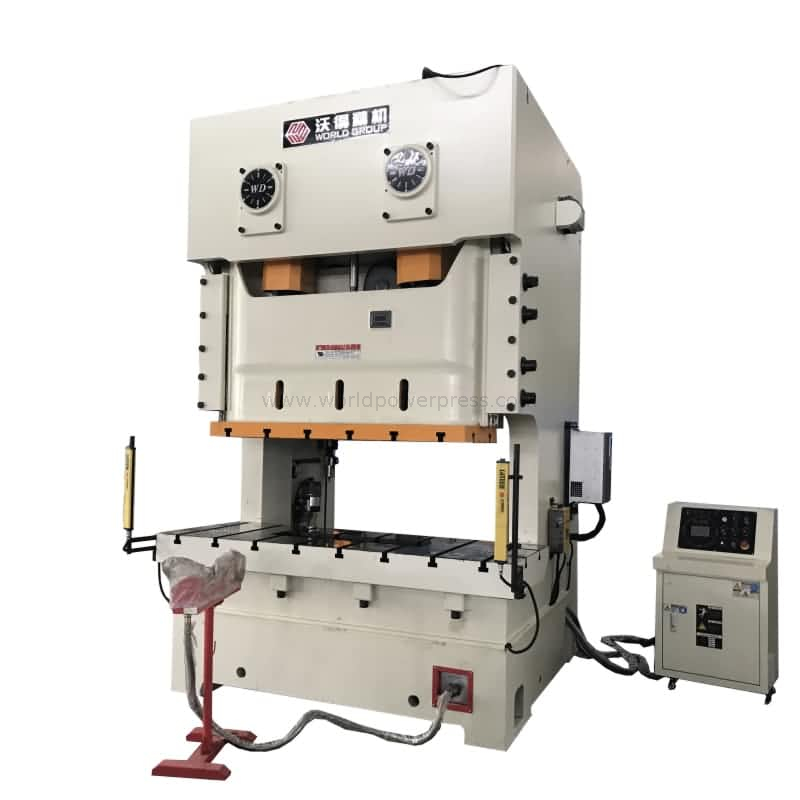

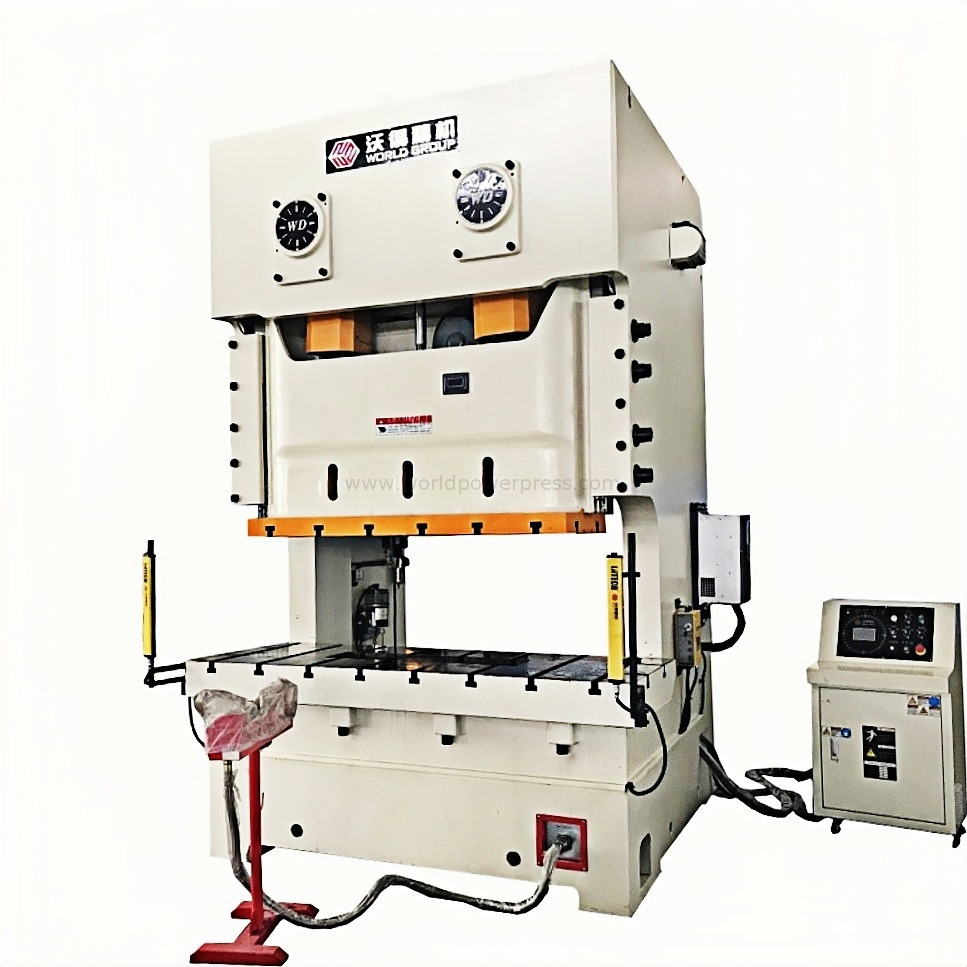

Details of the Double-Crank Press
