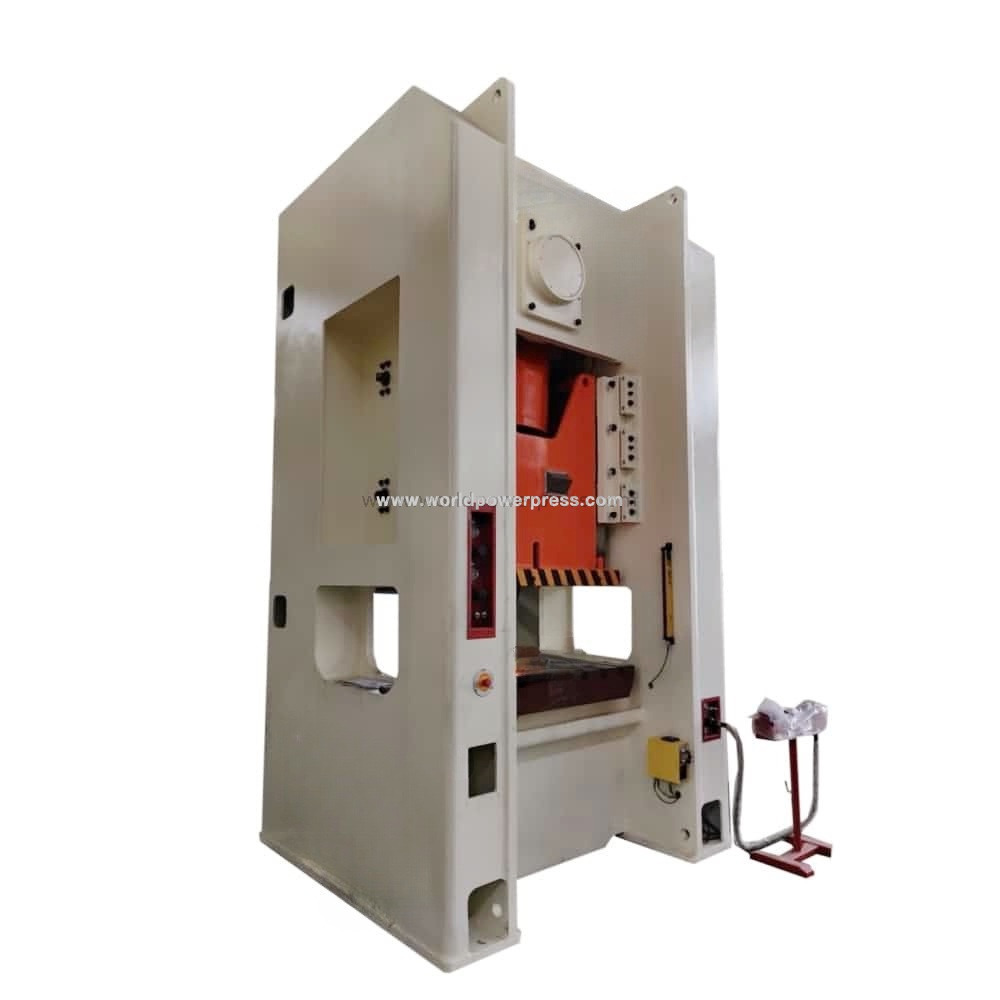

160ton Straight Side High Precision Punch Press

Main features:

JW31-160 is a H frame punch press. 160ton tonnage capacity. Steel welded straight body provides higher precision and rigidity. Eight faces slide guide ribs. Lengthened bronze guide plates. Automatic grease lubrication. Hydraulic overload protection system. Automatic accessories are available. Such as metal strip uncoiler machine, leveling machine and feeding machine.

Applications: hinge punching, door key punching, tin can punching, pot punching and drawing

Main parameters:

Model: JW31-160

Tonnage: 1600kN

Stroke length: 180mm

Stroke speed: 45spm

Max. Shut height: 400m

Slide adjust: 110mm

Table size: 1000x650mm

Slide area: 750x600mm

Side opening: 650x350mm

Main motor power: 15kw

Standard equipment list:

PLC control

HMI with touch screen (English version)

Movable electric cabinet

Movable T-stand control button

Overload protection system

Grease central lubrication system

Pneumatic clutch and brake

Dual safety solenoid valve for clutch

Slide height adjust motor with height indicator (precision 0.1mm)

Anti-vibration pads (4pcs)

Optional accessories:

Safety light curtain

Inverter for adjustable stroke speeds

Tonnage monitor

Quick die change device (die clamps, die lifters)

Servo feeder for coil feeding

Uncoiler and straightener

3 in 1 compact feeder

Die cushion

Servo system instead of clutch (servo motor direct drive)

Shipment information:

Package type: steel pallet

Loading: one unit in a 20ft open top container

HS Code: 84626290
