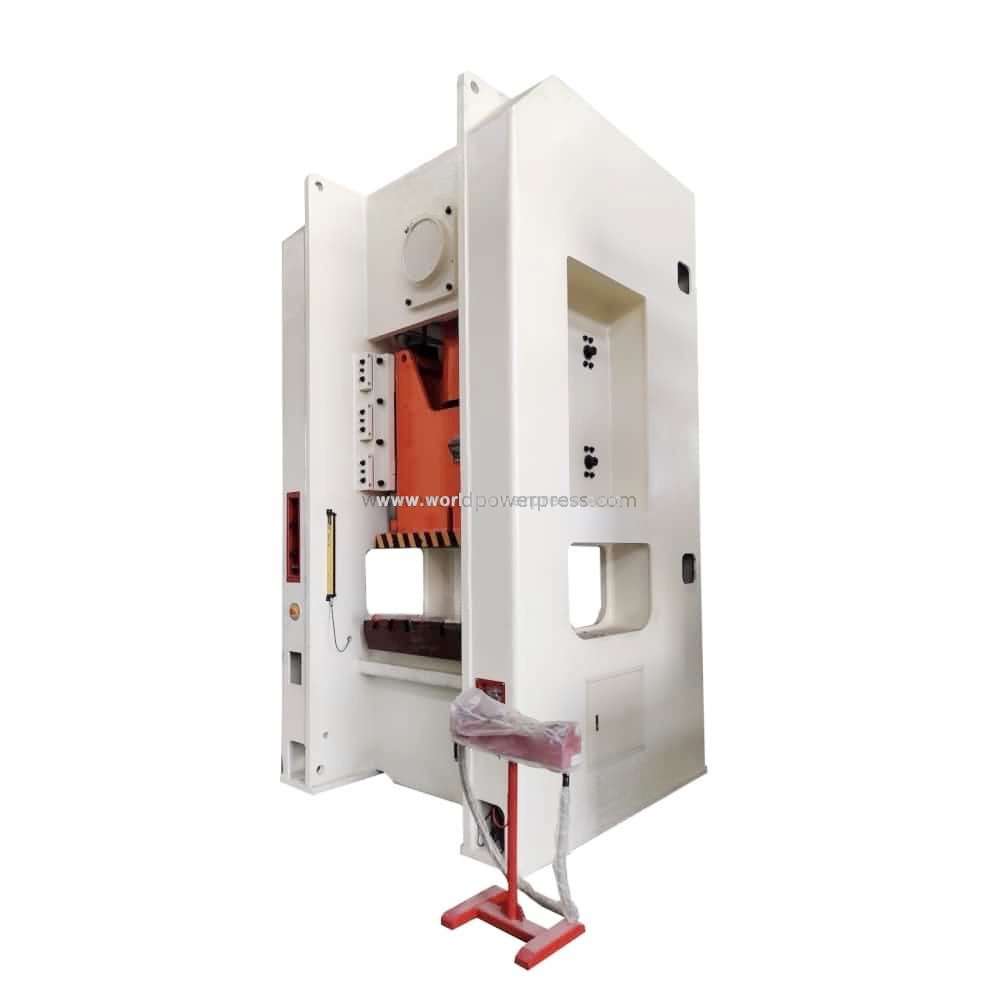

JW31-630
WORLD
-H frame steel welded mono block type body, high rigidity
-PLC control with HMI, English control panel
-Wet type pneumatic clutch and brake, fricition discs are oil bath inside the flywheel.
-Safety solienoid valve to control the clutch
-Mechanical cam controller with rotary encoder
-With anti-vibration mounting pads
| ITEM | CODE | UNIT | JW31-630 | |
| Nominal Capacity | Pe | KN | 6300 | |
| Slide Stroke | s | mm | 250 | |
| Stroke Speed | Fixed | n | spm | 20 |
| Variable (optional) | n | spm | 15-25 | |
| Max.Die Shut Height | H2 | mm | 650 | |
| Die Shut Height Adjustment | t | mm | 120 | |
| Side Window Size | F-B | E | mm | 1100 |
| Height | F | mm | 650 | |
| Distance Between Uprights | G | mm | 1800 | |
| Table Size | F-B | D | mm | 1200 |
| L-R | C | mm | 1700 | |
| Thickness | H3 | mm | 220 | |
| Table Hole Diameter | mm | 220 | ||
| Slide Bottom Size | F-B | b | mm | 1200 |
| L-R | a | mm | 1400 | |
| Table Surface Height | H1 | mm | 1400 | |
| Overall Dimensions | F-B | A | mm | 3340 |
| L-R | B | mm | 3000 | |
| Height | H | mm | 5550 | |
| Motor Power | KW | 75 | ||
| Weight (approximate) | kg | 75000 | ||
-H frame steel welded mono block type body, high rigidity
-PLC control with HMI, English control panel
-Wet type pneumatic clutch and brake, fricition discs are oil bath inside the flywheel.
-Safety solienoid valve to control the clutch
-Mechanical cam controller with rotary encoder
-With anti-vibration mounting pads
| ITEM | CODE | UNIT | JW31-630 | |
| Nominal Capacity | Pe | KN | 6300 | |
| Slide Stroke | s | mm | 250 | |
| Stroke Speed | Fixed | n | spm | 20 |
| Variable (optional) | n | spm | 15-25 | |
| Max.Die Shut Height | H2 | mm | 650 | |
| Die Shut Height Adjustment | t | mm | 120 | |
| Side Window Size | F-B | E | mm | 1100 |
| Height | F | mm | 650 | |
| Distance Between Uprights | G | mm | 1800 | |
| Table Size | F-B | D | mm | 1200 |
| L-R | C | mm | 1700 | |
| Thickness | H3 | mm | 220 | |
| Table Hole Diameter | mm | 220 | ||
| Slide Bottom Size | F-B | b | mm | 1200 |
| L-R | a | mm | 1400 | |
| Table Surface Height | H1 | mm | 1400 | |
| Overall Dimensions | F-B | A | mm | 3340 |
| L-R | B | mm | 3000 | |
| Height | H | mm | 5550 | |
| Motor Power | KW | 75 | ||
| Weight (approximate) | kg | 75000 | ||
