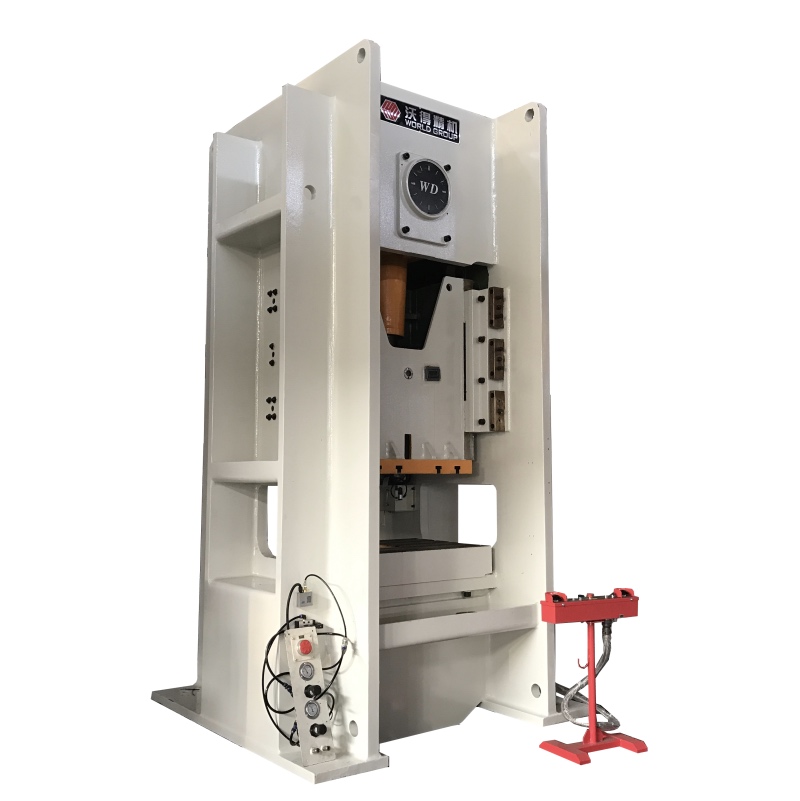

JW31-160 H Frame Single Crank Power Press 160 Ton

JW31-160 is a H type single crank press. This H type press adopts a combined wet type clutch-brake system. H type body is stronger. The slider is in the middle with 8 faces slide guides. So blanking and punching precision is much higher than conventional press. Press control systems include the PLC, encoder, cam controller and interface in English version.

Availability:

Quantity:



Inquire Add to Basket

Model:
JW31-160
Brand:
WORLD

JW31-160 single crank h frame power press

-H frame steel welded mono-block body

-Wet type pneumatic clutch and brake

-PLC control with HMI

-Hydraulic overload protected system

-Automaitc grease lubricationb system

Main Specifications of 160 ton h frame press

Crank press model: JW31-160

Press tonnage: 1600kN

Stroke length: 180mm

Stroke speed: 45spm

Max. Die shut height: 400mm

Slider adjustment: 110mm

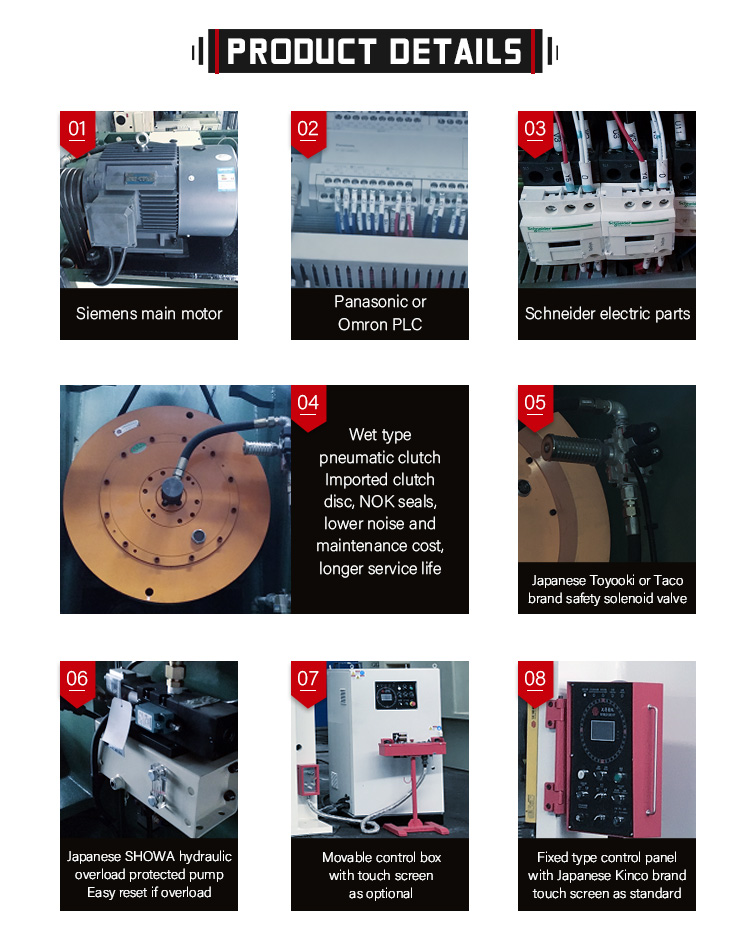

JW31-DETAILS-1 JW31-JW31 PRESS MORE MODELS

JW31 H Frame Single Crank Power Press power press 160 ton h frame power press JW31-160 power press 160 ton h frame press gap frame press 160ton 160 ton metal stamping press machine h frame press h frame press 160 ton single crank power press

ITEM		CODE	UNIT	JW31-160
Nominal Capacity		Pe	KN	1600
Slide Stroke		s	mm	180
Rated Tonnage Point			mm	6
Slide Stroke Speed	Fixed	n	spm	45
Slide Stroke Speed	Variable (optional)	n	spm	35-55
Max.Die Shut Height		H2	mm	400
Die Shut Height Adjustment		t	mm	110
Side Window Size	F-B	E	mm	650
Side Window Size	Height	F	mm	350
Distance Between Uprights		G	mm	1100
Table Size	F-B	D	mm	650
	L-R	C	mm	1000
	Thickness	H3	mm	165
Table Hole Diameter			mm	180
Slide Bottom Size	F-B	b	mm	600
Slide Bottom Size	L-R	a	mm	750
Table Surface Height		H1	mm	900
Overall Dimensions	F-B	A	mm	2300
	L-R	B	mm	1820
	Height	H	mm	3710
Motor Power			KW	15
Air Pressure			Mpa	0.5
Weight (approximate)			kg	16000

ITEM		CODE	UNIT	JW31-160
Nominal Capacity		Pe	KN	1600
Slide Stroke		s	mm	180
Rated Tonnage Point			mm	6
Slide Stroke Speed	Fixed	n	spm	45
Slide Stroke Speed	Variable (optional)	n	spm	35-55
Max.Die Shut Height		H2	mm	400
Die Shut Height Adjustment		t	mm	110
Side Window Size	F-B	E	mm	650
Side Window Size	Height	F	mm	350
Distance Between Uprights		G	mm	1100
Table Size	F-B	D	mm	650
	L-R	C	mm	1000
	Thickness	H3	mm	165
Table Hole Diameter			mm	180
Slide Bottom Size	F-B	b	mm	600
Slide Bottom Size	L-R	a	mm	750
Table Surface Height		H1	mm	900
Overall Dimensions	F-B	A	mm	2300
	L-R	B	mm	1820
	Height	H	mm	3710
Motor Power			KW	15
Air Pressure			Mpa	0.5
Weight (approximate)			kg	16000
