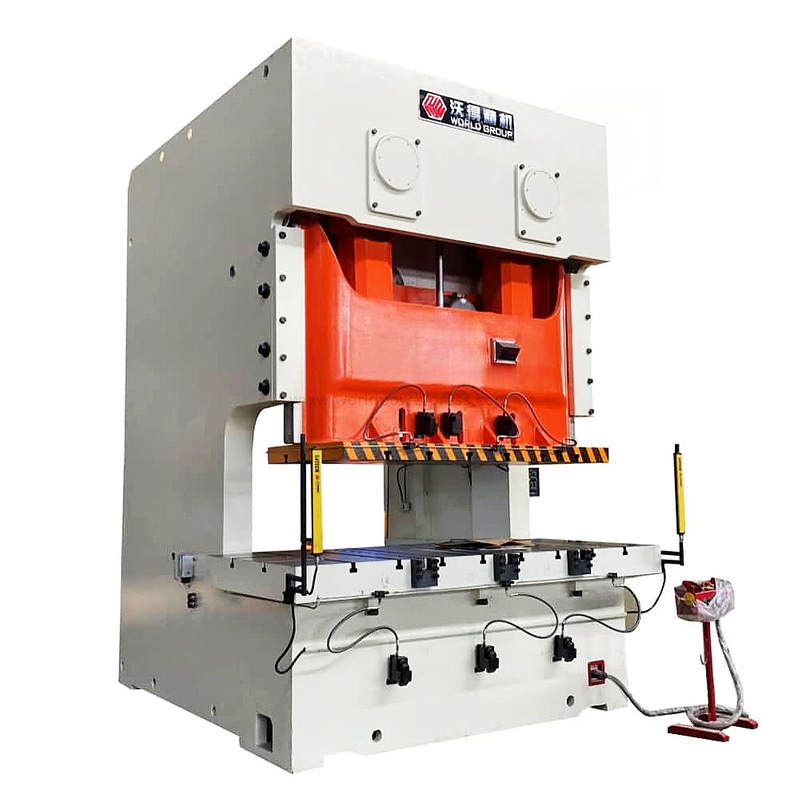

300ton Two Points Crank Type Gap Frame Power Press

300ton gap frame crank type press features

- Transmission big gears are grinder, low noise

- Six faces ram guides, high precision

- Customized table size and shut height

- Compact structure

- Gap frame steel weled body, annealing treatment for high rigidity

- PLC control with HMI, touch screen with setting and monitor function

- Wet type pneumatic clutch, easier maintenance and cleaner for finished stamping press

 -Double crankshafts cross located, two points smaller power deflection

- Wide bolster for progressive die stamping

- Automaitc grease lubrication, motorized ram adjustment

Standard configurations:

1. PLC

2. Dual-safety solenoid valve for clutch

3. Pneumatic clutch and brake

4. Automatic grease pump

5. Overload pump and hydraulic system

6. Slide counterweight balance cylinder

7. Slide adjust motor

8. Die height digital indicator

9. Air connectors

10. Mis-feeding protection inputs

11. T-stand control panel

12. Movable electric cabinet with touch screen

13. Isolation mounting pads

Options for press machines:

1. Safety light barriers

2. Physical safety fence or safety door

3. Quick die change device: die clamp, die lifter

4. Tonnage monitor

5. Coil feeding machines

6. Manipulator or robot

7. Die cushion

More details of the progressive stamping press:
